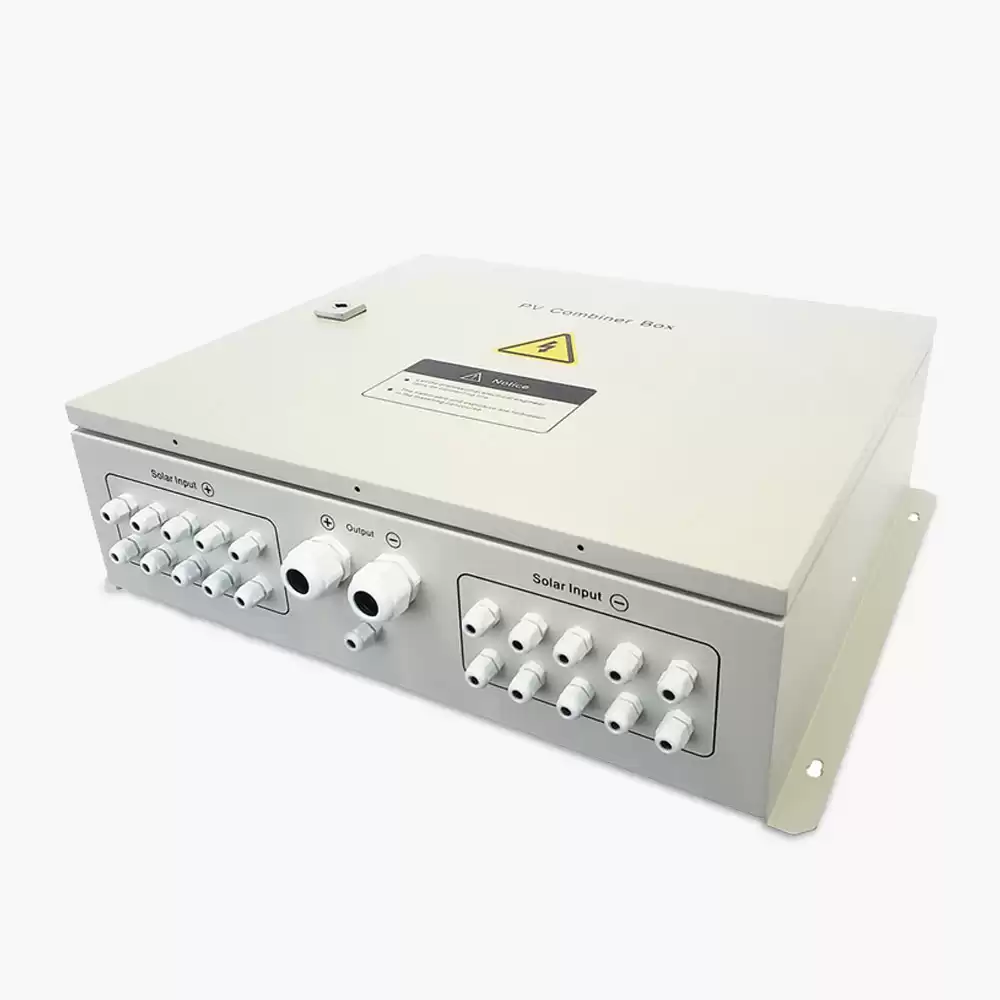

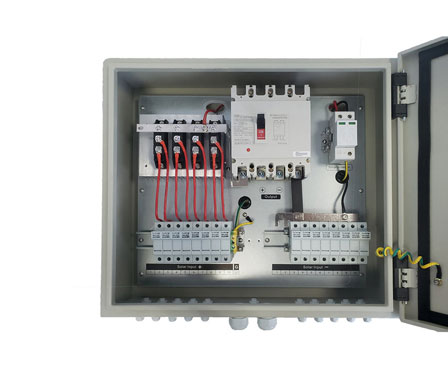

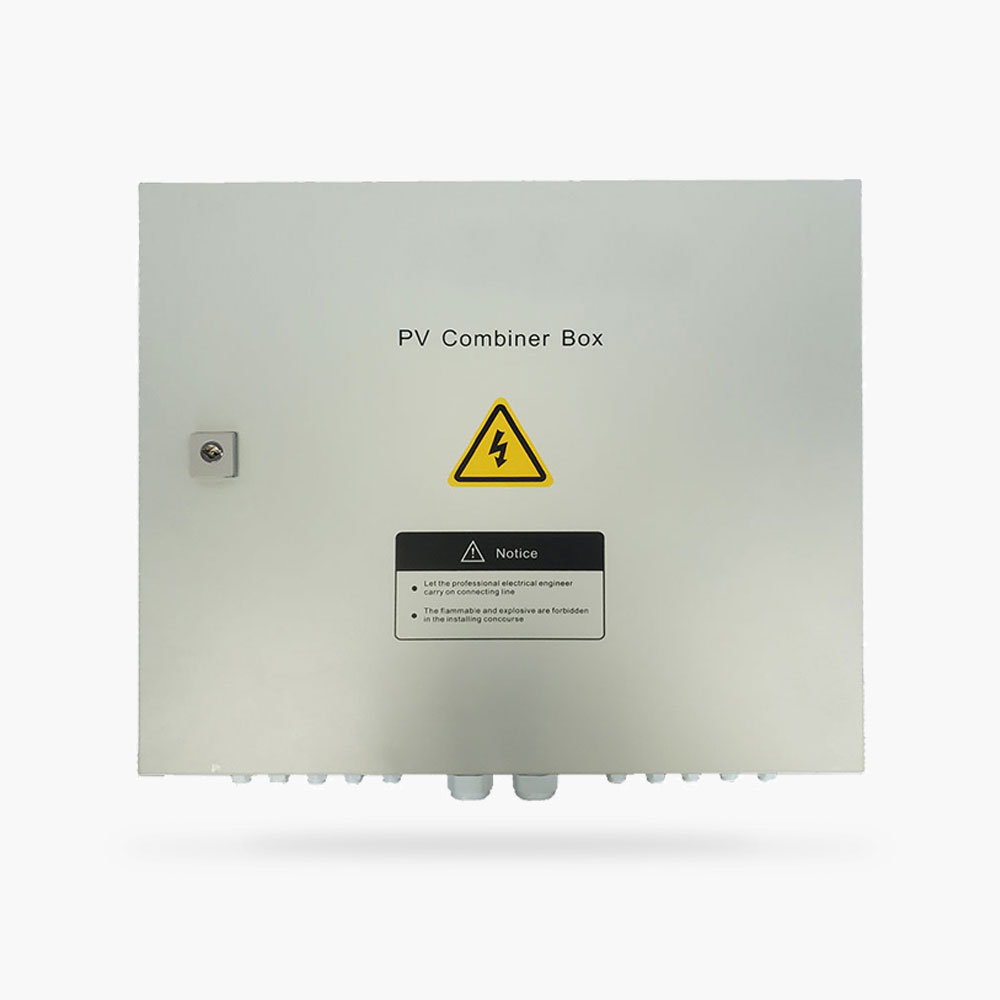

PV Array Combiner Box

With overall protection such as counterattack prevention over current protection, over voltage protection and lightning prevention, PV combiner boxes are used to reduce the connecting wires between a PV module and an inverter or controller, make maintenance easy, reduce the loss and improve product safety and reliability.

  • Communication(O)RS485
  • Self Consumption<14W
  • MountingWall-mount
  • Lightning ProtectionType II
  • CoolingNatural convection
  • Altitude2000m without derating
  • Humidity0-99%
  • Degree of ProtectionIP65
  • Operating Temperature-25°C~+55°C
  • Enclosure MaterialGalvanized steel
  • Dimension155 x 400 x 300mm
Facebook Twitter Pinterest LinkedIn 分享






Manin Features

• Flexible design,2-16 inputs optional
• Wide range of DC input voltage, maximum input voltage up to 1500VDC
• Specific PV fuse, both positive and negative terminal
• Lightning protection
• String monitoring function optional
• RS485 communication optional
• IP65 environment compatibility for outdoor application





PV combiner Box Meet Certifications And Application standard

RoHs, TUV, UL, CE and ISO
