Overview

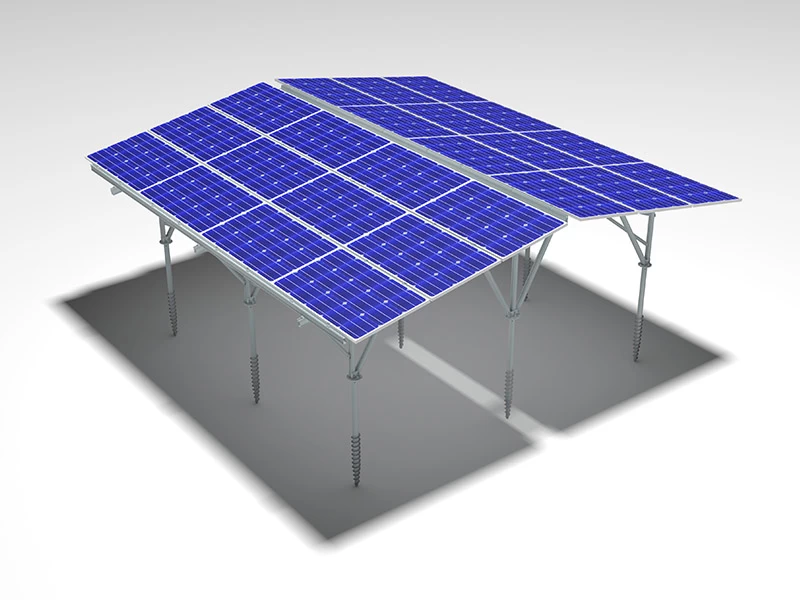

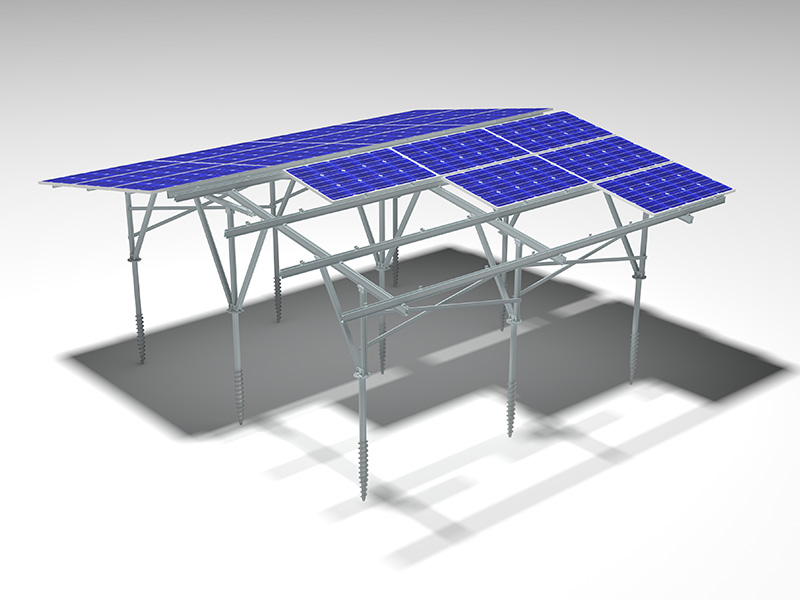

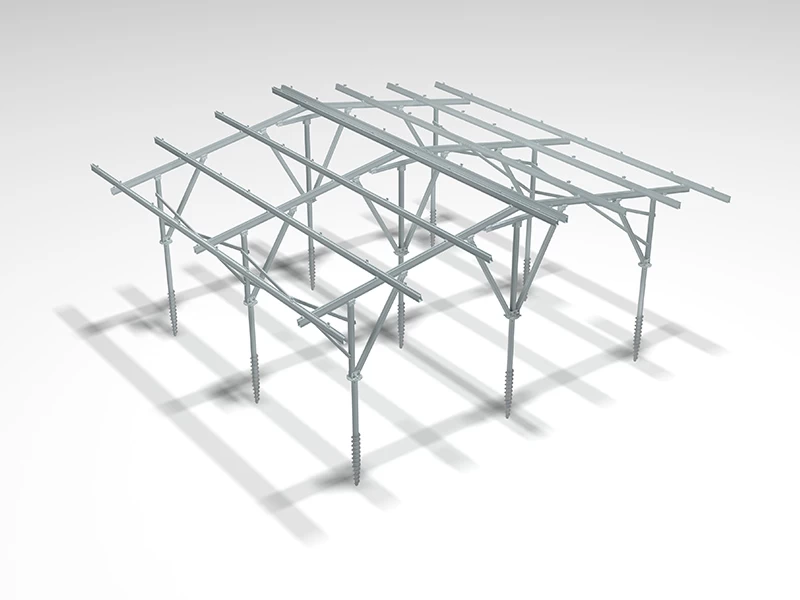

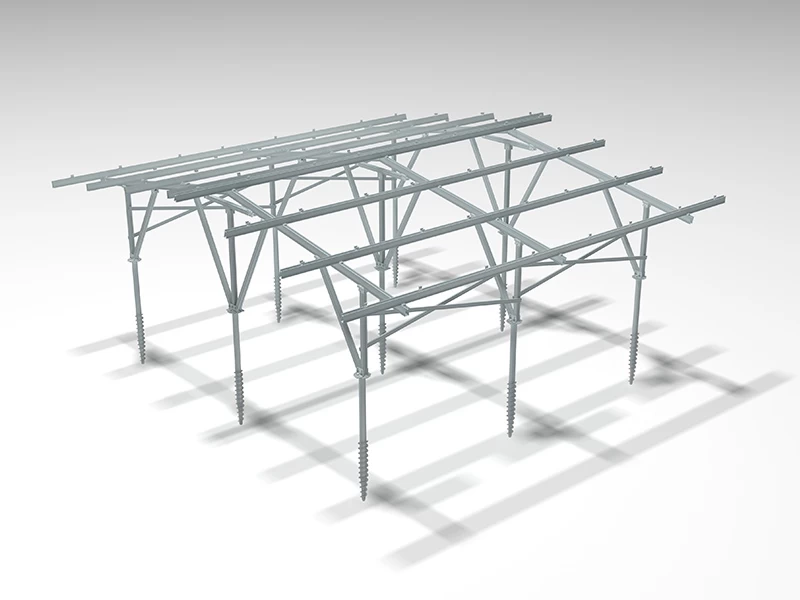

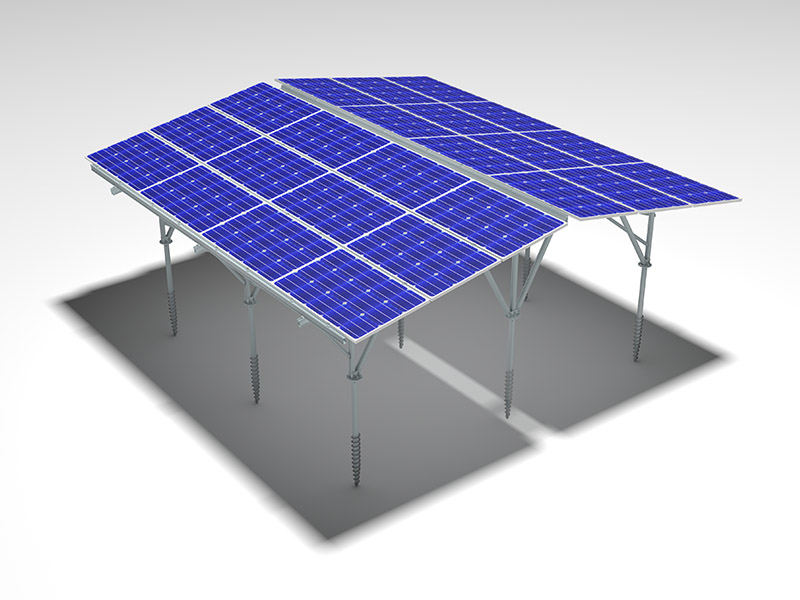

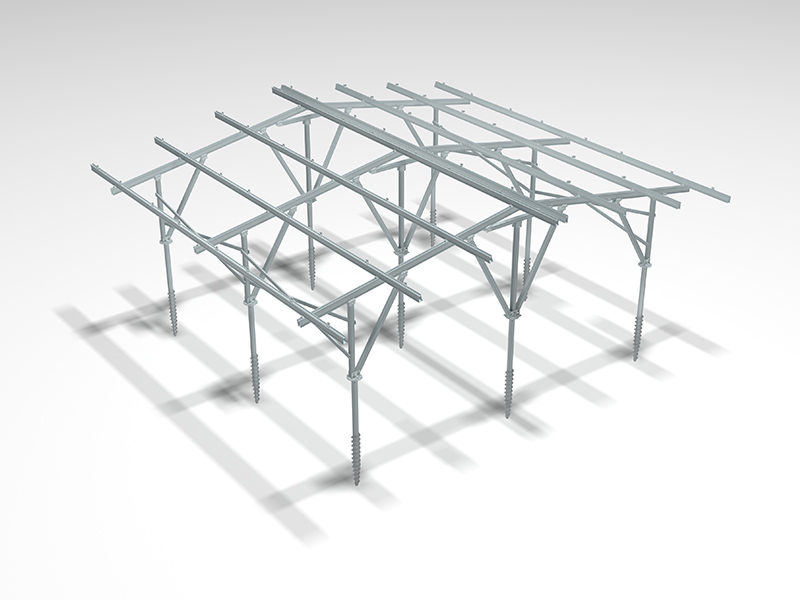

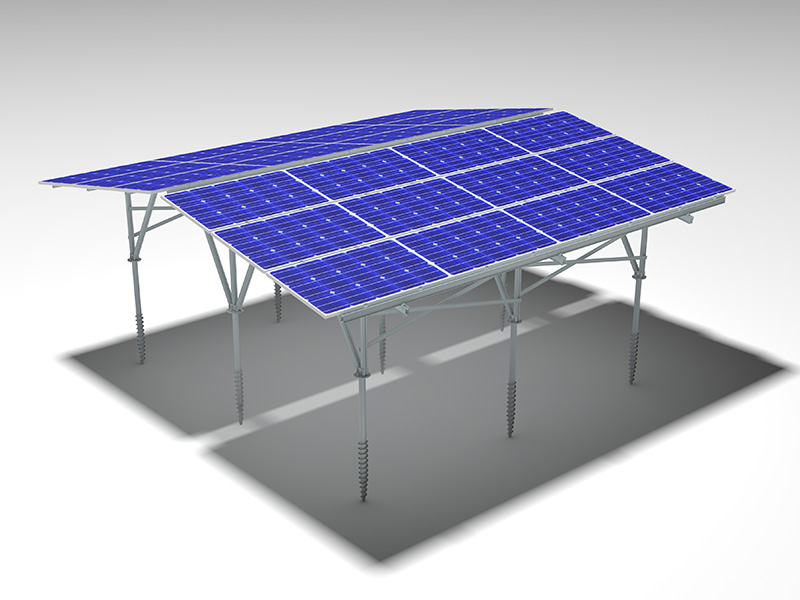

MRac Symmetrical Pro Ground Terrace PGT4 is suitable for
medium to large scale solar PV projects. Main beams and post are
optimized with better design and less material, with strong wind
load and snow load resistance. The system can achieve minor
adjustment onsite with special design of Anchor Plate to adapt to
different sites. Patented and certified system design ensure projects
safety and quick installation. Unique dual-orientation design suits
for east-west installation, which improve the total capacity at same
land area lead to better RoI.
Features
1.Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the installation efficiency.
2.A Leading Dual-Orientation and East-West Solution
The East-West system orientation allows better generation
results over the day with less generation at noon time and more
during early morning and later afternoon.
3.Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
4.Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Concrete Foundation , Ground Screw
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
