| Product name |
3# Inter Clamp |
| Model Number |
EG-IC03-30-Natural / EG-IC03-35-Natural / EG-IC03-40-Natural |
| Installation Site |
Solar Panel Mounting system |
| Surface Treatment |
Anodised |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
| Specification |
L30mm/L35mm/L40mm |
Product Description

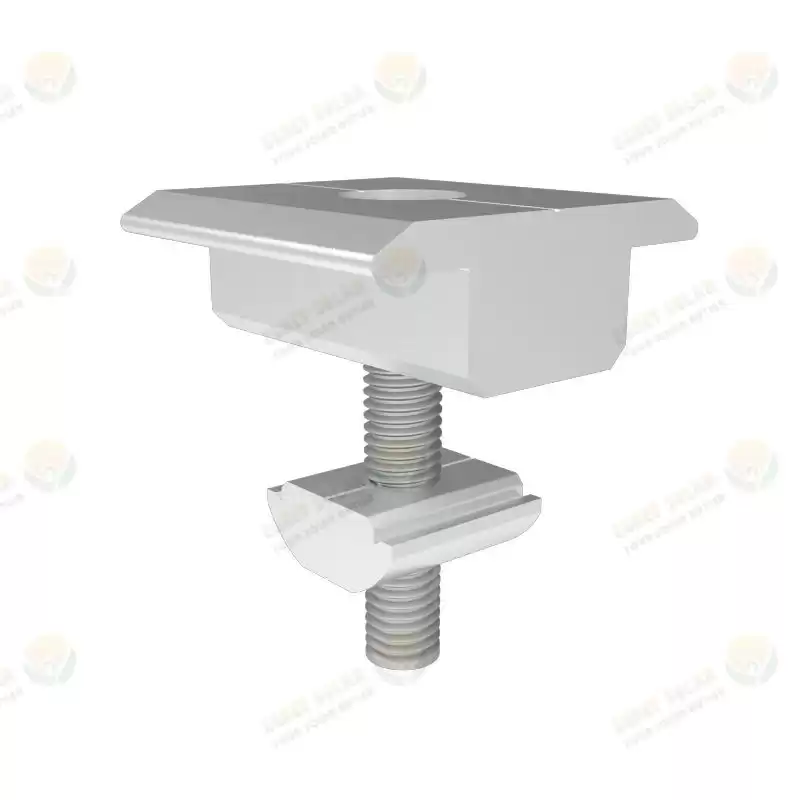

3# Inter Clamp, different specifications of Inter Clamp block can be selected according to different specifications of battery plates, simple structure and easy installation.

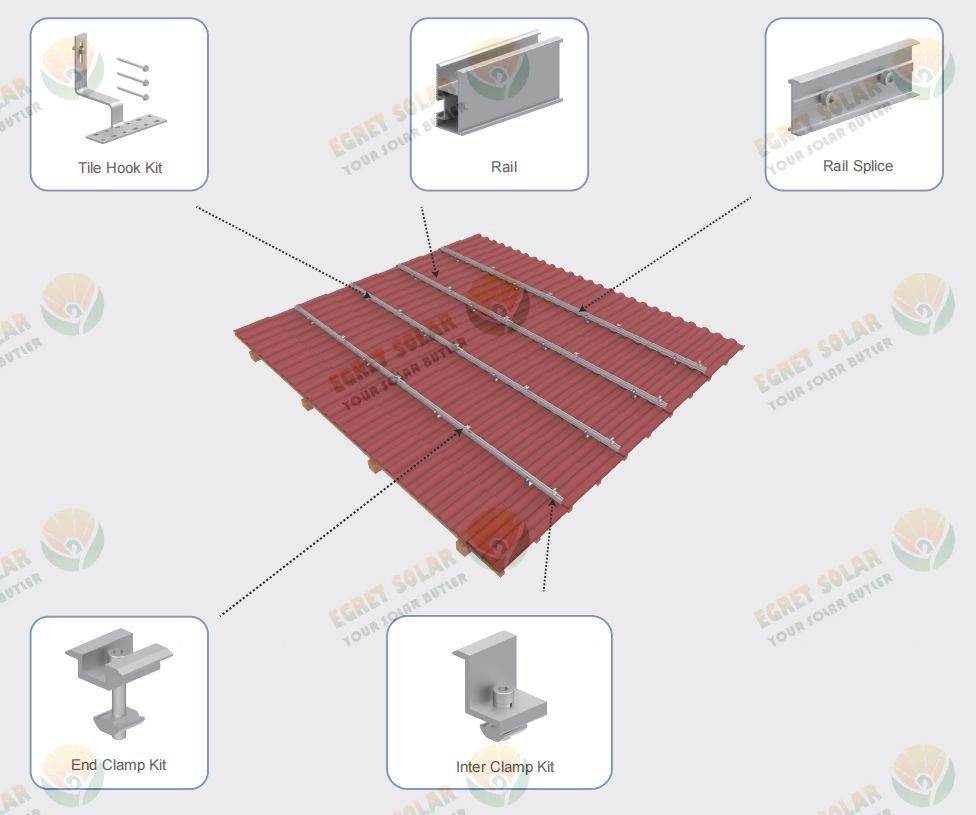

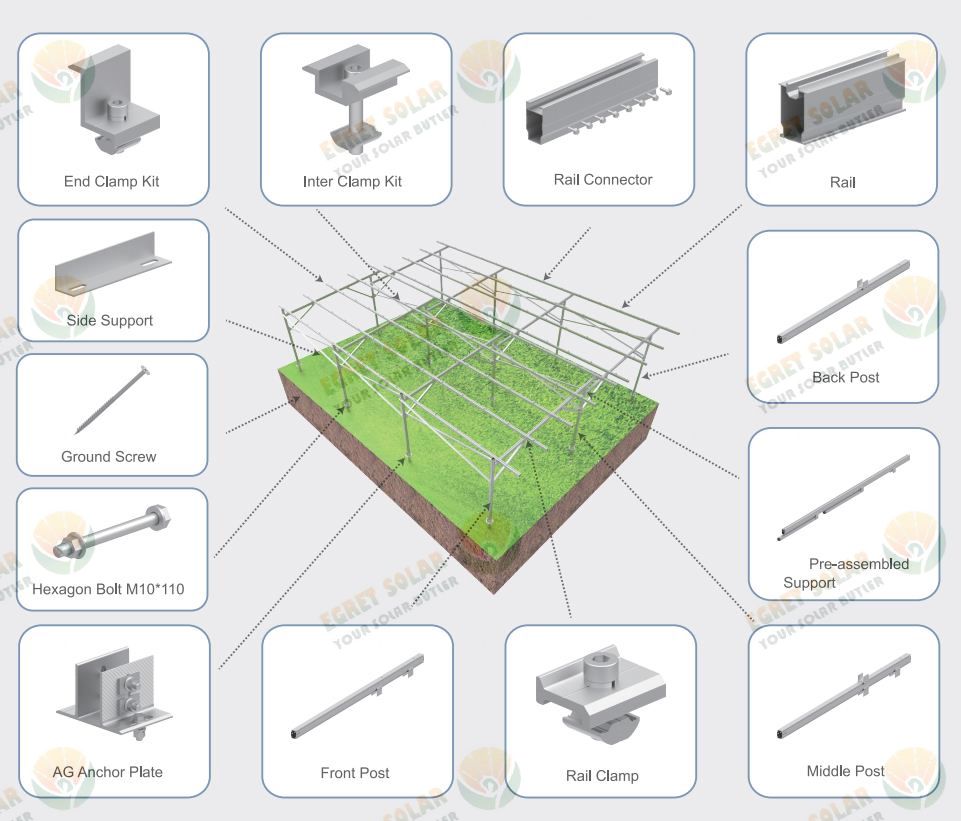

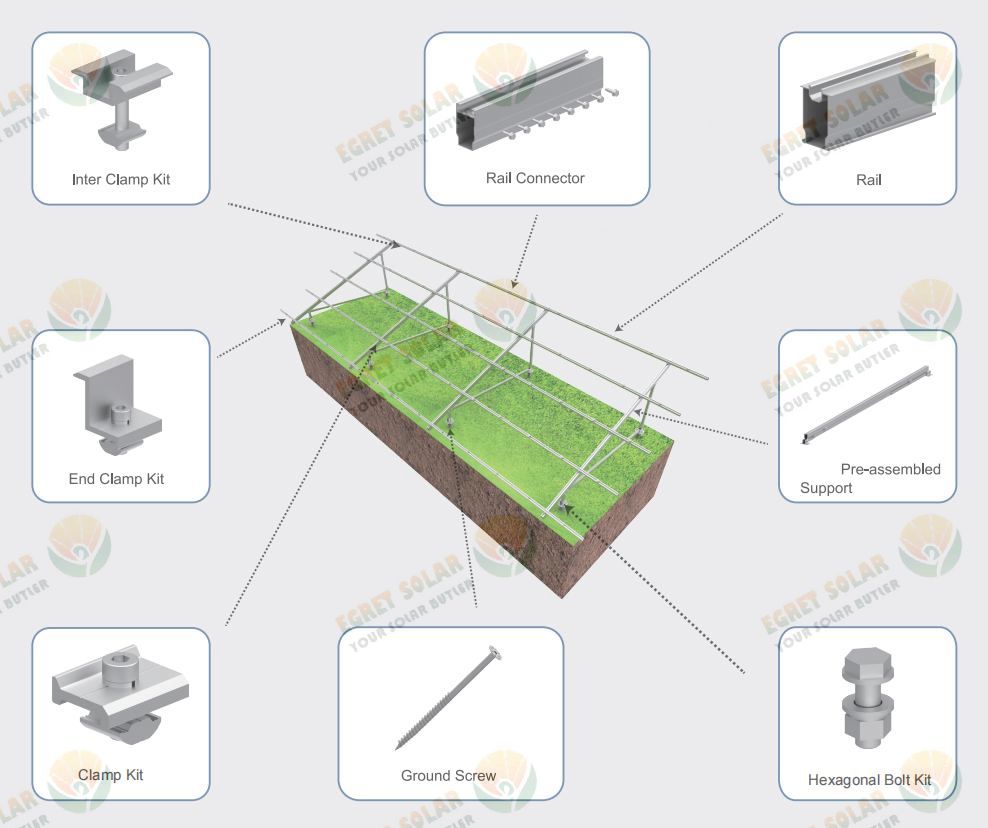

Product Show
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
