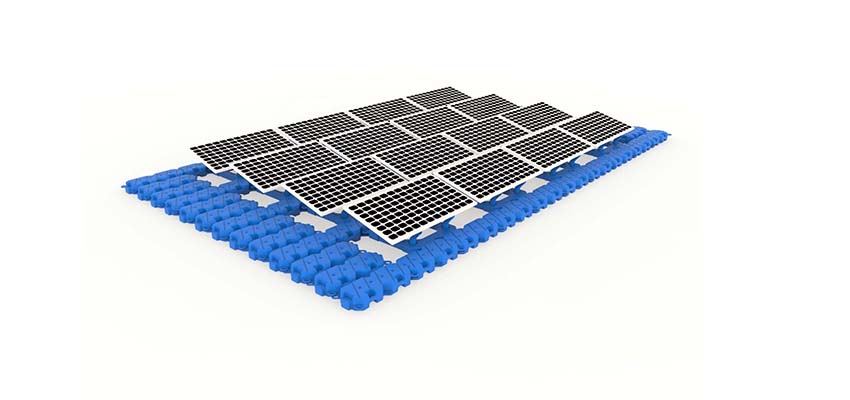

PV Mounting System On Water Floating Solar Mounting Structure
Floating photovoltaic installation refers to the solar energy installation system installed on the water surface of lakes, reservoirs, dams and ponds. The ambient temperature of floating solar energy installation is - 25 ℃ ~ 40 ℃
Details

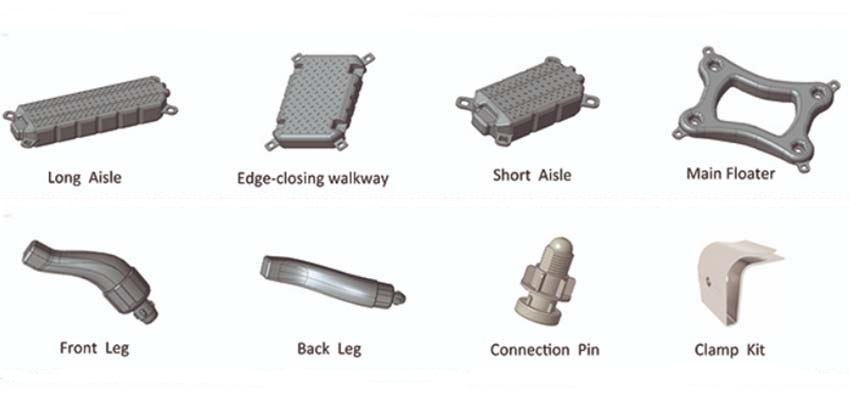

Component List
Technical Information
|
Name
|
Floating solar mounting system
|
|
Material
|
HDPE,AL6005-T5,SUS304
|
|
Wind Speed
|
51m/s
|
|
Snow Load
|
1KN/m²
|
|
Tilt Angle
|
10° or 15°
|
|
Water Depth
|
330-350
|
|
Module Type
|
Frame or Double Glass
|
|
Panel Orientation
|
Landscape,Double Row in the same/symmetrical Facing
|
|
Color:
|
Grey or Blue or Customized
|
|
Bearing Weight
|
Main Floater 70KG/㎡
|
|
Installation Site
|
Lake,Reservoir
|
|
Duration
|
25years
|

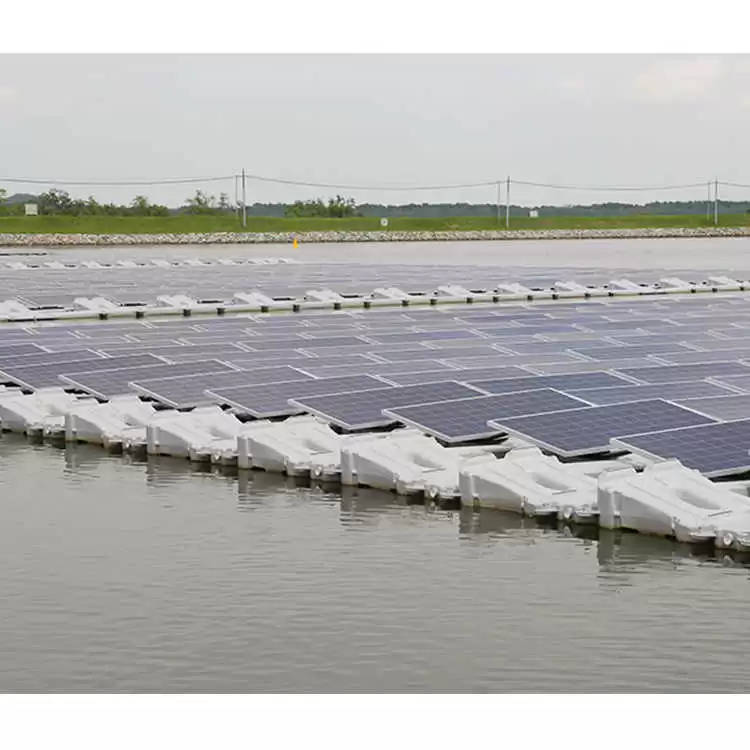

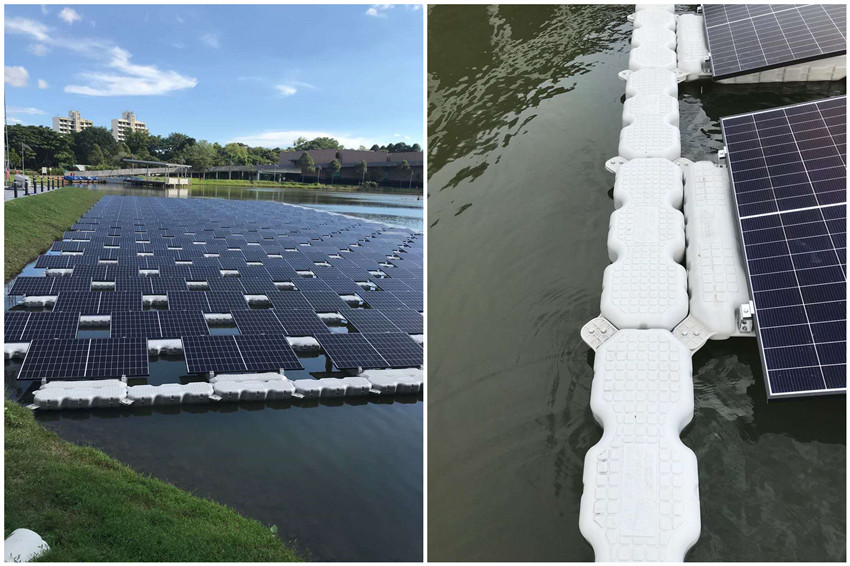

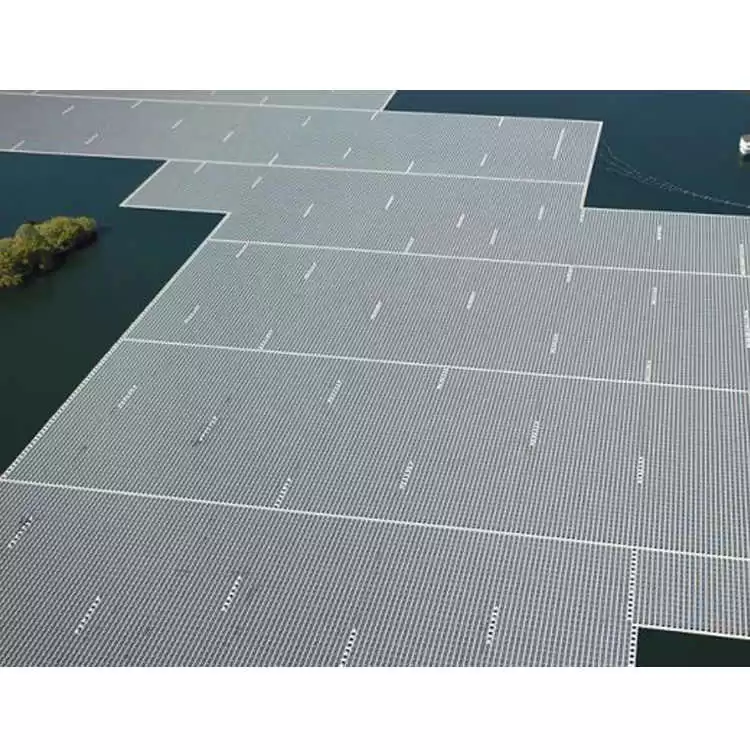

Project Case
