PV Solar Racking Support

PV Solar Racking Support has its pole column as foot which firmly rammed into ground.


  • HS Code76109000 & 73089000
  • Panel TypeFramed & Frameless
  • FoundationRamming Pile
  • Installation SiteGround
  • Tilt Angle0°~60°

PV Solar Racking Support

PV Solar Racking Support has its pole column as foot which firmly rammed into ground.



PV Ground Mounting



Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

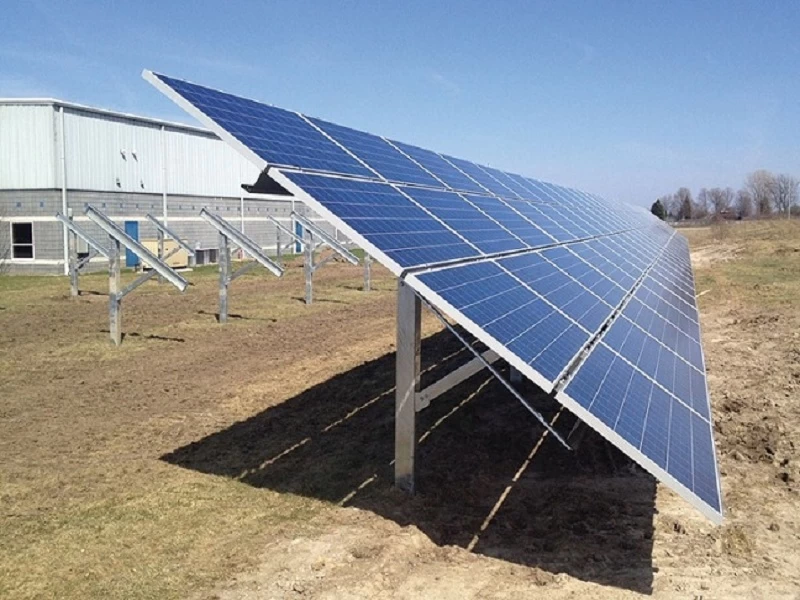

pile driven mounting mounting system

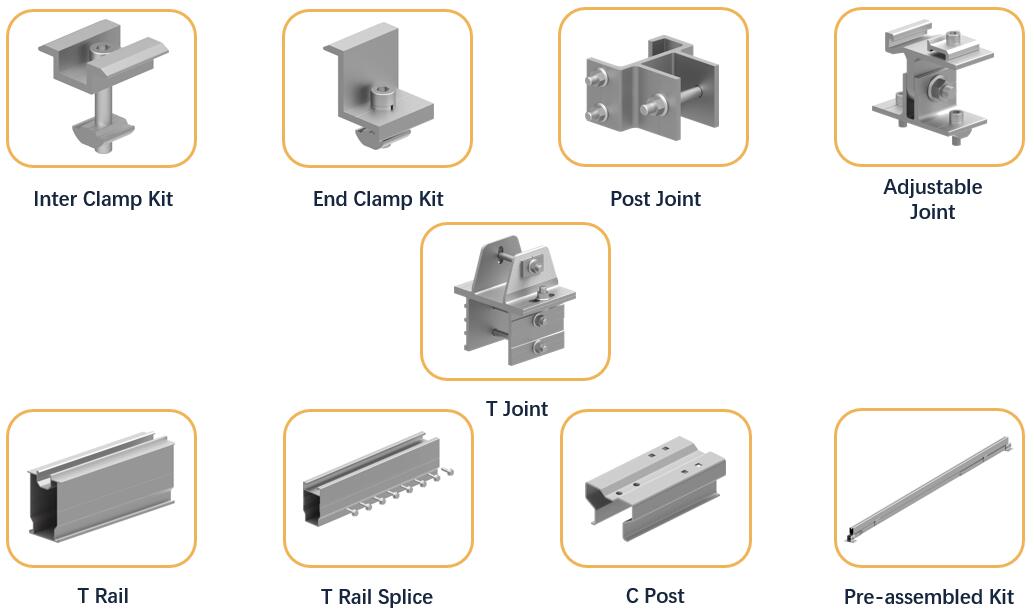

System Overview

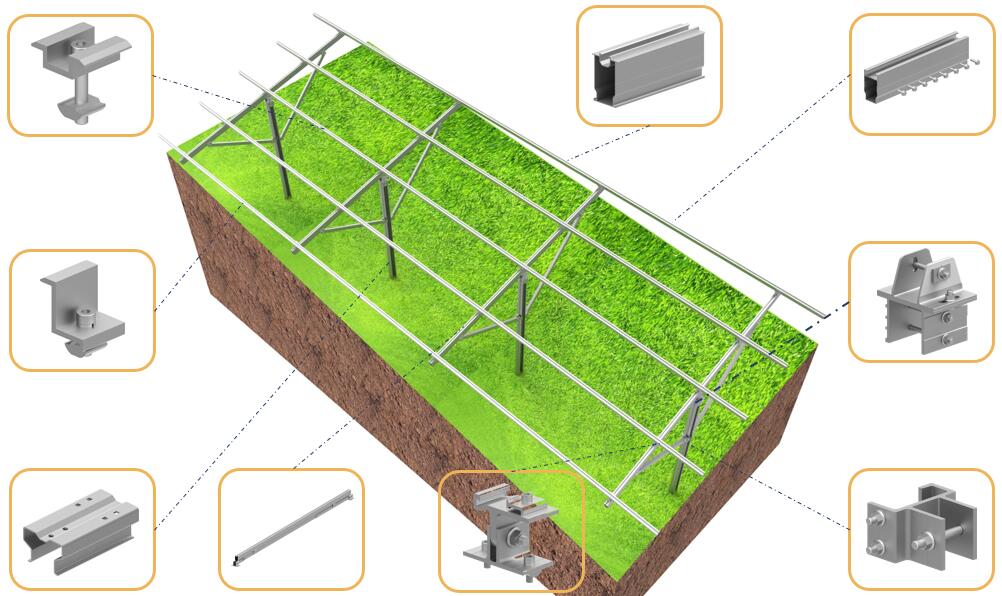

frameless module solar mount






Highly pre-assembled before shipment, save your onsite labor cost


Check and test Structure strictly for the use in extreme weather and geographical conditions.


Well install solar system on mountainous/slope without extensive land leveling, saving installers more cost.


15 years' warranty, 25 years' life span

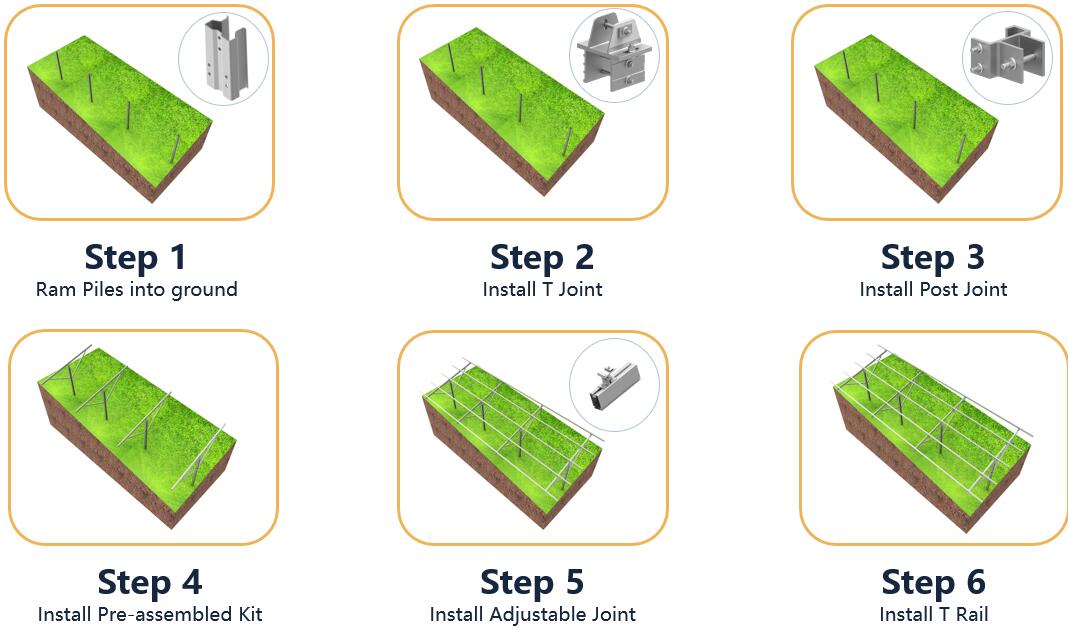

ground mounting system installation procedure

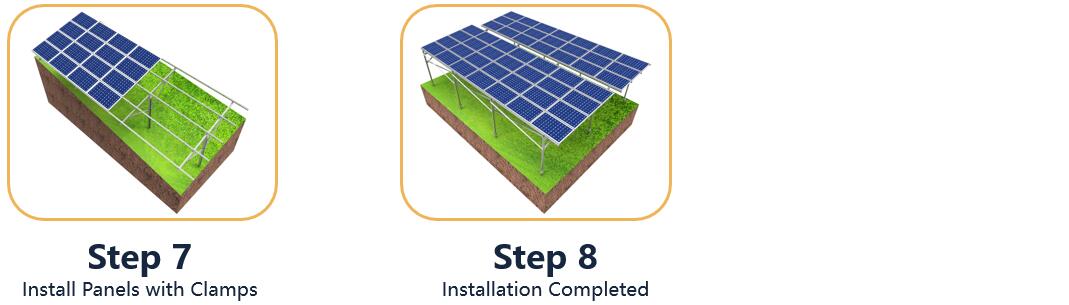

solar plant installation steps



Product Tags ground structure          defected ground structure          ground screw structure          ground mounting structure          Ground Mount Structures          ground racking structure          solar ground racking structure          solar ground mount structures          Solar Structure Ground Mounts
