Overview

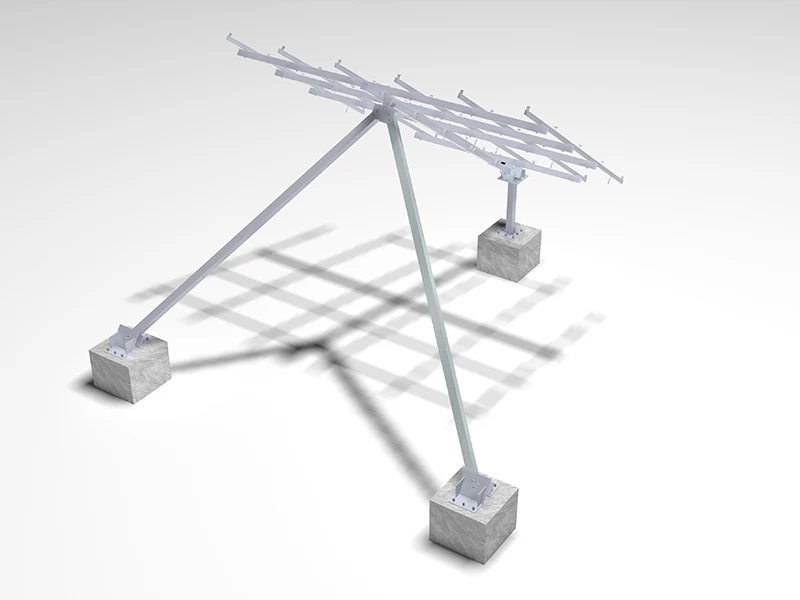

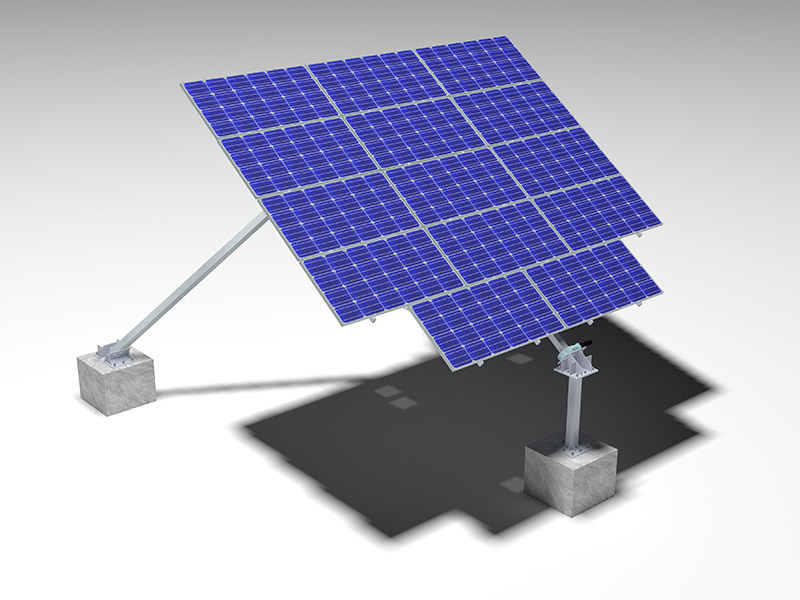

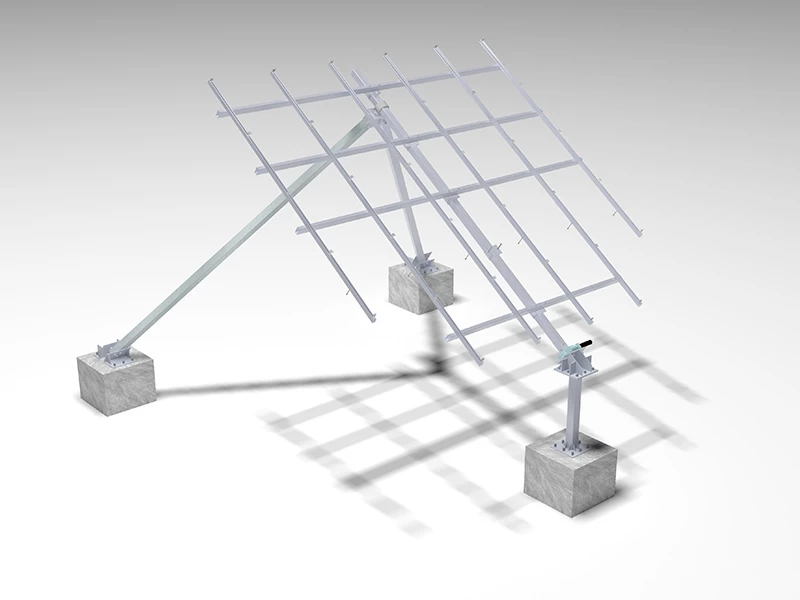

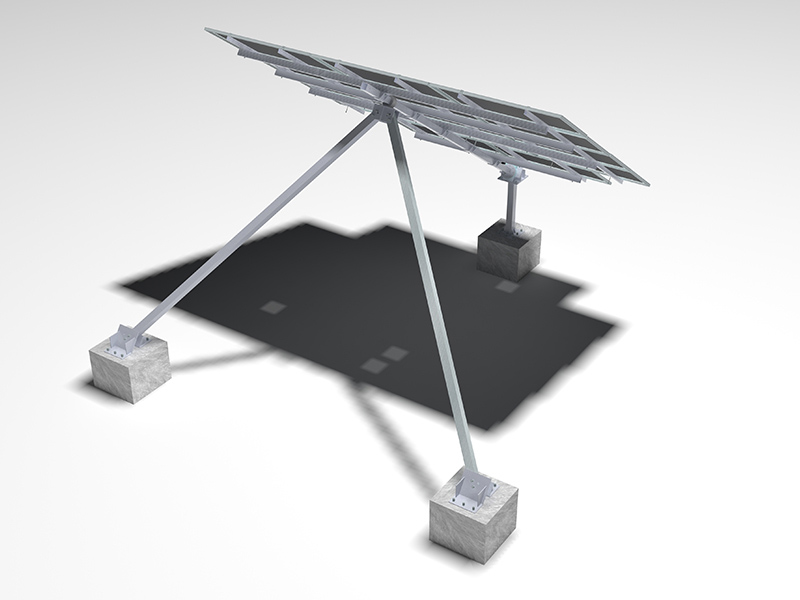

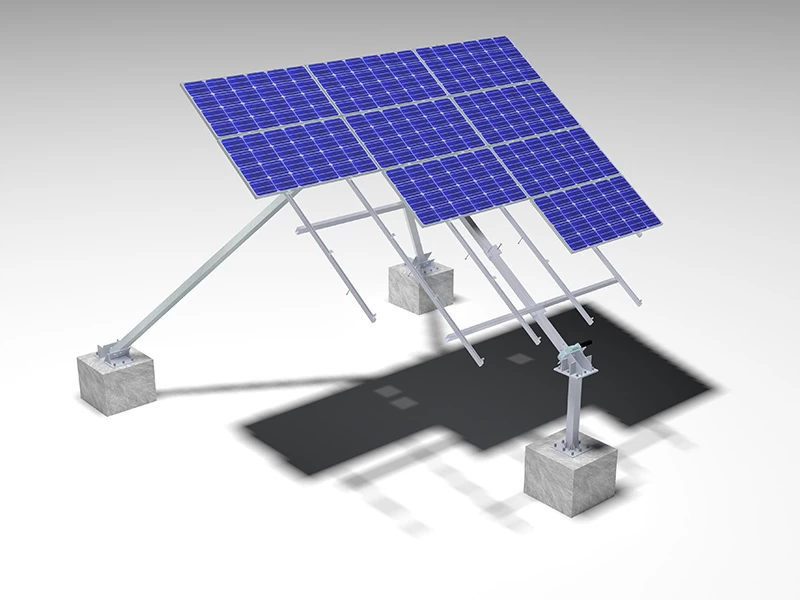

MRac Smart Tilt Single Axis Tracking Solar PV Mounting System is applied
to large-scale solar PV power plant at latitude higher than 40-degree
areas. One motor and control system make the whole solar module array
track automatically. The unique linkage structure and slewing bearing
ensure the stability of the whole system, low failure rate and maintenance
cost. It is a good choice for large-scale solar power plant with roughly 20%
power generation, comparing to fixed system.
Features
1.Automatic Tracking without Manual Debugging
With good environmental adaptability, no affection by rainy and
cloudy weather Wide Range (+/-45 degree) of tracking angle
improves the power generation 20% - 30% higher than fixed
system.
2.Equipped with GPS to Ensure the Accuracy of Time
High weather resistance contributes to safe and stable operation
between -40℃-85℃ The excellent electromagnetic compatibility
design makes the system stable and reliable.
3.Remote Communication, Group Control for Multi-Equipment
Automatically identify the failure, with automatic self-protection and
alarm.
Quadruple over-current protection ensures the safety of the whole
system.
4.Customized System Configuration Available
It can be designed according to customer’s specific requirement
|
Technical Parameter
|
|
GPS Module
|
Acquire longitude, latitude and accurate time automatically,
|
|
|
and be Compatible with Beidou Satellite Positioning System
|
|
Install Capacity
|
<10KWP
|
|
Tracking Angle
|
±45°
|
|
Wind Resistance
|
<22m/s
|
|
Tracking Algorithm
|
Astronomical Algorithms +Tilt Sensors
|
|
Ground Clearance
|
400mm+
|
|
Power Supply
|
DC24V
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Steel Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
