PVC And Nickel Strip Heat Shrinking Tube Cutting Machine



INTRODUCTION

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strip, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc



ADVANTAGE

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

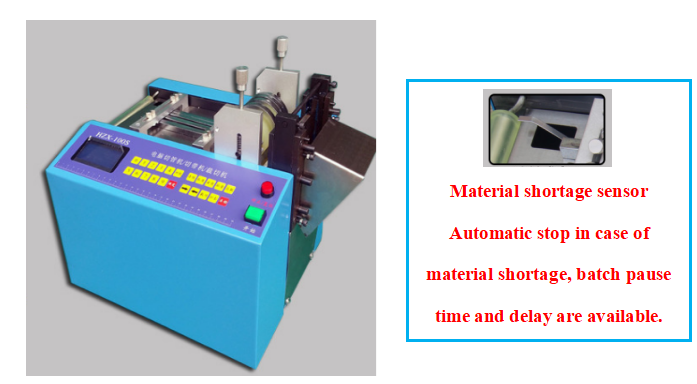

5.Automatic stopper: It stops automatically if materials run out during operation

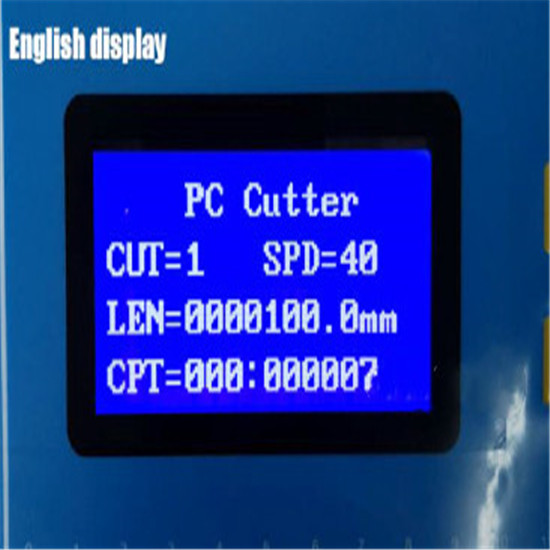

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.


SPECIFICATION

Model

Nickel Cutting Machine  YS-100

Source voltage

AC 220V/110V, 50/60HZ, Customized

Power

200W

Warranty

One year limited warranty with lifetime support

Advantages

1 In automatic stop without materials, unattended

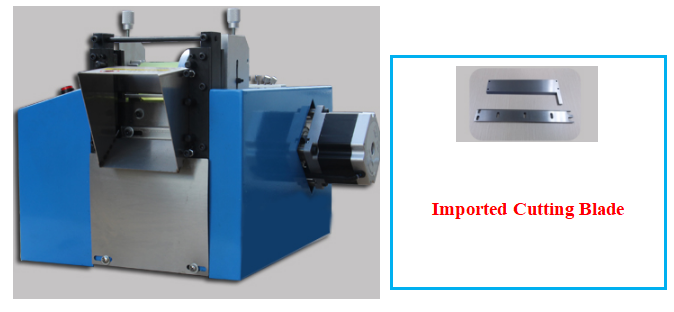

2 With a knife or blade adjustment conveniently

3 Automatic grouping and total cumulative count

4 Suitable for all kinds of metal and no-metal strip materials, such as  copper foil,

aluminum foil, copper foil tape, batteries nickel belt and so on

Cutting speed

0-130times/min

Cutting length

0.1mm-10m

Cutting width

0.1-100mm, according to model we choose

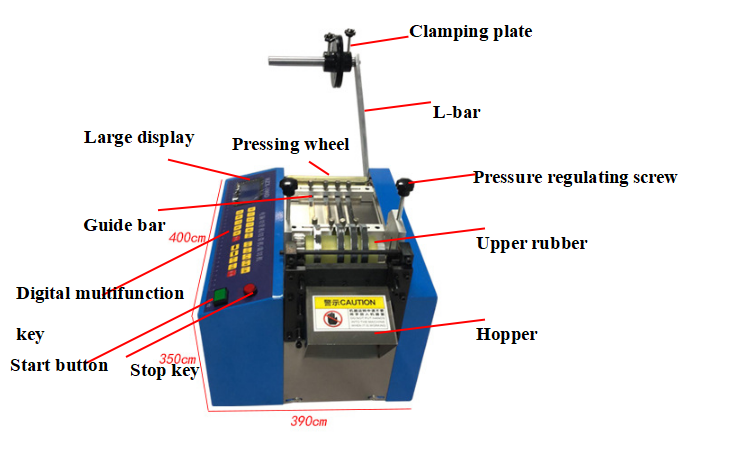

Dimension(L*W*H)

360*300*350mm

Weight

About 30kg







Nickel Strip Cutting Machine


Nickel Strip Cutting Machine


Nickel Strip Cutting Machine
