PVC Material CR80 13.56Mhz RFID Plastic Cards With Fudan Chips

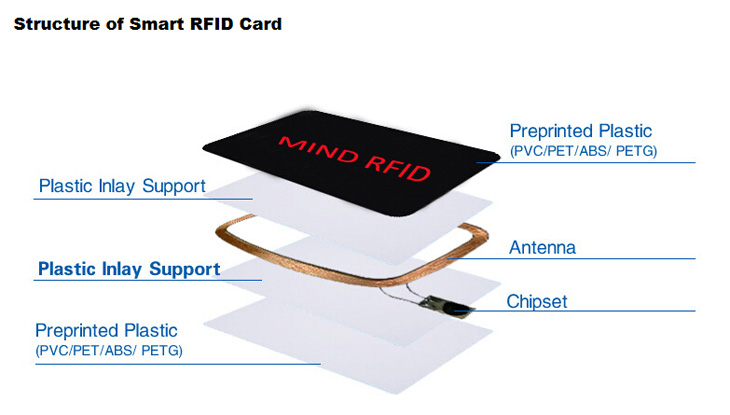

RFID contactless smart card is a plastic or paper card which is embedded with a microchip and antenna inside, it is widely applied as access control card, employee ID card, hotel key card, parking card. Dual frequency RFID card is also available on request. Besides, Meihe smart cards also provides programming and encoding services which exactly fit customer’s programming or encoding requirements.
High frequency card(HF Card) operating frequency: 13.56 MHz or so, the sensing distance of more than 1cm, like the security force ZM1298 fingerprint lock using high frequency card. Business / campus card, bus card, highway charges, parking, community management.
Materials: PVC, PET, ABS, PET-G, etc.
Size: CR80 (85.5*54*0.84mm) or Customized
Protocal: ISO11784/ ISO14443A/ ISO15693/ IS18000-6B/ EPC C1 GEN2
Frequency: HF
Crafts: Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, etc.
Encode: Available
ID Number Printing: Jet dot printing/ Thermo transfer/ Laser engrave
Surface: Frosted/Glossy/Matte Finishing
Printing Options: Full color offset printing, Silk-screen printing, etc.
Available 13.56MHz Chip Technologies
Chip Type Protocal Capacity Anti Collision Function
F08 ISO14443A 1KB No Read/Write
Ntag203/213/215/216 ISO14443A 168/180/540/924 byte No Read/Write
Mifare 1k S50 ISO14443A 1KB No Read/Write
Mifare 4k S70 ISO14443A 4KB No Read/Write
Mifare Plus ISO14443A 2KB/4KB No Read/Write
Mifare DESFire ISO14443A 2KB/4KB/8KB No Read/Write
Mifare Ultralight EV1 ISO14443A 640bit No Read/Write
Mifare Ultralight C ISO14443A 1184bit No Read/Write
I CODE SLI ISO15693 128 byte Yes Read/Write
Ti2048 ISO15693 2KB Yes Read/Write
Other ICs are available upon request.
