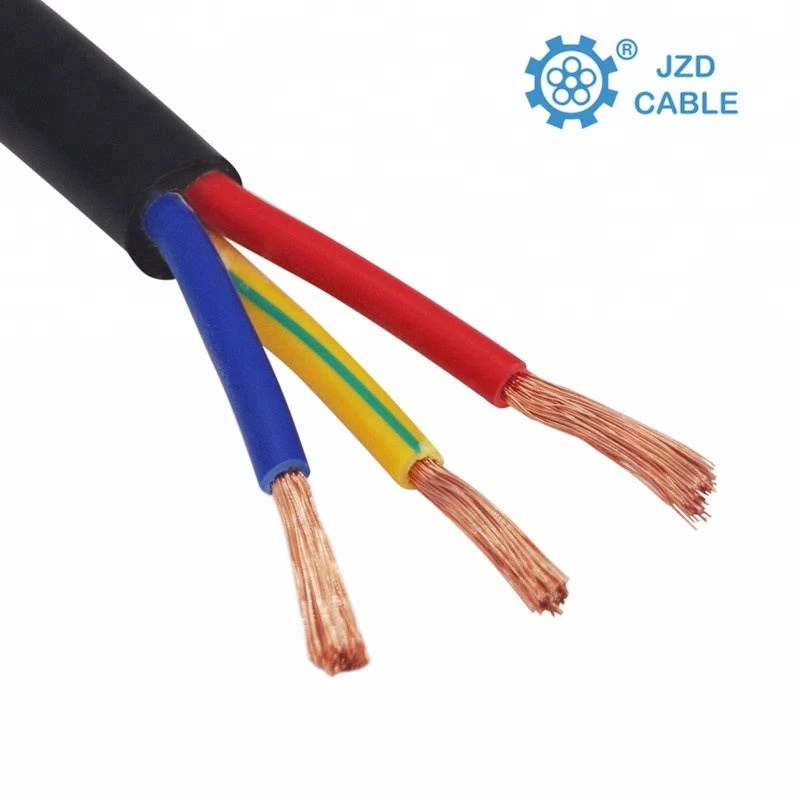

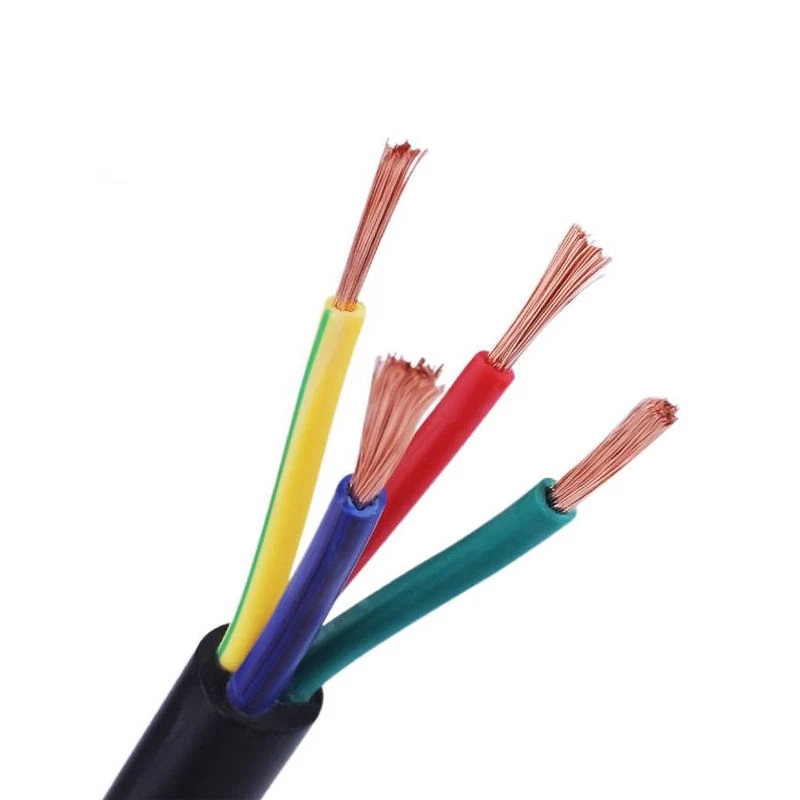

PVC multicore royal cord flexible cable

More than ten years of production experience, specializing in the manufacture of electric flexible cable, to provide you with better service




RVV-_01_02

Product Description



  •  Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
  • Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
  • Application:
          Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.copper cable electric cable wire
Voltage Level
(V)
Nominal section
(mm²)
Toplimit of overall diameter
(mm)
Maximum DC resistance
(20℃)
Minimum insulation resistance
(70℃)
Recommended value of carrying capacity
(A)
Reference weight
(KG,KM)
300/300 2x0.5 5.9 3.9 0.012 10 37
2x0.75 6.3 26.0 0.01 13 47
3x0.5 6.3 39.0 0.012 8 44
3x0.75 6.7 26.0 0.01 10 58
2x0.75 7.2 26.0 0.011 13 58
300/500 2x1.0 7.5 19.5 0.01 16 66
2x1.5 8.6 13.30 0.01 20 89
2x2.5 10.6 7.98 0.009 27 137
2x4 12.4 4.95 0.007 38 205
2x6 14.5 3.30 0.006 50 280
3x0.75 7.6 26.00 0.011 9 70
3x1.0 8.0 19.50 0.01 11 80
3x1.5 9.4 13.300 0.01 12 112
3x2.5 11.4 7.980 0.009 21 172
3x4 13.5 4.950 0.007 27 255
3x6 14.0 3.30 0.006 34 340
4x0.75 8.3 26.0 0.011 10 84
4x1.0 9.0 19.50 0.01 12 101
4x1.5 10.5 13.30 0.01 13 141
4x2.5 12.5 7.98 0.009 21 210
4x4 14.6 4.95 0.007 27 310
4x6 16.0 3.30 0.006 35 425
5x0.75 9.3 26.00 0.011 10 103
5x1.0 9.8 19.50 0.01 12 119
5x1.5 11.6 13.30 0.01 13 172
5x2.5 13.9 7.98 0.009 22 257
5x4 16.5 4.95 0.007 27 386
5x6 17.3 3.30 0.006 35 518

RVV-_01_03RVV-_01_04


 _10



Certifications

 _11_12_13

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.



FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
