PVDF Coated Battery Separator
Product Specification
|
Inspection department
|
Technology department
|
Model
|
16um basis film+3um PVDF (or customized)
|
|
Name
|
Coated Separator
|
Inspection standard
|
<Separator Inspection standard>
|
|
Quantity
|
Sample
|
Inspection Qty
|
All
|
|
Project
|
Standard requirement
|
Test equipment
|
Test result
|
Judge
|
Remark
|
|
Thickness
|
Total
thickness
|
Basis film/after coated
|
Digimatic Micrometer
|
19~20.5
|
ok
|
|
|
20um±1.5um
|
16um/20um
|
|
Width
|
130mm(+0.5/-0.1mm)
|
Feilin ruler
|
130
|
ok
|
|
|
Acupuncture strength
|
≥450gf
|
Puncture tester
|
610
|
ok
|
|
|
Air permeability
|
180~350sec/100cc
|
MODEL 4340 Automatic Densometer &Smoothness
|
264
|
ok
|
|
|
MD tensile strength
|
Tensile strength≥80Mpa
|
Tensile tester
|
130
|
ok
|
|
|
Extensibility≥100%
|
Tensile tester
|
164
|
|
|
TD tensile strength
|
Tensile strength≥80Mpa
|
Tensile tester
|
129
|
ok
|
|
|
Extensibility≥100%
|
Tensile tester
|
220
|
|
|
Thermal shrinkage after coating(105℃/2H)
|
MD≤3.0%
|
Constant temperature oven
|
2.8
|
ok
|
|
|
TD≤2.0%
|
Constant temperature oven
|
0.13
|
|
|
Surface
|
By standard
|
No scratch
|
ok
|
|
|
No dirty damage
|
ok
|
|
|
Uniform color
|
ok
|
|
|
No hole
|
ok
|
|

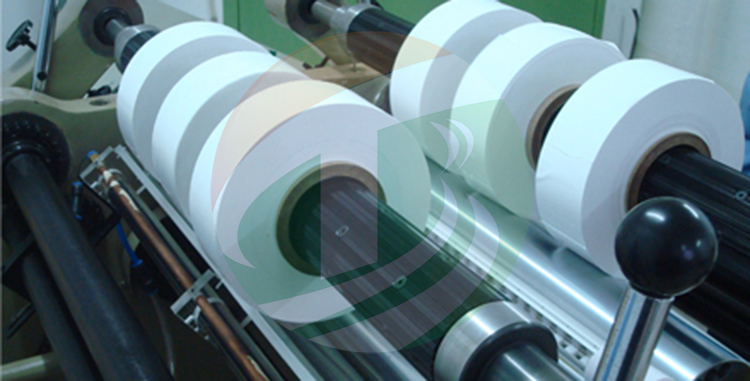

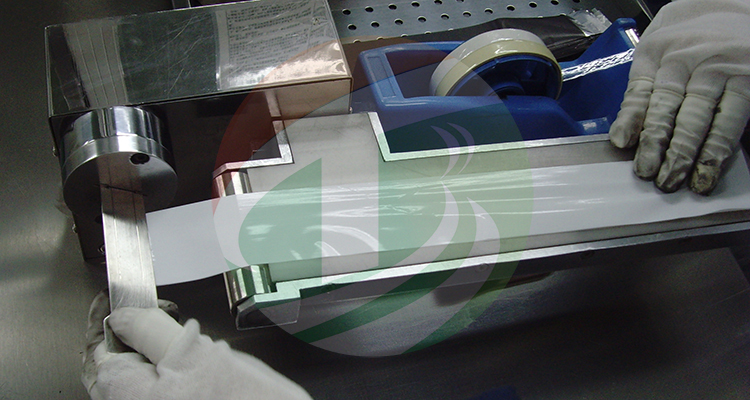

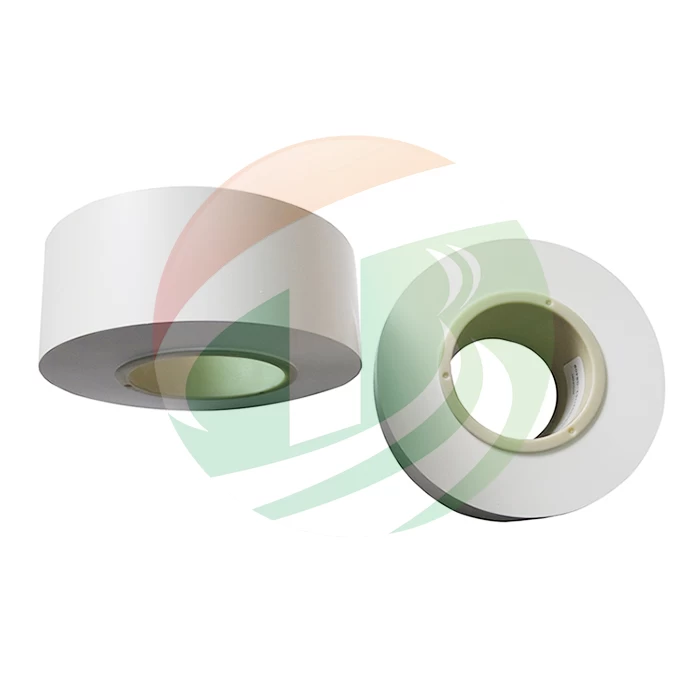

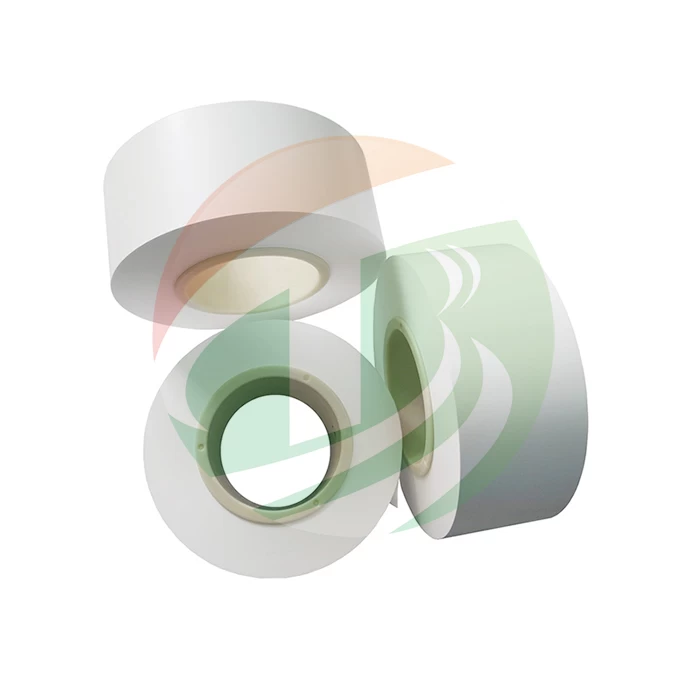

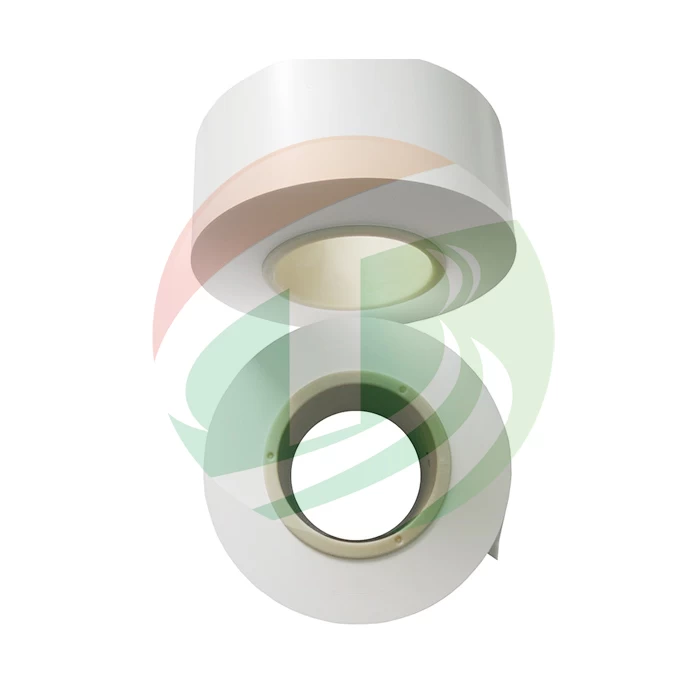

Product Image
Product Packing
