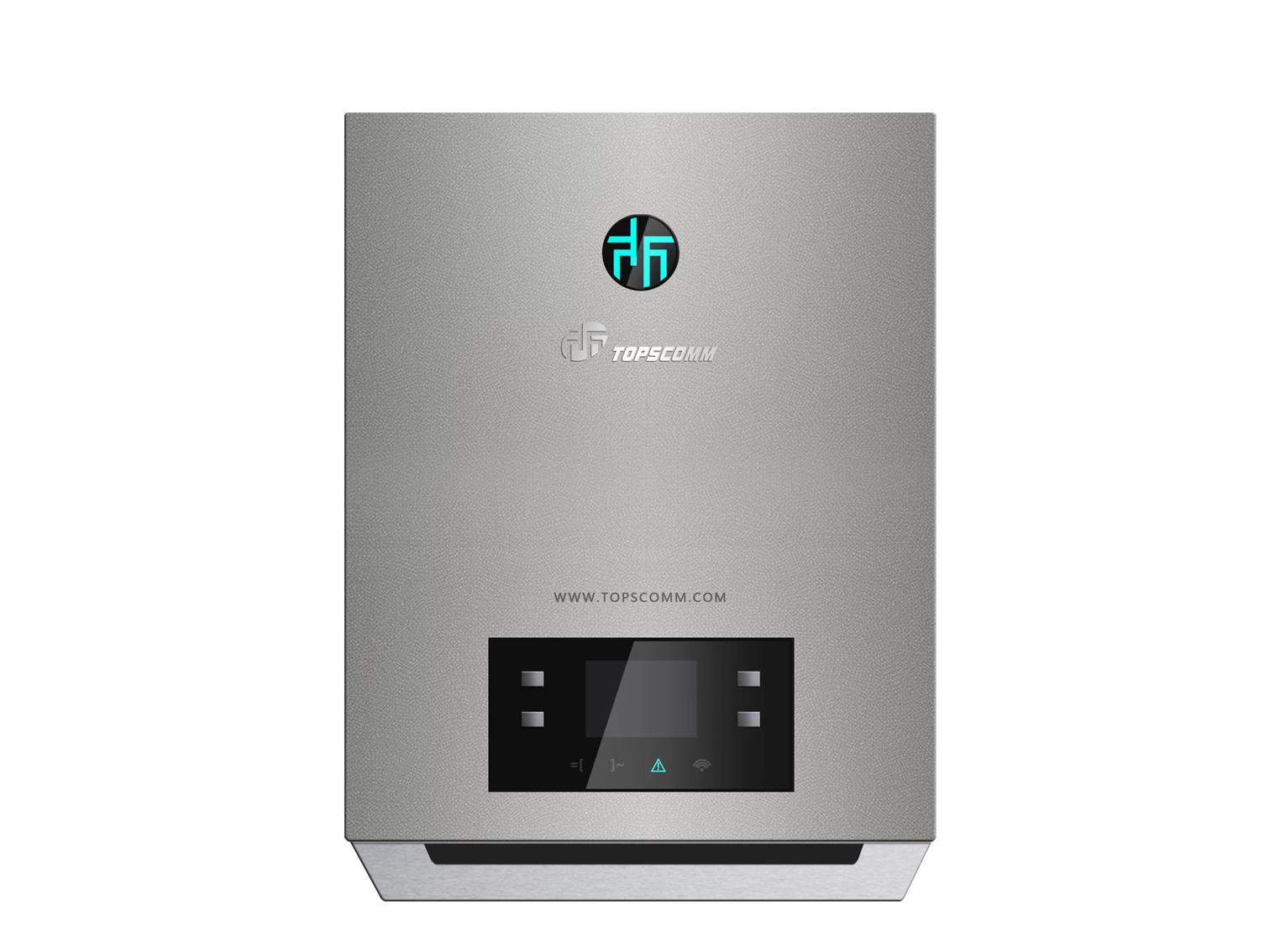

PVTLT4-10K-DX Photovoltaic Power Inverter

PVTLT4-10K-DX is a Topscomm self-developed photovoltaic grid connected power inverter, it is integrated with the latest PLC communication technology and intellectual property owned photovoltaic plant monitoring and management system.



Topscomm photovaltaic power inverter (PV inverter) is featured with T type three-level architecture, the max. efficiency is over 98% which is higher than most of the similar products. The product is equipped with MPPT technology and combined the Topscomm PLC communicaton module, it is capable to achieve quick and precise fault positioning function, is able to greatly reduce the labor intensity of in large power solar power plants and also improve the  power generating capacity.


Efficiency
Max. efficiency
98.30%
Euro efficiency 97.80%

MPPT adaptation efficiency

99.90%
DC Input

Max. PV Power

11500W

Max. DC Voltage

1000V

Max. DC Current (Each MPPT Unit
18A
AC Output

Max. AC power

11000 VA

Nominal AC Output

"3×230V/400V+N+PE

Frequency of AC Output

50/60 Hz

Max. AC Current

16A

Power Factor

0.8 leading~0.8 lagging

THDi

<3%

More parameters

Dimensions

700mm*520mm*310mm

Mounting

Wall mounted

Ambient temperature range

-25~60℃

Relative humidity

0-95%

Protection degree

IP65

Topology

Transformerless

Cooling

Nature Conversion

Noise emmission

<30dB

Display

LCD
Communication
RS485+PLC+Bluetooth
