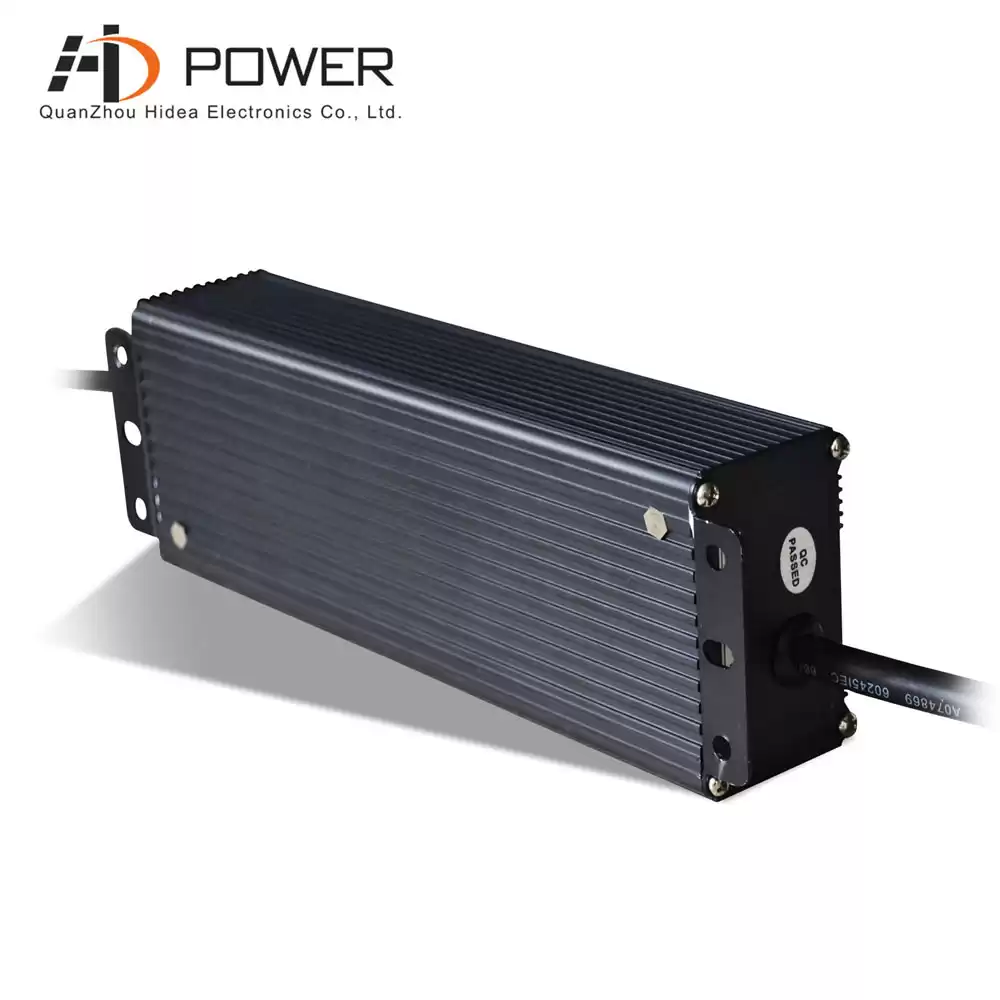

pwm output triac & 0 10v dimmable led strip light power supply 24v 100w
triac & 0 10v dimmable 100W led power supply has built-in PFC function, PF>0.97, constant voltage working mode, working efficiency up to 80%, complies with global safety lighting regulations, 7-year warranty
Specification
|
model
|
SMT-012-100VTD
|
SMT-024-096VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
8.33A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC; 0.95@277VAC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
Full Load Efficiency(Typ.)
|
80%@120VAC 83%@277VAC
|
83%@120VAC 86%@277VAC
|
|
AC Current(Typ.)
|
1.4A
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 + UL1310, class 2 CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Net Weight
|
1.1Kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
Carton size: 340*275*170mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
Configure 12V UL certified 100w 12v led driver, with short circuit protection and fire protection, the led strip lights be used for various indoor scene decoration and mood lighting such as bar-party-bedroom-living room-kitchens-ceilings-TV backs-PC- stair, etc...
Related Products
|

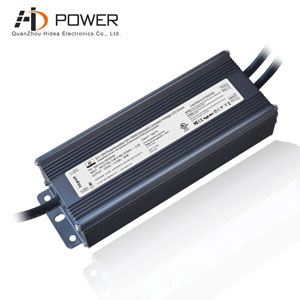

 0 10v dimmable led driver constant voltage working mode, working efficiency up to 88%, aluminum shell design, good waterproof performance, suitable for outdoor lighting projects in North America, with 7-year warranty

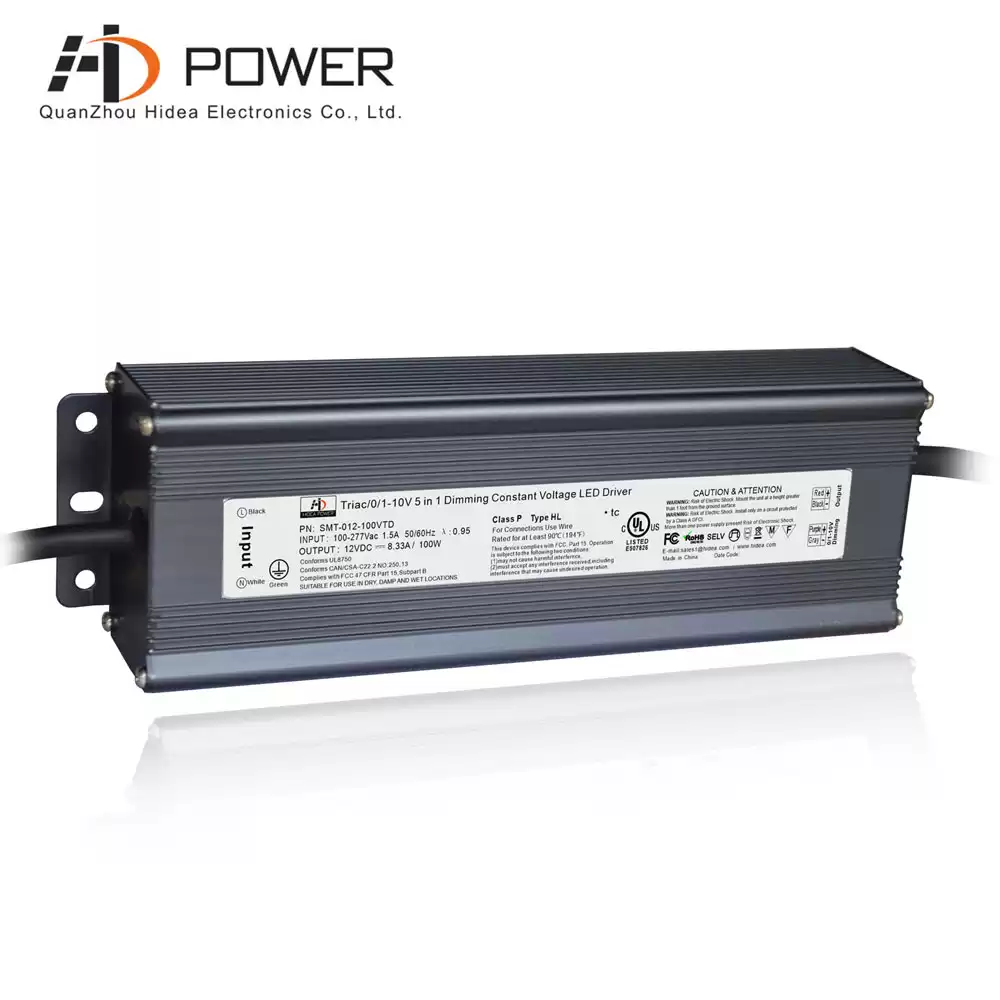

Mode：SMT-012-100VDHW
Dimming Mode : Triac Dimming
Output Power :100W
intput voltage：100-277VAC
Size：230*70*47MM （L*W*H）
|
