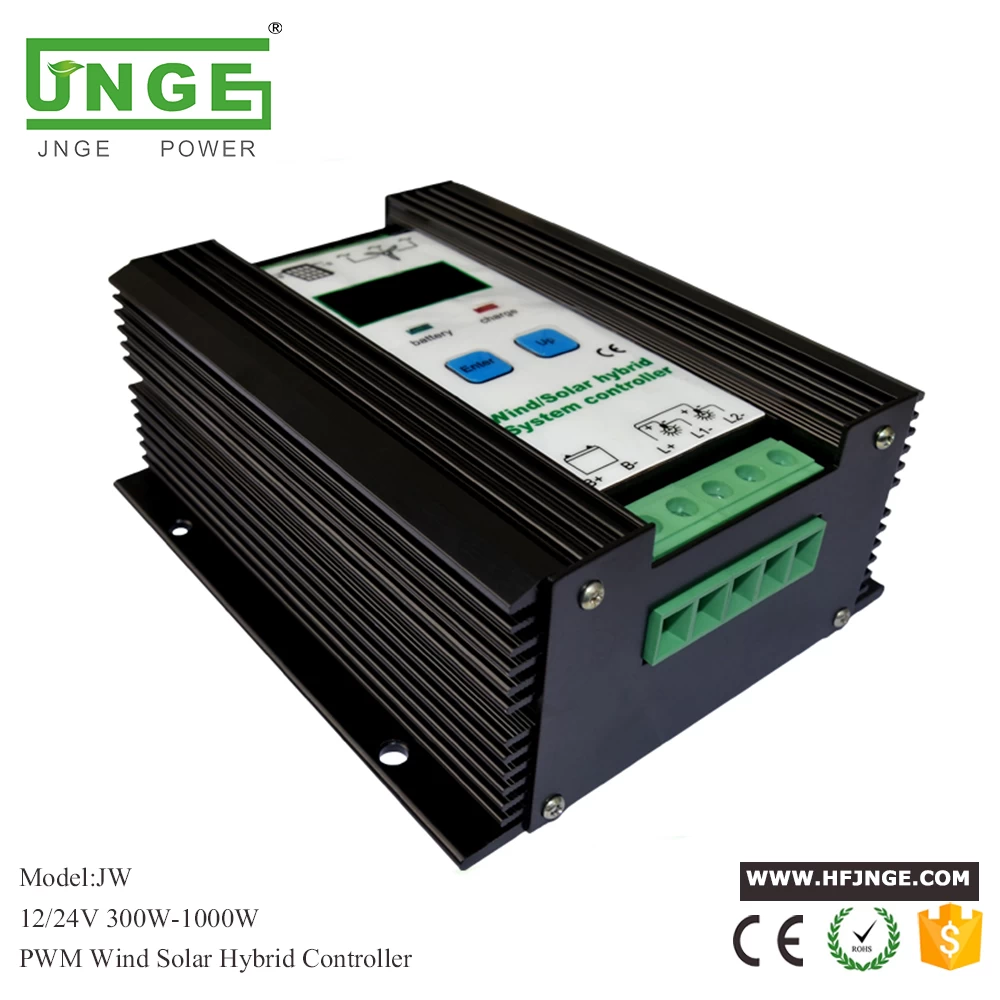

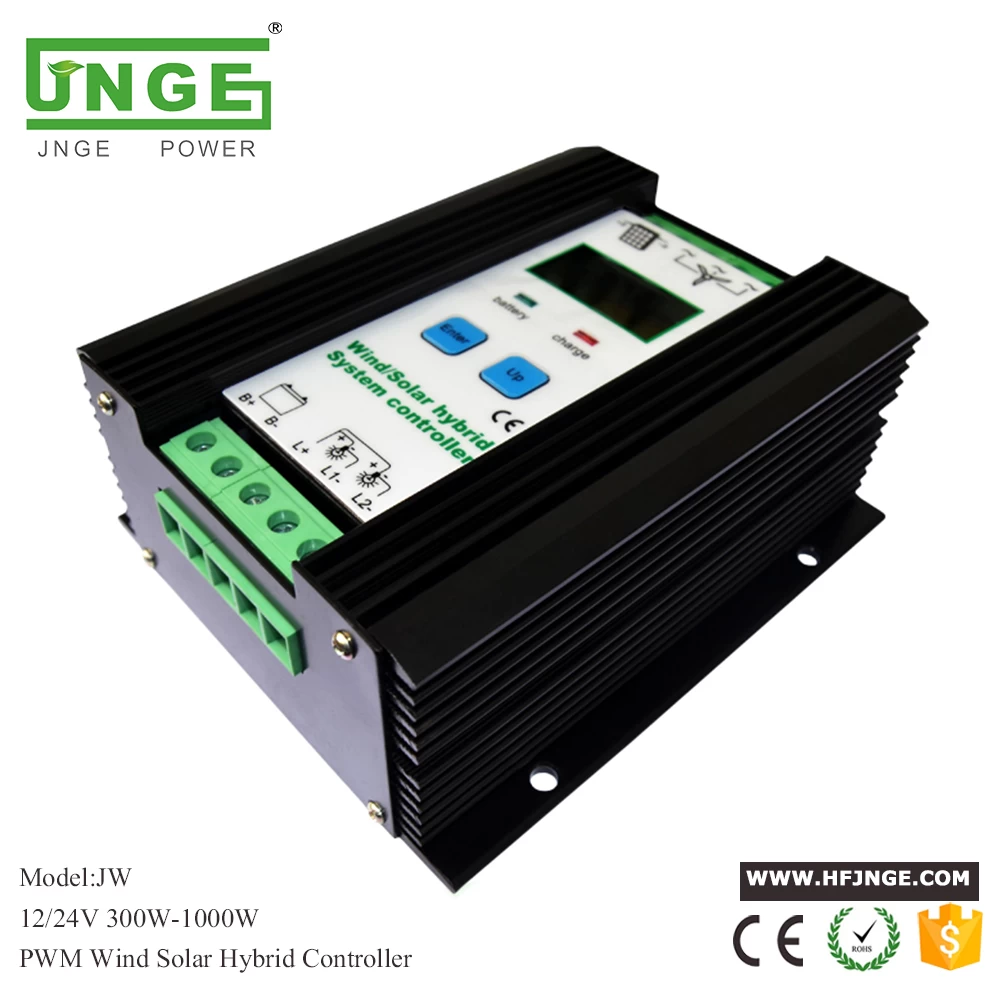

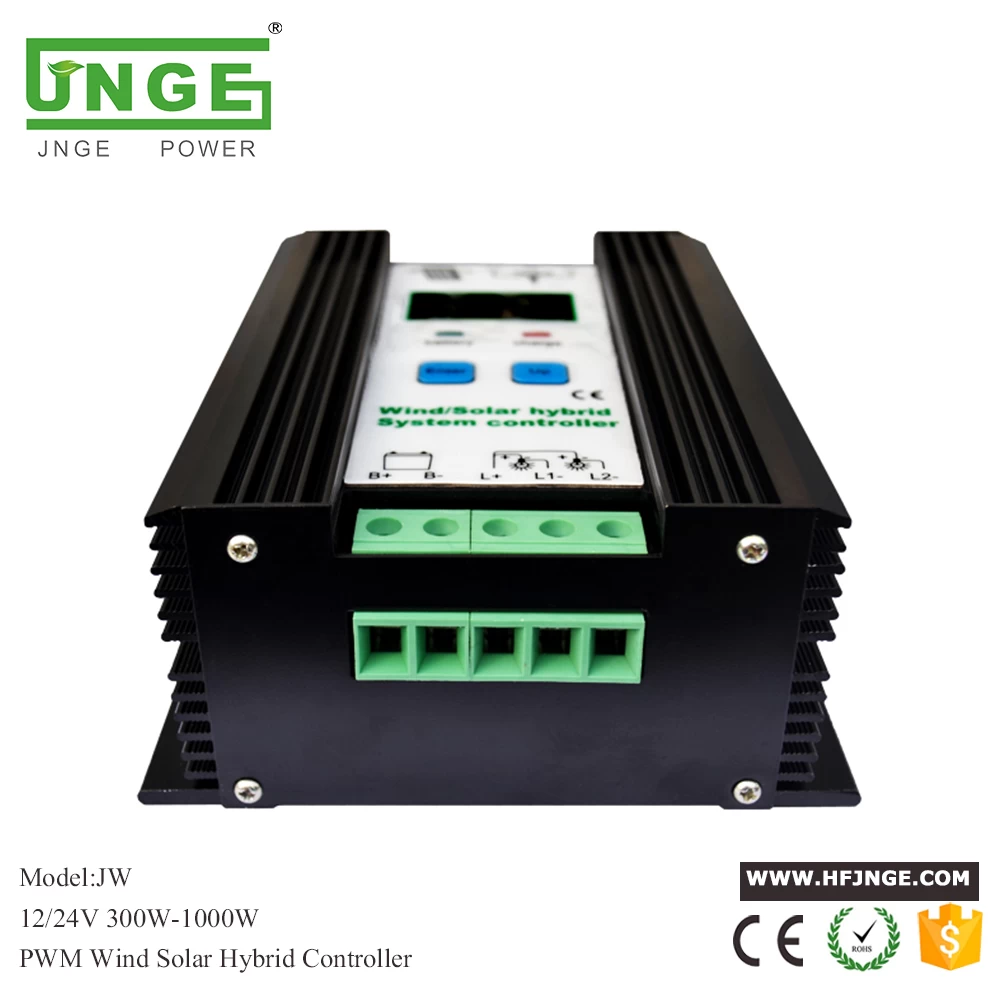

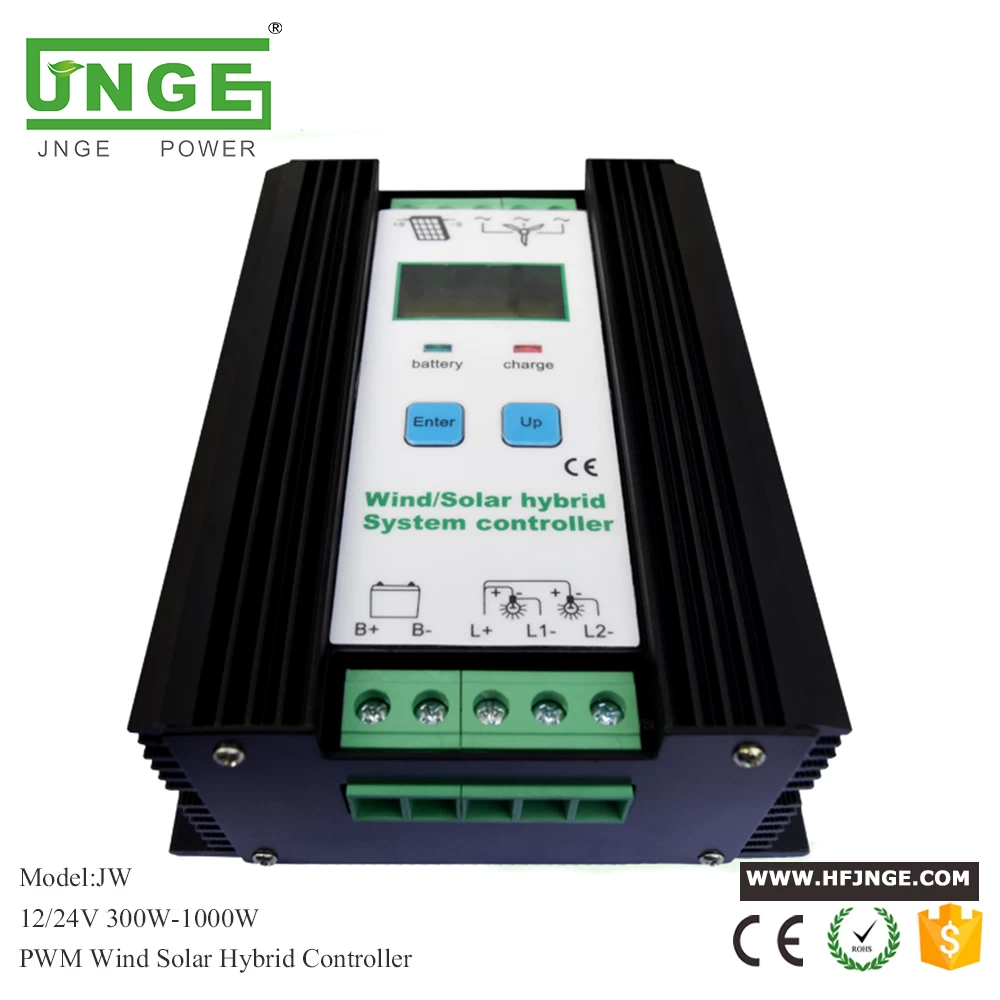

PWM Wind Solar Hybrid System Controller 12v/24v Auto

1.Intelligent design succinct structure, control powerful, stable performance, safety and reliability of the products.
2.Use PWM step less unloading way.LCD display battery voltage and power.
3.Professional digital intelligent control.
4.Perfect protection. CE testing approval.



Product Features:

1.  Intelligent design, simple structure,control powerful,stable performance,safety and reliability
2.  Digital intelligent control
3.  Booster charge function, low wind speed can charging
4.  LCD display, all parameters are visible directly
5.  Liquid crystal display battery charging electric current and voltage


Product Parameters:

Model

JW1230

JW2430

JW2450

JW2460

Rated voltage

12V

24V

24V

24V

Component power

200W

150W

250W

400W

Power of fan

300W

300W

500W

600W







Charging

Charging Current

30A

20A

23A

41.6A

Equalizing charge protection

14.4V±1%

28.8V±1%

Floating Charge

13.8V±1%

27.6V±1%

Equalizing charge recover

13.2V±1%

26.4V±1%

Temperature Compensation

-24mV/℃

-48mV/℃


Over Discharge

Shut off (DC)

10.8V±1%

21.8V±1%

Resume (DC)

12.3V±1%

24.6V±1%


Over Voltage

Shut off (DC)

16V±1%

32V±1%

Resume (DC)

15V±1%

30V±1%

No-load Current

≤0.1A

≤0.1A

Voltage drop (DC)

≤0.5

Control mode

Fan MPPT charge function, PWM uninstall function, PWM over-current limiting

Boost charge

Flexible independent step-up circuit (optional)

Display

Display

Show parameters

voltage、charge current,battery volumetric

Protected type

Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection, over speed and over-voltage soft automatic brake protection, overload protection.

Heat emanation way

radiator

Working Temperature

-25℃~+55℃

Height

≤5500m(2000m above the need to reduce power use)

Environment humidity

0~90%,No condensation

Net Weight

1.20KG

Size(L*W*H)

162×140×64(MM)


Related Products:

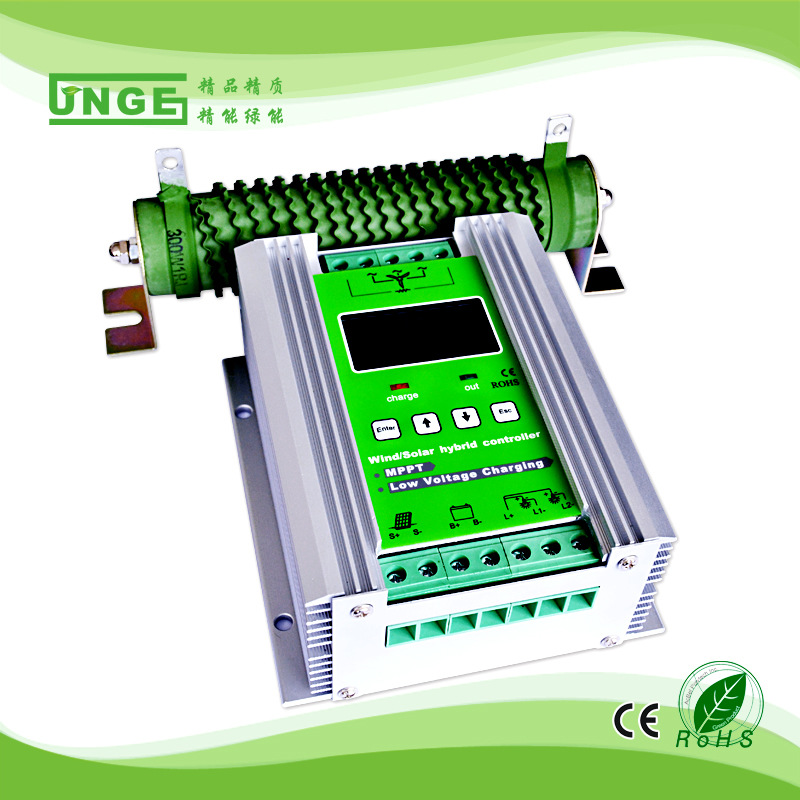

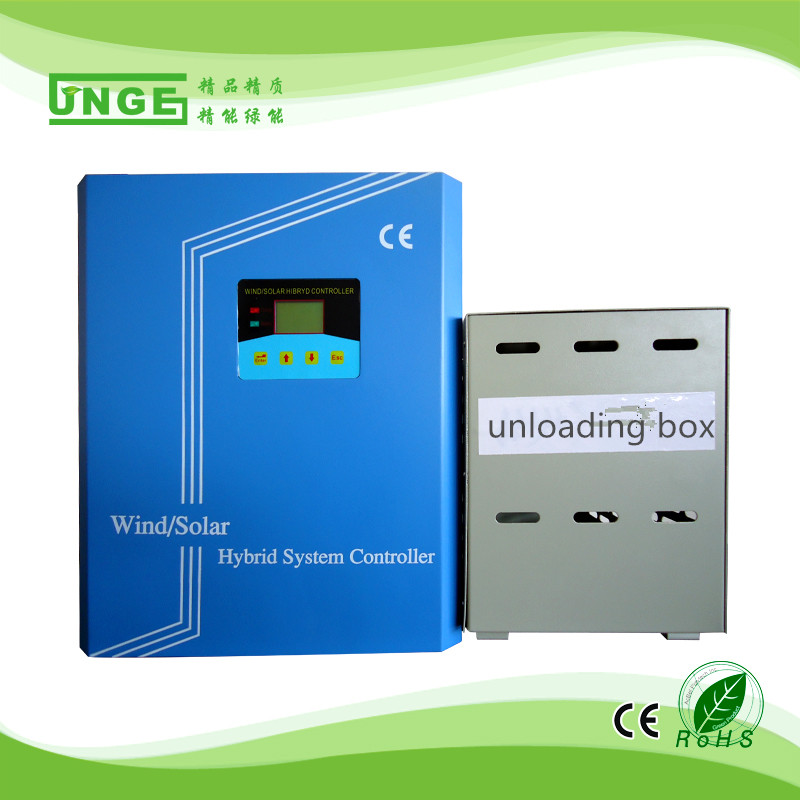

mppt wind solar controller factory big power wind solar hybrid controller 1000w
