Q355B Steel Ground Screw Piers

1.Model NO:AL-20201110-02

2.Product Name: Q355B Steel Solar Ground Helical Screw Manufacturer

3.Outer diameter: 76mm（OEM / ODM）

4.Length: 1000~3000mm（OEM / ODM）

5.Thickness: 3~3.5mm

6.Nut diameter(special option): m12*35（OEM / ODM)

7.Surface: hot dip galvanizing

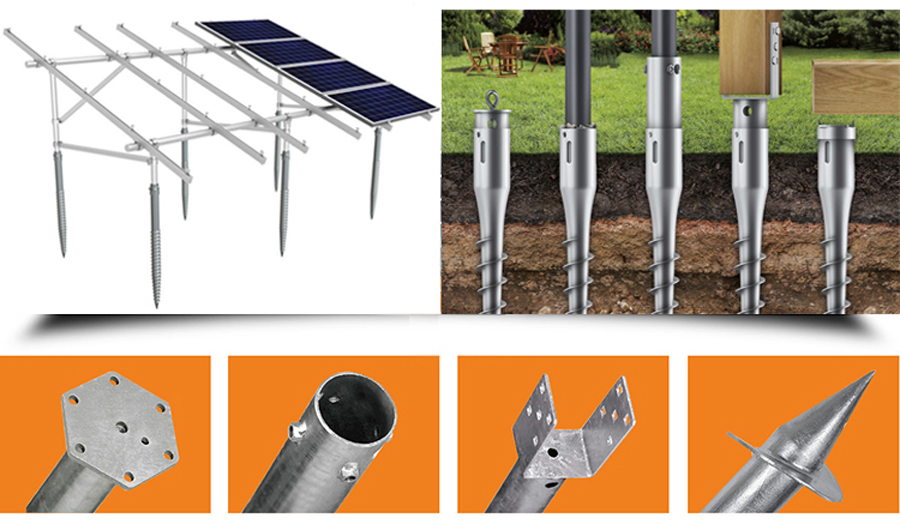

8.Application: solar mounting system,fencing system,streetlight, sheds,city parks & containers

9.MOQ:100 pcs

Facebook Twitter Pinterest LinkedIn 分享

Description

OEM adjustable ground screws come with a durable hot dipped galvanized coating that will protect them from corrosion.

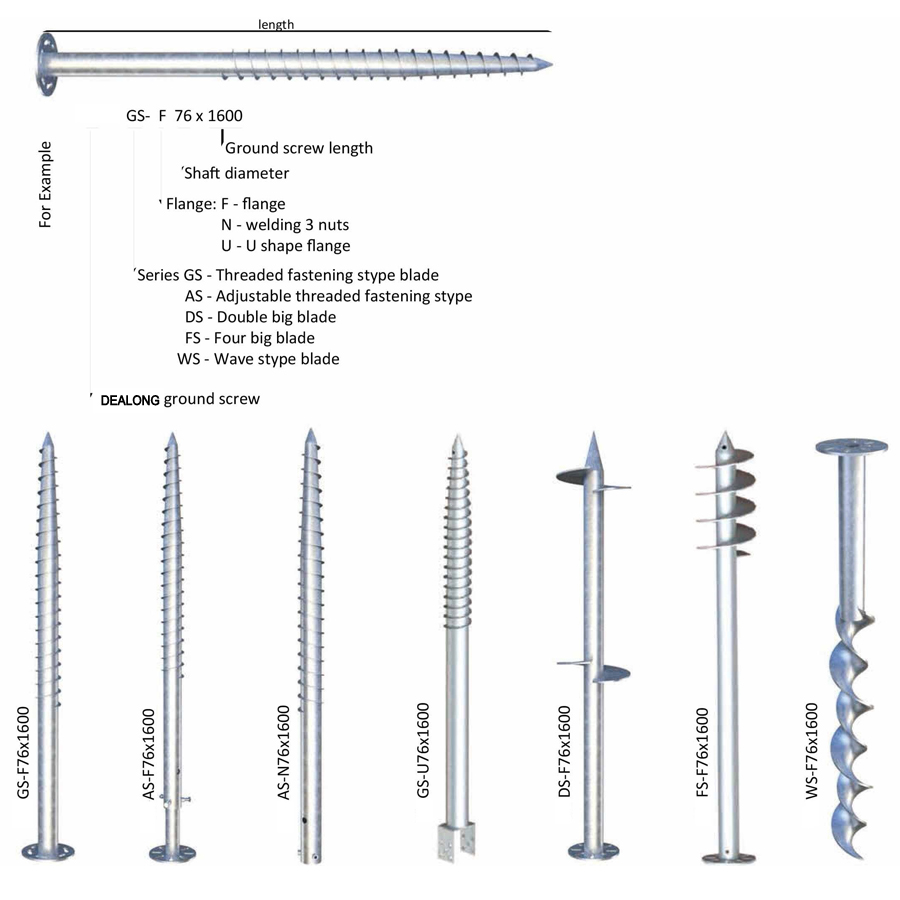

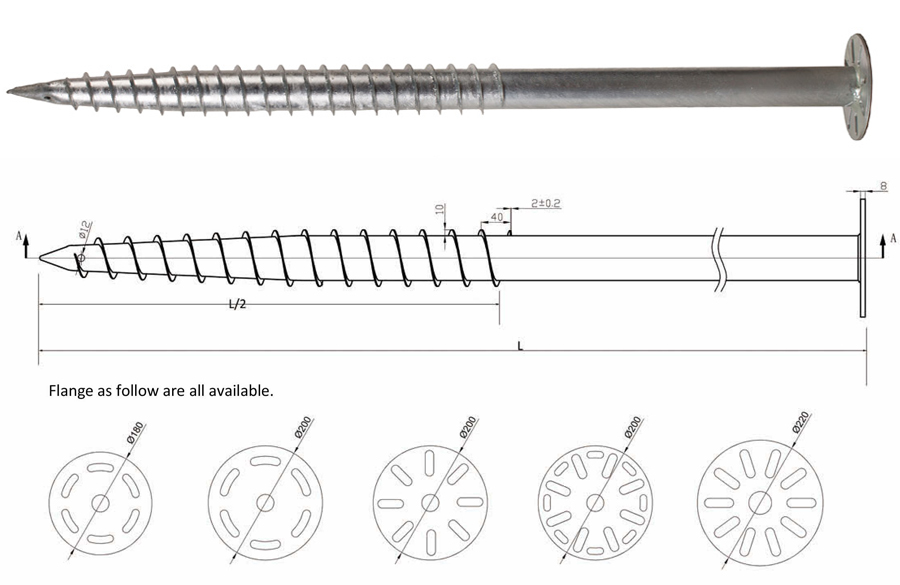

Normal ground screw with flange
Item NO.	Length(mm)	Dia.of flange(mm)	Minium galvnized thickness (um)	OD(mm)	Thickness of tube(mm)	Remarks(mm)
F76-1200-T3	1200	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-1400-T3	1400	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-1600-T3	1600	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-1800-T3	1800	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-2000-T3	2000	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-2400-T3	2400	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-2500-T3	2500	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
F76-3000-T3	3000	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-1600-T3	1600	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-1800-T3	1800	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-2000-T3	2000	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-2100-T3	2100	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-2400-T3	2400	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-2500-T3	2500	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
22F76-3000-T3	3000	200，T8.0	＞80	76	3（tolerances±0.25）	spiral piece Spec.12*T2
Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.

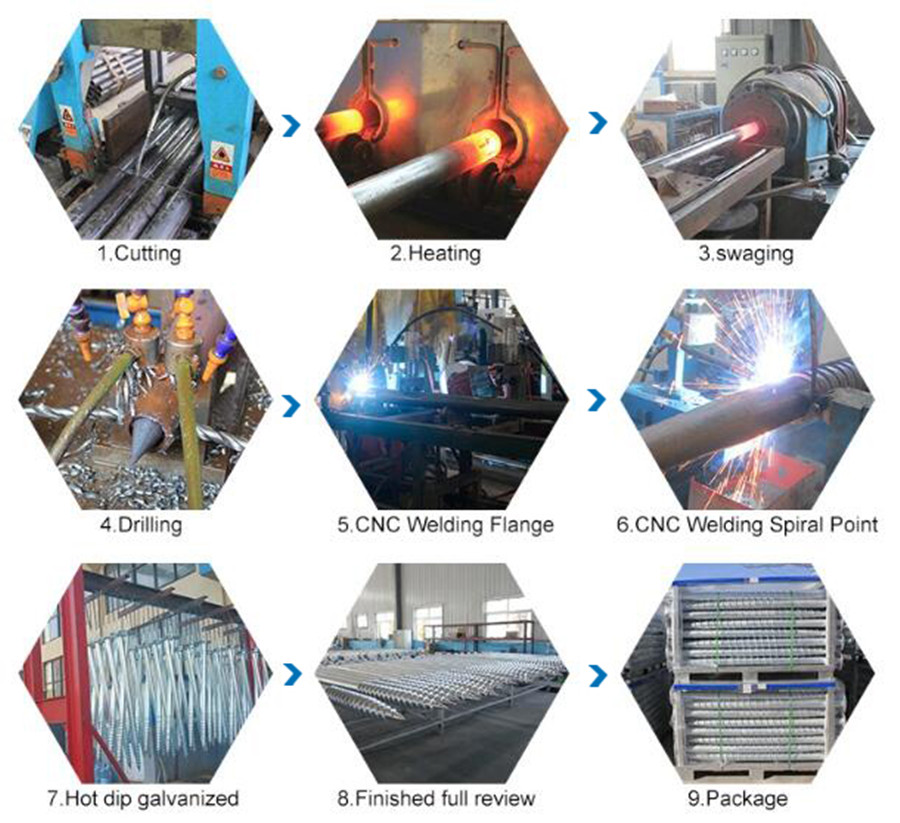

Production process of ground screws

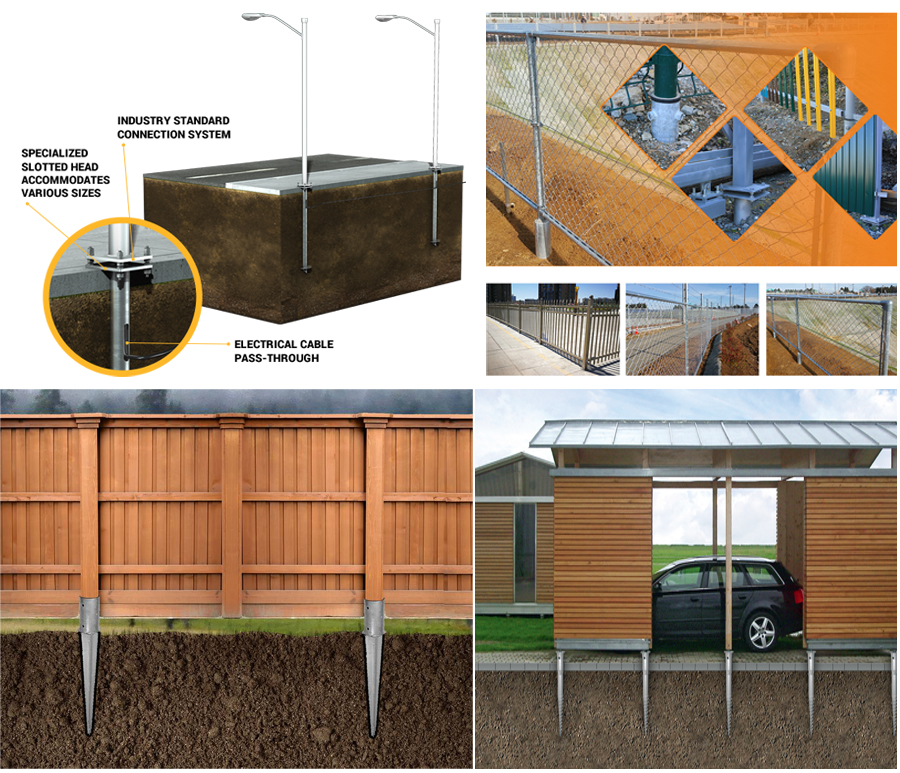

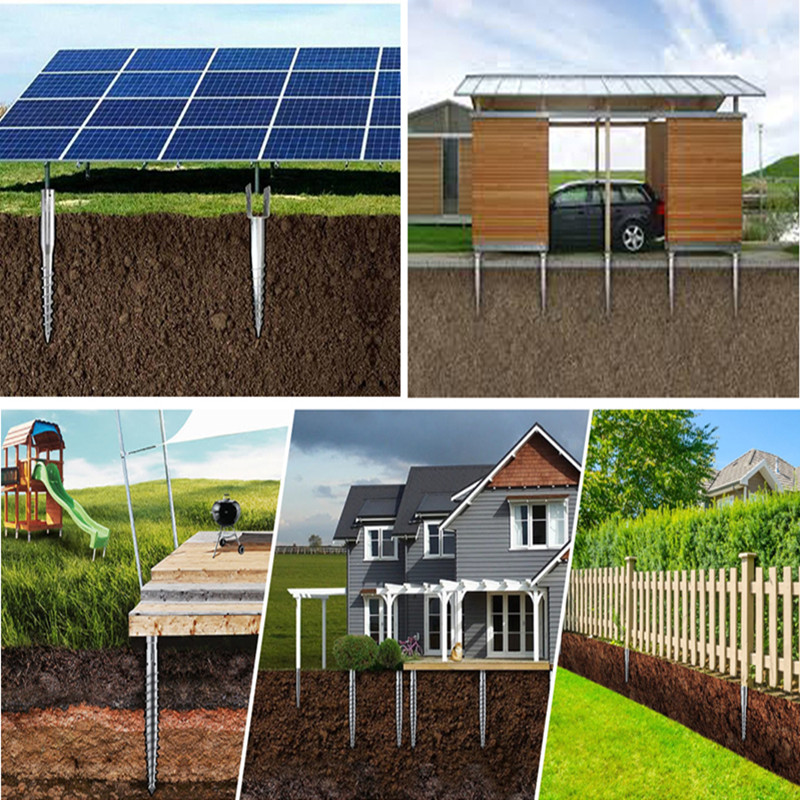

Application of ground screws

Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.

Company certifications
