Paper type: Thermal paper
Paper width:80mm
Color:Black
Resolution: 8 dots/mm,576dots/line
Specification:
|
Print
|
Printing Method
|
Thermal Line
|
|
Printing Speed
|
100-150mm/s
|
|
Resolution
|
8 dots/mm,576 dots/line
|
|
Effective Printing Width
|
72mm
|
|
Character
|
Character Set
|
ASCII,GB2312-80(Chinese)
|
|
Print Font
|
ANK:(8x16,9x17,9x24,12x24), Chinese: 24x24
|
|
Paper Spec.
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
80mm
|
|
Paper Roll Diameter
|
Max: 50mm
|
|
Reliability
|
MCBF
|
5 million lines
|
|

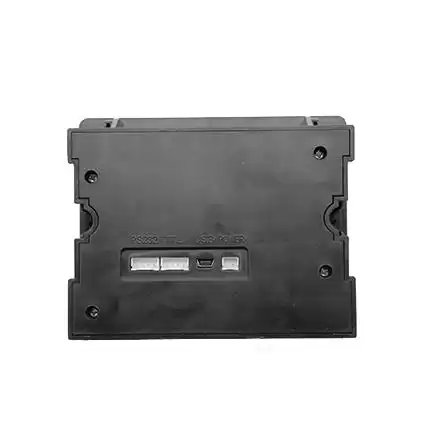

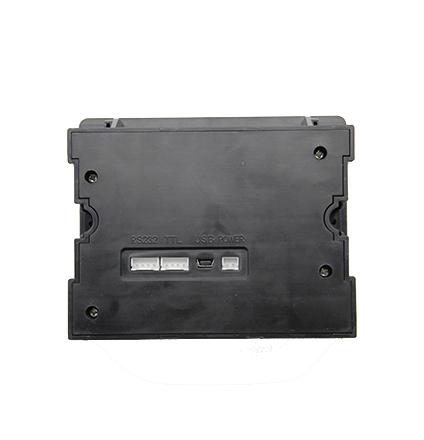

Interface
|
Serial (RS232/TTL)+USB
|
|
Power Supply (Adapter)
|
DC9V/24V
|
|
Physical
|
Outline Dimension (WxDxH)
|
135x112x62mm
|
|
Installation Port Size
|
129x 106 x60mm
|
|
Color
|
Black
|
|
Environment
|
Operating Temp
|
5°C ~ 50°C
|
|
Operating Humidity
|
10% ~ 80%
|
|
Storage Temp
|
-20°C ~ 60°C
|
|
Storage Humidity
|
10% ~ 90%
|
