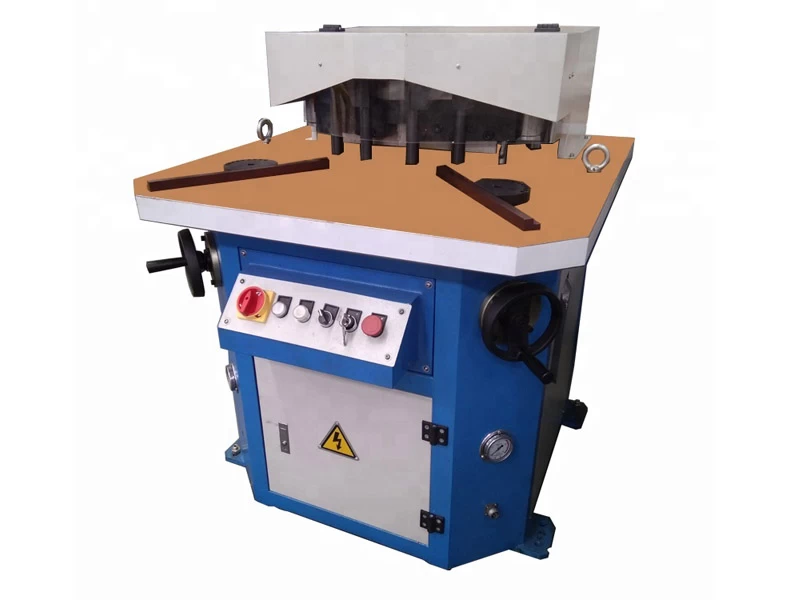

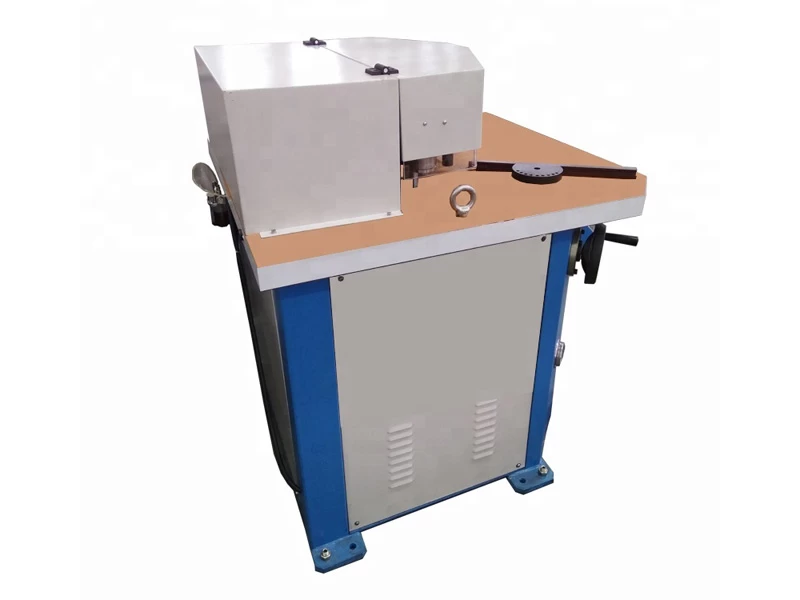

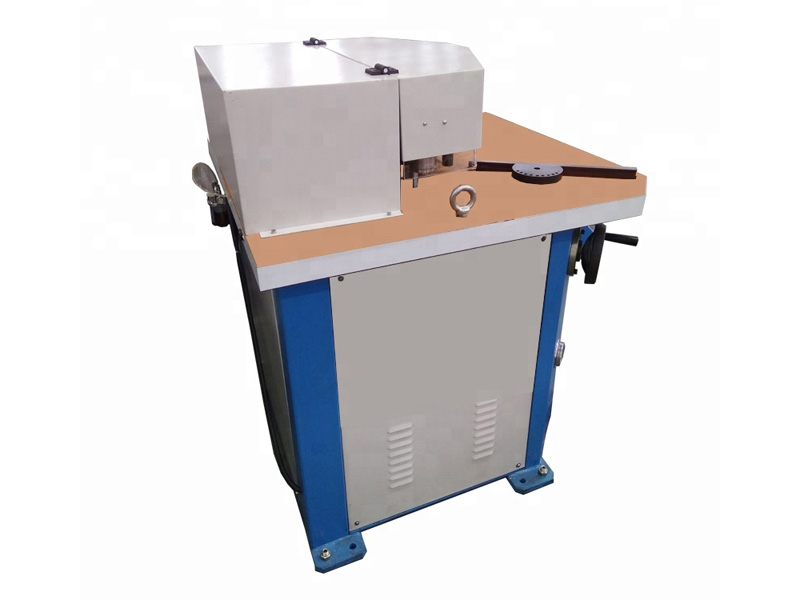

Product Item:Variable Angle Hydraulic Corner Notcher Machine
Variable Angle Cutting Machine Main Features:
1.Hydraulic bottom‐drive, Integral cast steel ensures the cutting accuracy and service life.
2.Variable Angle Cutting Machine can cutting angle from 40‐135 degrees.
3.High‐carbon chromium alloy, adjustable double‐edged blade.Cutting gap quick adjustment, double protractor can symmetrically or separately adjust the cutting angle Notcher Cutting Machine.
4.High‐quality worktable, concentrated buttons, pedal switch, convenient and high‐efficiency.
5.Large orktable fixed clamp eliminates plate torque when cutting, visible and transparent safety shield.
6.Optional double workbenches, rectangle shearing dies, press brake dies, punching dies.
Hydraulic Corner Notcher Technical Parameter:
|
Model
|
Cutting
Thickness
(mm)
|
Cutting
Length (mm)
|
Angle (degree)
|
Stroke (N/min)
|
Table
Height
(mm)
|
Motor
(kw)
|
Overall Size (mm)
|
N.W
(kgs)
|
|
|
4*200
|
0.5-4.0
|
200
|
45-135
|
≥ 35
|
850
|
3
|
890*870*1080
|
860
|
|
|
6*220
|
0.5-6.0
|
220
|
45-135
|
≥ 30
|
850
|
4
|
950*920*1150
|
970
|
Variable Angle Corner Notcher Standard / Optional Configuration List:
|
No
|
Accessory
|
Brand
|
Other
|
|
1
|
Electric
|
ZHNT‐China
|
Standard
|
|
2
|
Motor
|
TEKONG‐Nanjing
|
|
3
|
Valve Block
|
TAIFENG‐China
|
|
4
|
Oil Pump
|
HANGFA‐Shanghai
|
|
5
|
Pedal Switch
|
People Appliance‐Shanghai
|
|
6
|
Electric
|
Schneider‐France
|
Optional
|
|
7
|
Motor
|
Siemens‐Germany
|
|
8
|
Valve Block
|
Bosch Rexroth‐Germany
|
|
9
|
Oil Pump
|
Sunny‐USA
|
|
10
|
Pedal Switch
|
KACON‐South Korea
|
