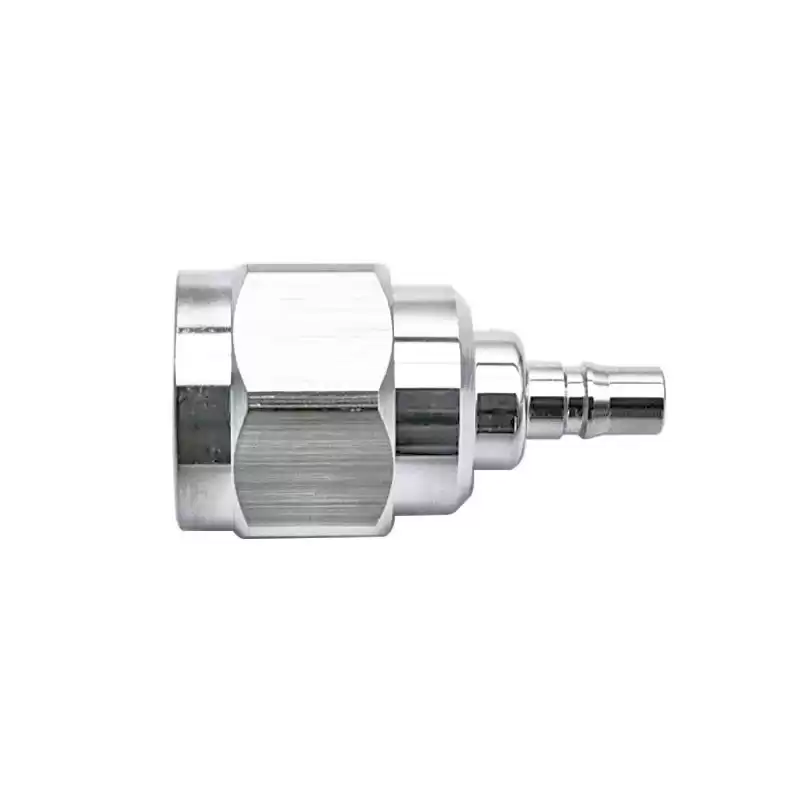

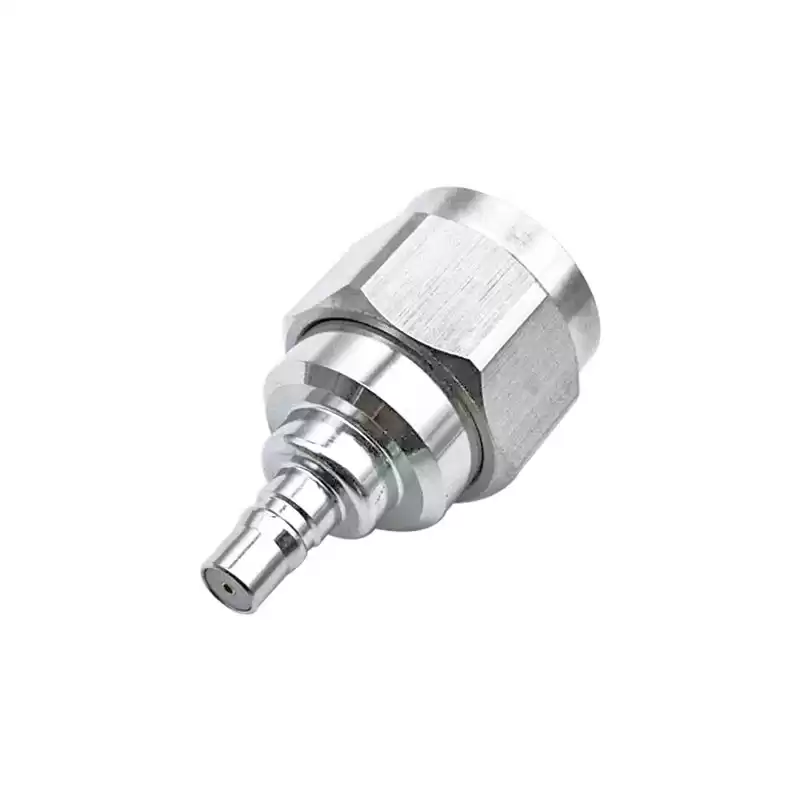

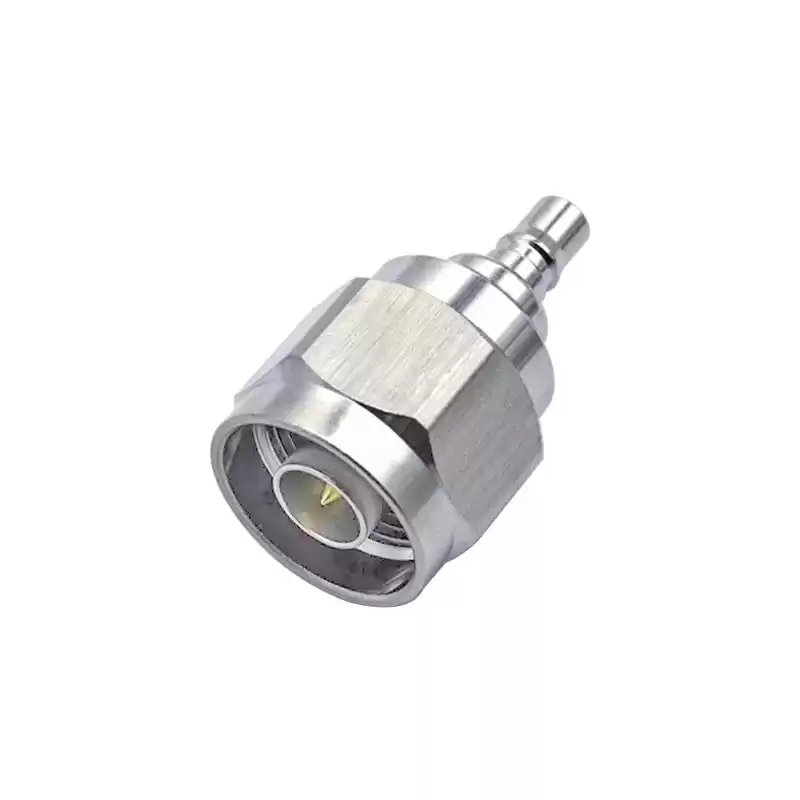

QMA Female to N Male RF Coaxial Connector Adaptor
The QMA Adapter has different QMA to N adapter gender, is a between series coaxial adapter. The QMA to N adapters has female to male, female to female, male to female or male to male gender varieties. This QMA female to N male adapter has a maximum frequency of 11GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
QMA |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
QMA |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
11 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Base stations
- Wireless LAN
- Broadcast systems
- Microwave Radio
- Radar equipment
- Satellite systems
