QMA Male to QMA Female RF Coaxial Connector Adapter
QMA adapters Features：
- Allow to interface QMA connectors with QMA, N or SMA connectors;
- Has female to male or male to female gender varieties;
- Quick disconnect version of the SMA adaptor and shares the same internal construction;
- Excellent performance up to 18GHz;
- Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage;
- QMA series offers a more convenient installation than SMA;
- The interface mates with a snap-on instead of a threaded coupling, has a significant time advantage.

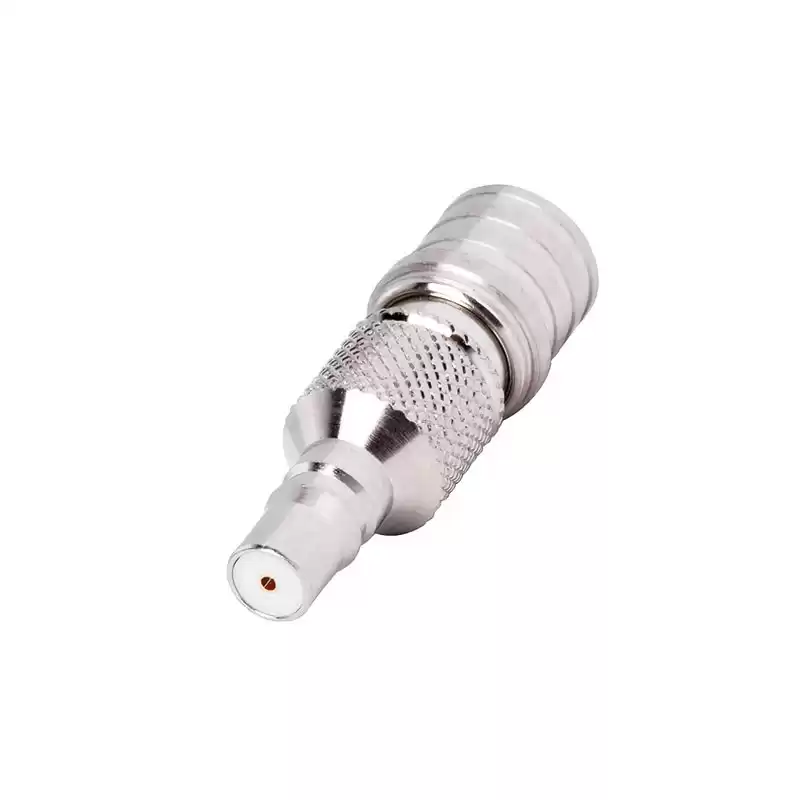

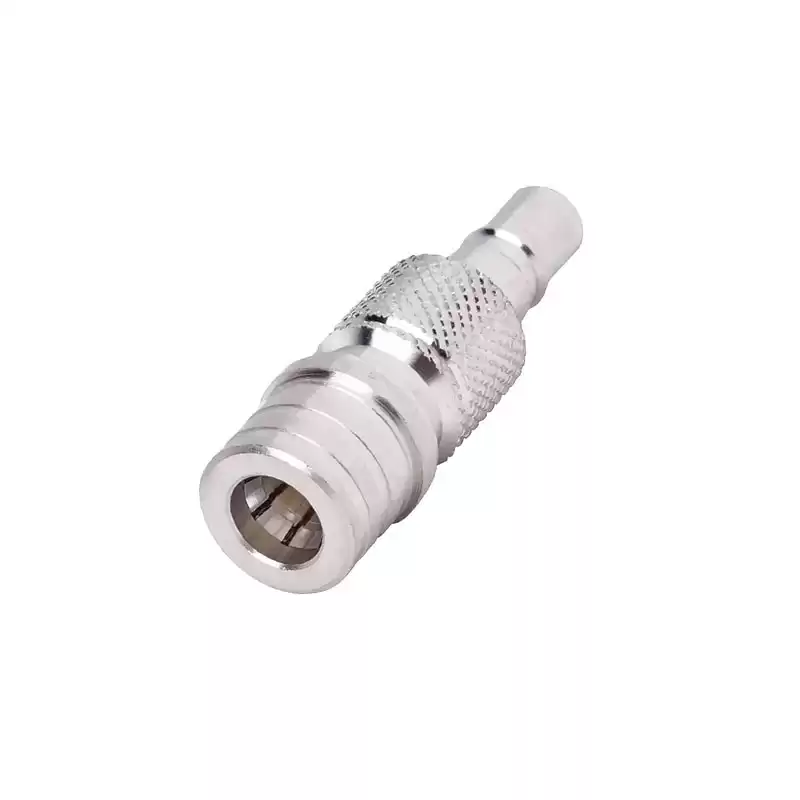

QMA Male to QMA Female RF Coaxial Connector Adapter
The QMA Adapter has different QMA to QMA adapter gender, is a series coaxial adapter. The QMA to QMA adapters has female to male, female to female or male to male gender varieties. This QMA male to QMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | QMA |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | QMA |
| Adapter Side 2 Style | Female |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| ELECTRICAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Base stations
- Wireless LAN
- Broadcast systems
- Microwave Radio
- Radar equipment
- Satellite systems
