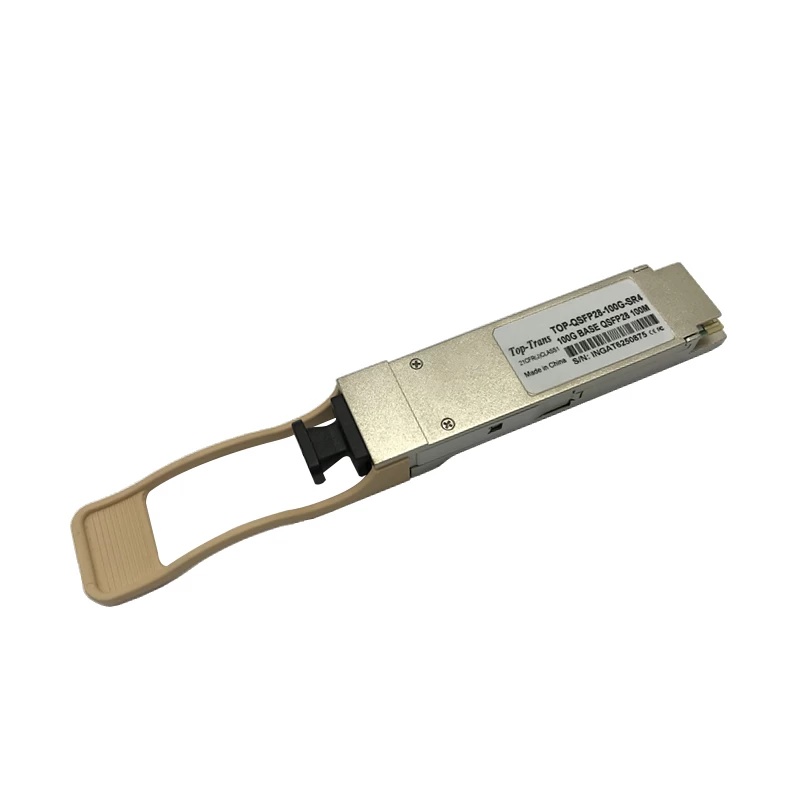

QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM Transceiver Module Compatible Cisco Juniper Bracode

Product Details

Cisco Compatible QSFP-100G-SR4-S Vendor Name FS
Form Type QSFP28 Max Data Rate 103.1 Gbps
Wavelength 850nm Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12 Transmitter Type VCSEL 850nm
Cable Type MMF DDM/DOM Supported
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Protocols 100G Ethernet, MSA Compliant Commercial Temperature Range 0 to 70°C (32 to 158°F)


  • Warranty1 Year
  • ConditionNew
  • Temperature0 to 70°C
  • Data Rate103.1 Gbps
  • Distance100m
  • Wavelength850nm
  • ConnectorMTP/MPO-12
Facebook Twitter Pinterest LinkedIn 分享

Product Details

Cisco Compatible QSFP-100G-SR4-S Vendor Name FS
Form Type QSFP28 Max Data Rate 103.1 Gbps
Wavelength 850nm Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12 Transmitter Type VCSEL 850nm
Cable Type MMF DDM/DOM Supported
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Protocols 100G Ethernet, MSA Compliant Commercial Temperature Range 0 to 70°C (32 to 158°F)
