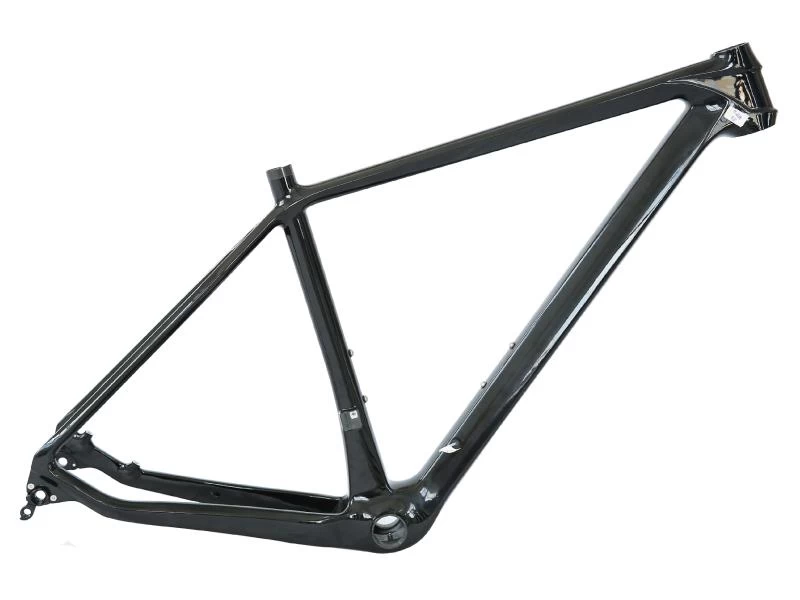

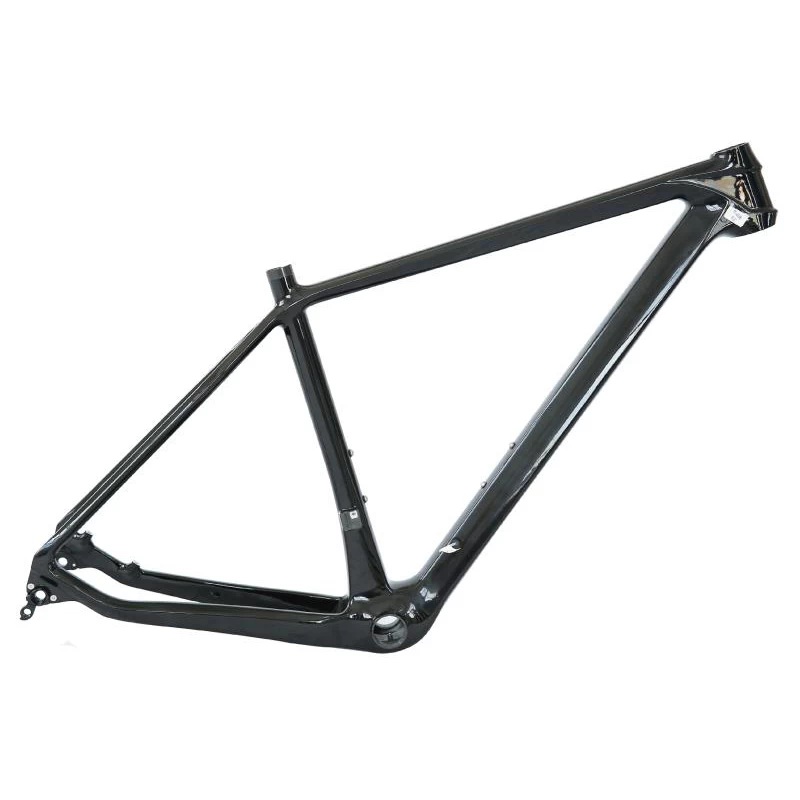

QTOUR 29'' Carbon Mountain Bike Frame

ADVANTAGES:
1, Material: Toho carbon fiber.
2, EPS foam molding process, inner smoothly, better strength.
3, Customized painting / Decals is acceptable.
4, Strict develop test and mass production test. (exceed 30% of ISO4210)

PRODUCTS DESCRIPTION:

Light weight carbon mountain bike frame, with diameter 12mm*148mm thru axle or diameter 10mm*135mmquick release, fit suspension fork, and 2.1''*29'' tire, with small middle large full size 17.5'' / 19'' / 21'';

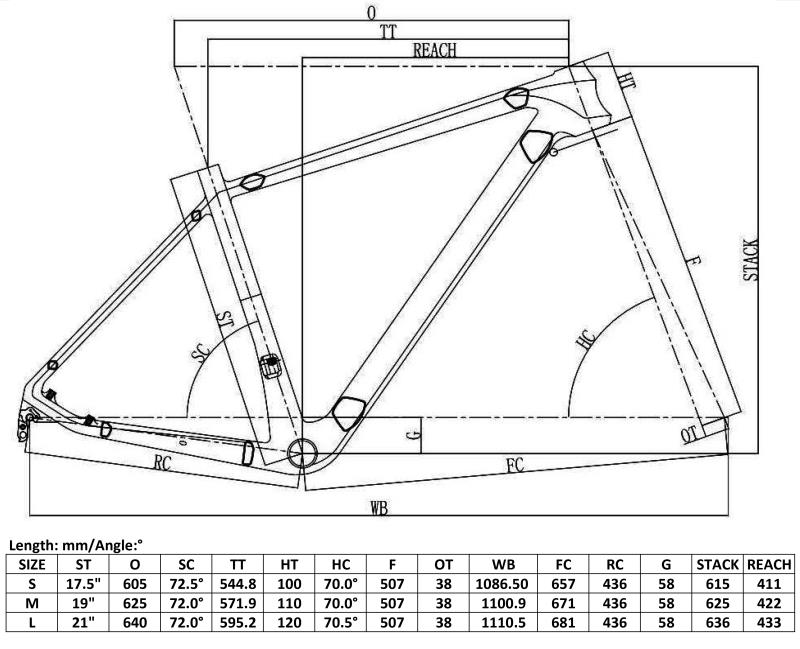

PRODUCTS DETAIL:

1. Frame: QTOUR 29er Full Carbon MTB Frame
2. Model: M05
3. Brake: Disc Brake (Post Mount)
4. Size: 17.5'' 19'' 21''
5. Headtube: Tappered 1-1-/8'', 1-1/2''
6. Seatpost: 31.6mm
7. Bottom Bracket: BB92 Press Fit
8. O.L.D: 142mm*φ12mm (TA), 135mm*10mm(QR)
9. Weight: 1020±50(17.5'') / 1100±50(17.5'')
10. Max Tire: 29''*2.1''
11. Finish: UD
12. Test Standards: EN/ISO4210
13. Warranty: 2 years

OUR FACTORY:

1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.

    Our plant covers 8.5 acres, 42,000m² workshop, 450m² testing room.

2, We have over 10 years production experience in carbon fibre business.

3, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,

    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.

4, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.

5, Small order and sample order are accepted, OEM & ODM avilable too.
