ADVANTAGE:
1, Material: Toho Carbon Fiber (from Japan).
2, EPS + Latex molding process, inner smooth, better strength.
3, Customized painting /decal is acceptable.
4, Strict develop test and mass production test. (exceed 30% of the ISO4210)
PRODUCTS DESCRIPTION:

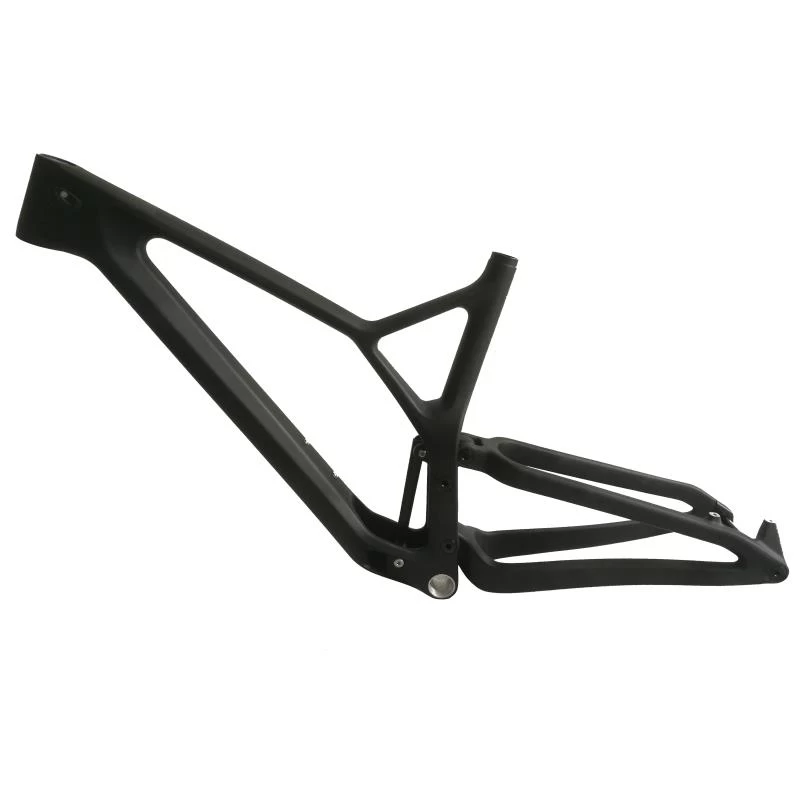

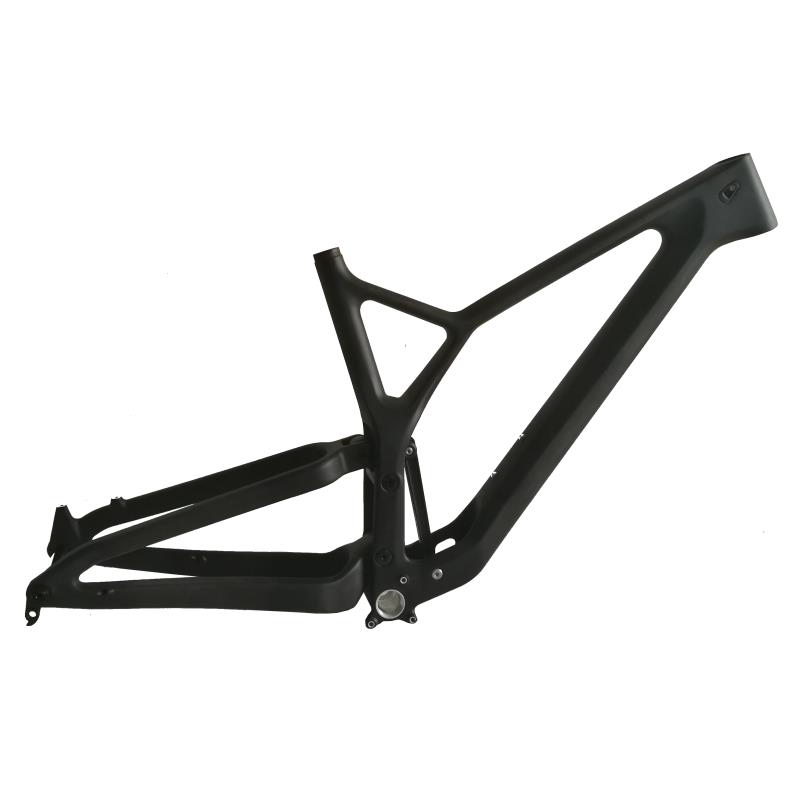

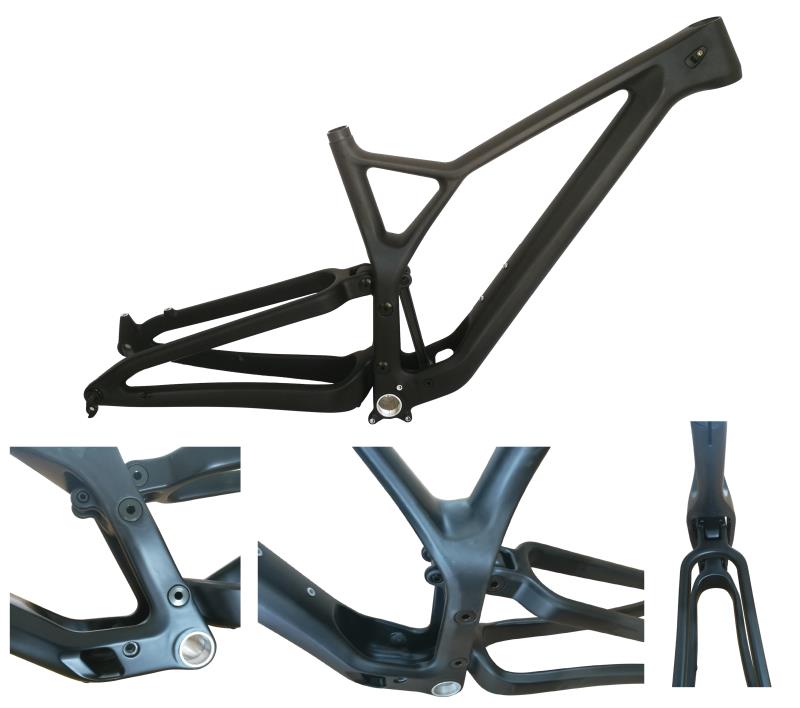

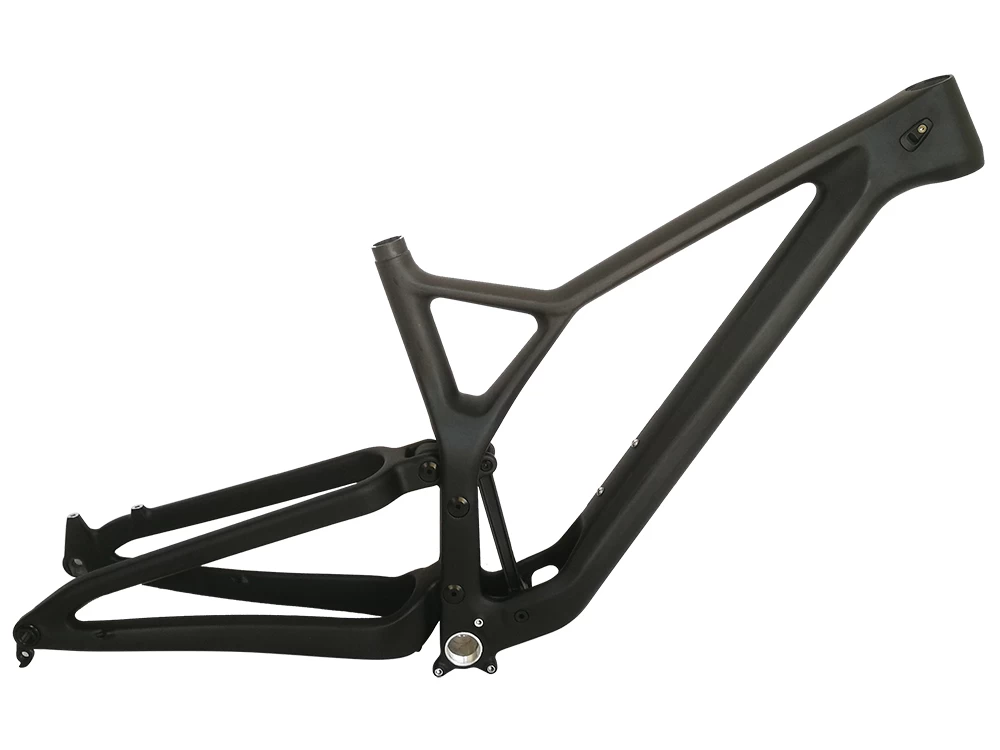

QTOUR full carbon 29'' suspension XC trail / enduro MTB frame, with carbon pivot, you could hides all cables between the rear triangle and the main frame, as well as the cables of electric shock and dropper seatpost.
PRODUCT DETAIL:
Frame: QTOUR 29er full suspension frame
Model: M06
Material: High modulus Toho Carbon Fiber

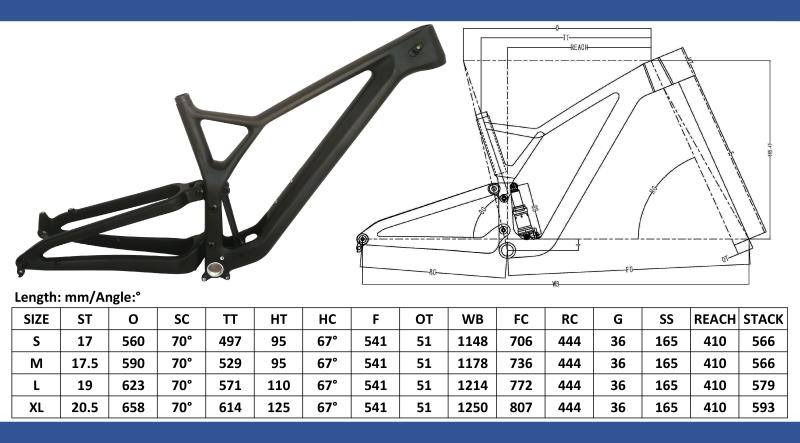

Size: 17.5'' / 19'' / 20.5''
Travel: 130mm-150mm
Rear Shock: 165*45mm trunnion mount rear shock
Headtube: Tapered 1-1/8'', 1-1/2'' (Headset: FSA NO.42ACB)
Seatpost: 31.6mm (37 Clamp)
Bottom Bracket: BSA-73
O.L.D (Frame): φ12*148mm boost thru axle
Weight: 2250g±50g
Max Tire: 29''*2.35'' / 27.5''*2.8''

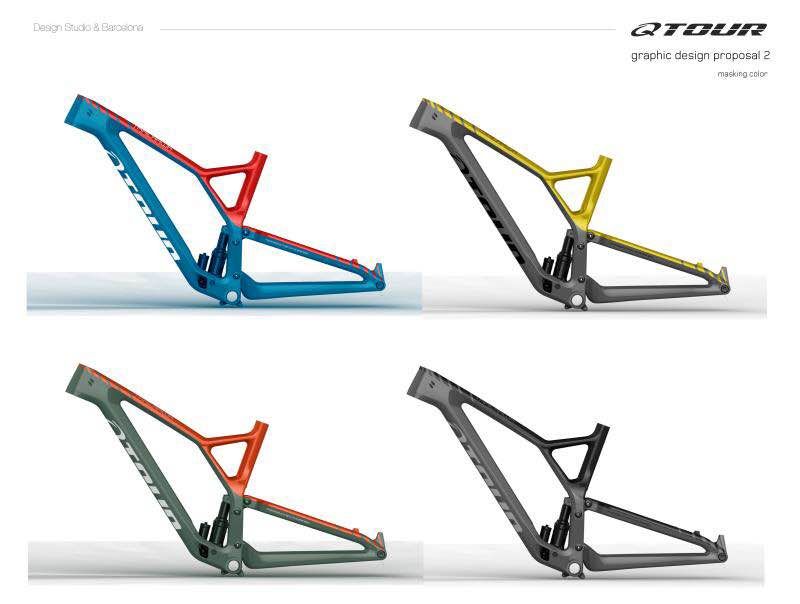

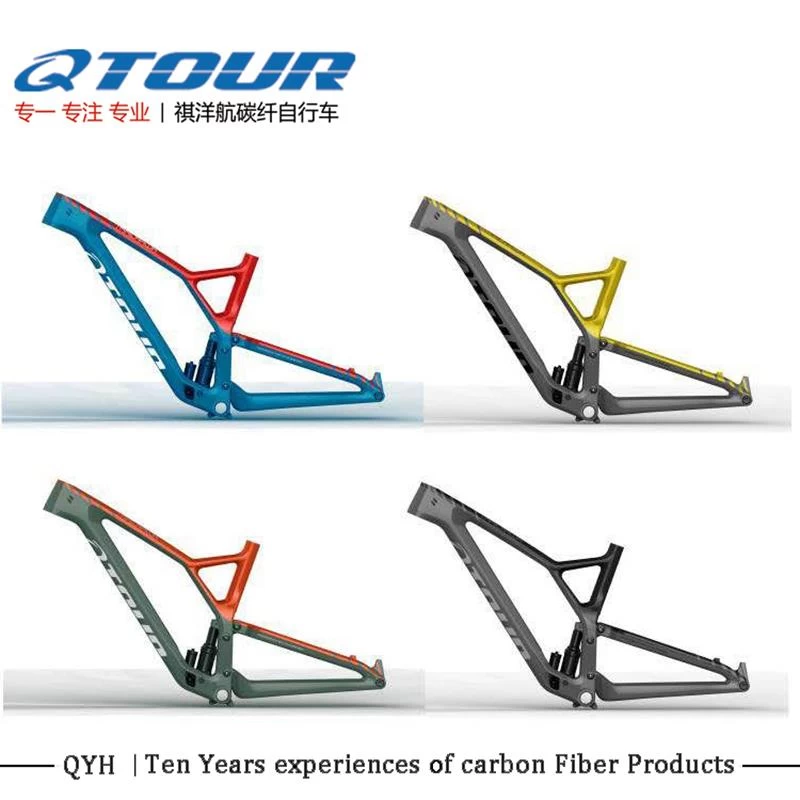

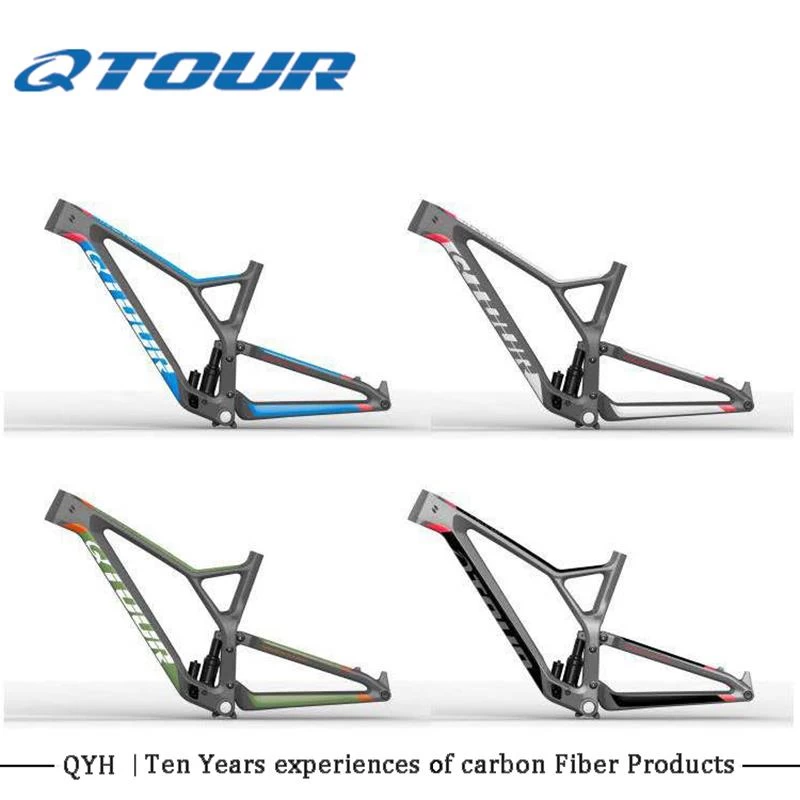

Finish: UD matt / glossy (customized painting acceptable)
Test Standards: EN / ISO4210
Warranty: 2 years
Notes:

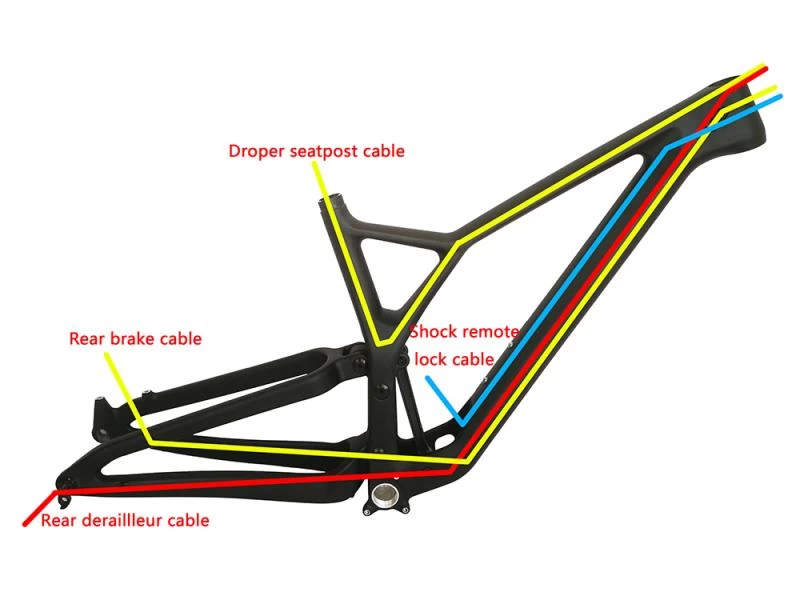

1. The rear derailleur cable routing and brake cable routing have molded guide tube into the frame
2. Before releasing the frame the white guide tube will be routed in the frame for help customer routing the cables.
OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year：
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.
Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.
