QTZ160(5523) 10t Big Capacity High Effeciency Construction Tower Crane
Brief introduction
1. new condition tower crane/hydraulic self erecting tower crane/construction tower crane
2. China-made high quality tower crane, China good tower crane manufacturers
3. high efficiency, CE, ISO, GOST certificates

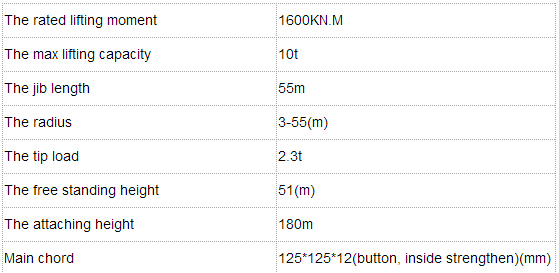

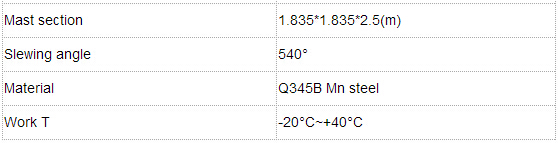

Technical data

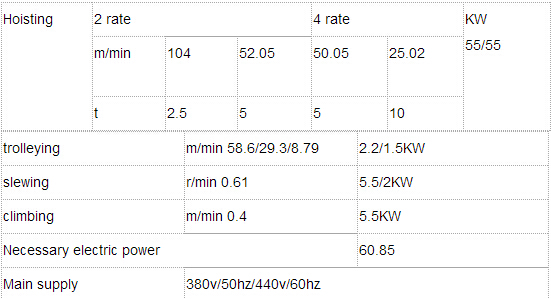

Mechanism specification
The features of 10t tower crane QTZ160(5523)
1) It adopts standard section hydraulic lifting and connecting, and can decide the crane height according to the actual height of the building, and at the same time the lifting capacity will not be affected. The max. Attached height can reach 180m.
2) It has high working speed, good speed-adjusting performance, steady operation and high efficiency. Three-speed motor and mono-speed ratio decelerator is applied in the lifting mechanism, which enables heavy load low speed and light load high speed.
3) The range-change structure drives the dolly to change range on the horizontal arm, with good positioning performance.
4) Planet gear decelerator is applied in the slewing structure, together with moment-limiting hydraulic coupler, which cans realize high load capacity, steady starting and reliable operation.
5) The crane has complete set of safety devices, which can guarantee the safe and high efficient operation of the equipment. The machine is equipped with lifting height limiter, dolly range-change limiter, moment limiter, weight limiter, slewing limiter, etc.
Commercial Term
Delivery time: 15-30 days after receiving 30% advanced payment
Trade terms: FOB (Qingdao)
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Package: nude in 12*40"HQ containers for 51(m) of QTZ160(5523) tower crane
Warranty: At least 12 months
Service
----Providing timely delivery, intime shipping notice.
----Providing all-embraced warranty of products quality, worksite installation guidance
----Providing ample spare parts and training of operation and maintenance
----Engineers have more than 20 years' experience in tower crane, ready to solve your problems.
