QTZ40 Upper-swing Building Tower Crane
QTZ40 Building tower crane belong to upper-swing hydraulic building tower crane with horizontal jib, winch-jib. All kinds of performance parameters and technical items are up to or better than the National Standard. The max radius is 48m. Independent loading-lifting height is 29m. Attaching loading-lifting height is 120m. The rated load moment is 400 KN.m .

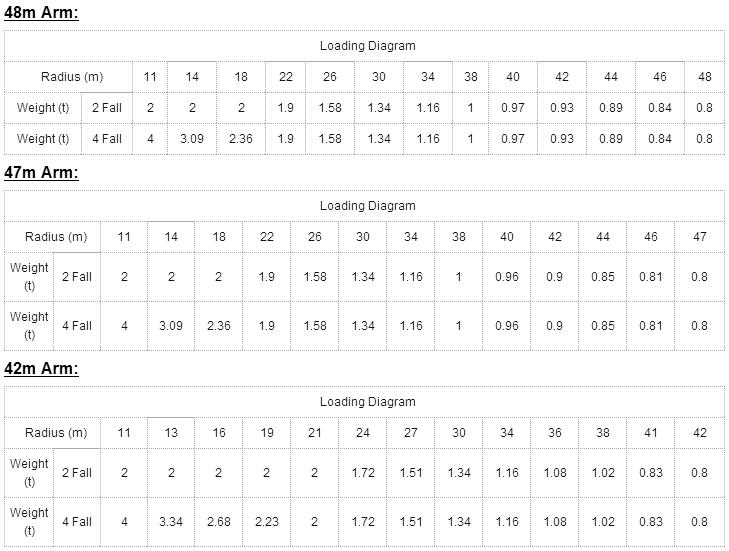

QTZ40 tower crane Loading diagram
Parameters
Rated lifting moment (kN.m)
|
400
|
Lifting height (m)
|
Free-standing stationary crane
|
Anchored crane
|
|
29
|
120
|
Working radius (m)
|
Max. working radius
|
48
|
|
Min. working radius
|
11
|
Max. lifting capacity (t)
|
4
|
Hoisting mechanism
|
Rope fall
|
α＝2
|
α＝4
|
|
Speed (m/min)
|
10.8
|
35
|
70
|
5.4
|
17.5
|
35
|
|
Lifting weight (t)
|
2
|
2
|
0.8
|
4
|
4
|
1.6
|
|
Power(kW)
|
15/15/4
|
Traction mechanism
|
Speed (m/min)
|
37.5/25
|
|
Power (kW)
|
2.2/1.5
|
Slewing mechanism
|
Speed (r/min)
|
0.62
|
|
Power (kW)
|
3.7
|
Safety devices:
1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
