QTZ50(5009) 4t fixed self-climbing building topkit tower crane

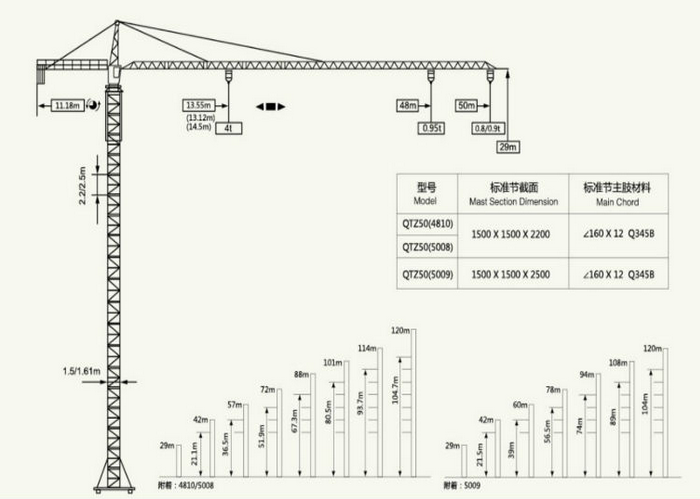

Parameter of hammerhead tower crane QTZ50(5009)
Tower Crane Model:QTZ50(5009)
1) Basic Height/free standing height: 29m
2) Max. Height:120m
3) Range /radius /jib length/work range :3-50m
4) Max.load 4T
5) Tip load 0.9T
6) Mast section Material : ∠160X160X12 angle steel/Q345B
7) Size of Mast Section (LX W X H): 1500 X1500 X2200mm
8) Collar ties / anchors, adhered sections/Situation :
Distance between first collar tie and the ground 22400mm
Other distance 16500mm
Suspension Height no more than 20m
9) Balanced Weight(counterweight)/ Jib Length:8.54t/50m,7.1t/44m
10) Total Power:25.9Kw
11)Rated Lifting Moment:400kN.m
Technical parameters of QTZ50(5009) 4t tower crane
Model
|
QTZ50 (5009)
|
Height
|
29m
|
Jim length
|
50m
|
Max. Load
|
4t
|
Tip Load
|
0.9t
|
Hoisting
|
Fall
|
2
|
| |
Speed(m/min)
|
10.8
|
35
|
70
|
| |
Cooresponding maximum load capacity weight(t)
|
2
|
2
|
0.8
|
| |
Power(kw)
|
15
|
15
|
3.5
|
Slewing
|
Slewing speed
|
0.6 r/min
|
| |
Power
|
5.5 kw
|
Derricking
|
Derricking speed
|
20m/min
|
| |
Power
|
1.5 kw
|
Jacking
|
Jacking speed
|
0.5 m/min
|
| |
Power
|
5.5 kw
|
Power total
|
28.4 kw
|
Types of QTZ50(5009) building tower cranes :
1."#" Beam Without Ballast;
2.Pre-embedded Four Outriggers Type;
3.Cross Beam Inclined Stay Bar With Ballast;
4.Cross Beam Inclined Stay Bar Without Ballast;
5.Traveling Type (Mobile) Tower cranes;
6.Inside Climbing.
Advantage of China 4t tower crane QTZ50(5009)
1. Robot automatic welding system;
2. Automatic impeller blasting and spraying assembly line;
3. CNC plasma cutting machine;
4. Precision machine tools;
5. France Schneider contactor;
6. Jiangte motor;
7. equipped with complete set of safety devices
8. CE and ISO 9001:2000 certificate
