QTZ63(5013) 6t Chip Mast Section Self-erecting Construction Tower Crane
QTZ63 tower crane, hydraulic self-erecting tower crane, tower crane best price

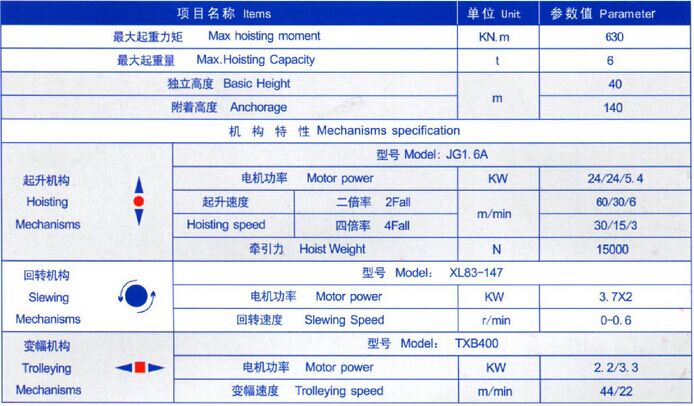

Main Technical Parameters-QTZ63 construction tower crane
Name
|
Unit
|
Parameters
|
Nominal lifting moment
|
KN.m
|
630
|
Max. lifting power
|
t
|
6
|
Rating lifting power at max. range
|
t
|
1.3
|
Work range
|
m
|
2-50
|
Lifting height
|
Independent
|
m
|
40
|
Attaching style
|
m
|
140
|
Lifting speed
|
m
|
Double magnification
|
Quadruple magnification
|
60/30/6
|
30/15/3
|
Circumgyrating speed
|
r/min
|
0-0.6
|
Range adjusting speed
|
m/min
|
44/00
|
Top lifting speed
|
m/min
|
0.5
|
Tower machine weight
|
Structure weight (independent style)
|
t
|
30.3
|
Counterweight
|
t
|
12
|
Complete machine weight (independent style)
|
t
|
42.3
|
Max. circumgyrating radius
|
m
|
51.25
|
Circumgyrating radius of tail
|
m
|
12.06
|
Max. wind speed at work
|
m/s
|
20
|
Wind speed at top lifting (not more than)
|
m/s
|
13
|
Environment temp. at work
|
°C
|
-20--+40
|
Name
|
Parameters
|
Lifting structure
|
Motor
|
Model
|
YZTD250M3-4/8/32
|
Power
|
24/24/5.4
|
Rotate speed
|
1420/700/140r/min
|
Arrester
|
Model
|
YWZ5-315/30
|
Arresting moment
|
630N.m
|
Hydraulic driving unit
|
YT1-90Z/6
|
Decelerator
|
Model
|
JZQ500
|
Center distance
|
500
|
Reduction rate
|
I=12.64
|
Steel cable
|
12NAT6X19 +NF1670ZS 93.14
|
Circumgyrating structure
|
Motor
|
Model
|
2-YD132S-4/8
|
Power
|
2-3.3/2.2KW
|
Rotate speed
|
1440/710
|
Decelerator
|
Model
|
XX4-80-195
|
Reduction rate
|
195
|
Arrester
|
DJZ-40
|
Hydraulic coupler
|
YOX250A input φ38 output φ32
|
Circumgyrating support
|
HSW.35.1250
|
Range adjusting structure
|
Motor
|
Model
|
YDEJ132S-4/8
|
Power
|
3.3/2.2KW
|
Rotate speed
|
1380/710
|
Decelerator
|
Model
|
BB45A
|
Reduction rate
|
I=36.13
|
Steel cable
|
8NAT6X19W+NF1570ZS 33.77
|
Top lifting structure
|
Motor
|
Model
|
Y132S-4 B5
|
Power
|
5.5KW
|
Rotate speed
|
1440r/min
|
Decelerator
|
Model
|
HSGK-160/110
|
Piston journey
|
1300
|
Hydraulic pump station
|
Work pressure 20Mpa, max. pressure 25MPa
|

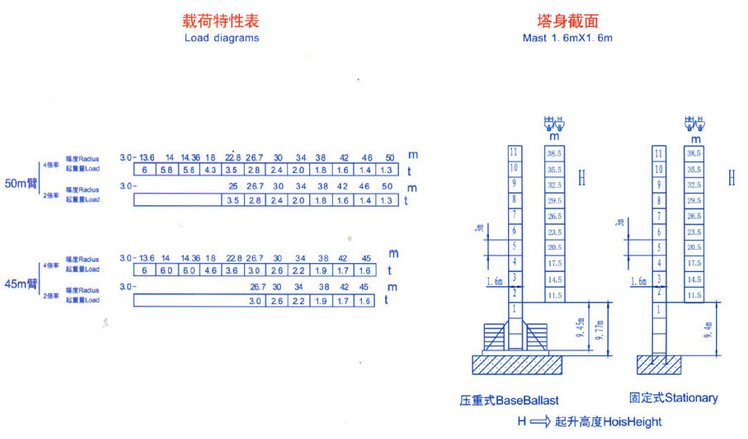

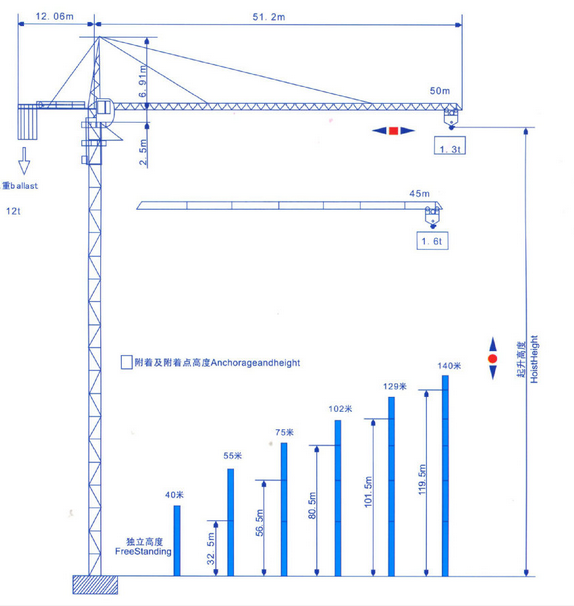

Characteristics of QTZ63-6T Self-erecting Tower Crane
1) QTZ63 tower crane has competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition.
2) This kind of crane adopts standard section hydraulic lifting and connecting, and can decide the crane height according to the actual height of the building, and at the same time the lifting capacity will not be affected; The max. attached height can reach 140m.
3) It has high working speed, good speed-adjusting performance, steady operation and high efficiency. Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which enables heavy load low speed and light load high speed.
4) The crane has complete set of safety devices, which can guarantee the safe and high efficienct operation of the equipment. The machine is equipped with lifting height limiter, dolly range-change limiter, moment limiter, weight limiter, circumgyrating limiter, etc.
5)The machine has scientific layout and beautiful appearance. The operator's room is set independently on one side, with good vision field. It creates a good working environment for the operator
Safety features:
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection.
FAQ:
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 years warranty.
If there is any quality problems of any parts (excluding easy worn spare parts) on our side during this period, we will supply the new one by free for replacement.
Q2: What is the meanning of QTZ and TC for tower crane model? And please illustrate.
A2: QTZ is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language(Qing Zhongji),
“T” is the acronym of Tower head type in Chinese language(Ta Shi) and
“Z” is the acronym of self rising in Chinese language(Zi Sheng Shi)
“TC” is the acronym of Tower Crane in English language.
For example: QTZ63(5013) means topkit tower crane, the rated lifting moment is 630KN.M
(63 is 1/10 of the rated lifting moment).
The working jib length is 50 meter and tip load is 1.3t when jib length is 50m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD(Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: the most popular types of foundation are Cross-beam type, Well-frame type,
Base with ballast type and Outrigger type.
Our default one is Cross-beam type,
if you need other types, please let us know when you make the order. Thanks
Q5: How to confirm a suitable tower crane model?
A6: My dear friends, please tell us the below basic parameters to confirm tower crane model:
a. Building height or tower crane working height.
b. Max load capacity and tip load capacity.
c. Span or jib length
d. Other Special requirements
