QTZ80(5610Y-6) XCMG Types Of Tower Crane With Best Price
Quick details--QTZ80(5610Y-6) 6t topkit tower crane hydraulic tower crane for construction

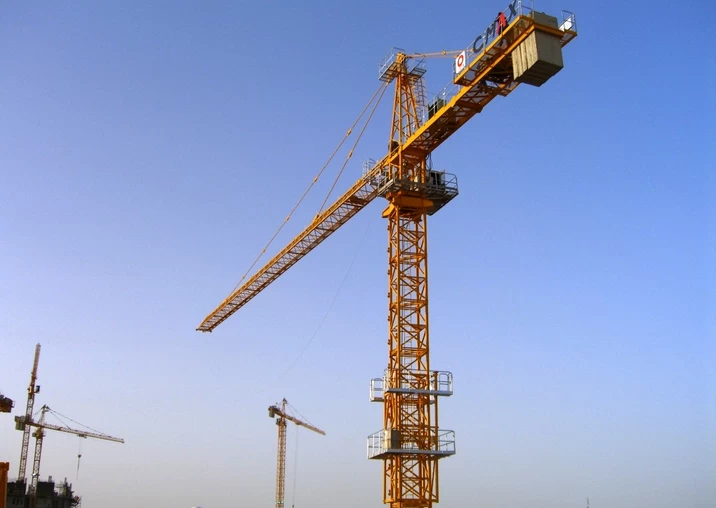

XCMG Tower Crane QTZ80
1.Max height: 140m
2.Tip load: 1.0t/1.3t/1.6t/1.9t
3.Length:56m/51m/46m/41m

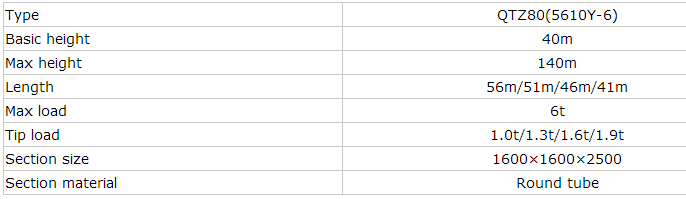

PARAMETERS OF 6t tower crane QTZ80(5610Y-6) tower crane hydraulic tower crane
Product description/advantage--QTZ series construction tower crane
1) Steel structure
Steel is the essential safety guarantee for tower crane. The steel we use for our tower crane is tower crane usage special square steel from Wuhan Iron and Steel Group. Steel material for those essential parts like lifting jib, tower top, frame etc is 16 Manganese Steel. Thus to assure safety, advance and high performance of the crane.
2) Hoisting Mechanism
We apply following technology of mature three velocity-variation pole motor, big center distance speed reducer, big diameter drum to effectively enhance the life span of crane. And the equipped rope mechanism solves the rope disorder issue effectively. The crane is specially equipped with hydraulic push brake to assure stable and reliable braking and easy maintenance.
3) Swing Mechanism
The speed change system is by rheostat variation of wound rotor motor or by frequency change system. The swing of tower crane is flexible, stable, exact positioning, highly reduced swing impact force and with high safety performance.
4) Luffer
It applies double-speed or three-speed motors for speed change control according to the jib length, easy running control, low impact force,high operation stability and high efficiency.
5) Control System
The Electric elements are from Schneider Company to assure high system reliability. The control cables uses air plug for easy and fast assembling and maintenance.
6) Operating System
Newly spacecraft type cabinet room with air conditioning system, wide eye view, high consideration of operator comfortableness and maximally to low down operation fault rate.
7) Security Guards
Except for using the common security devices, we uniquely equips high definition operation tracking monitor system which can thoroughly supervise the lifting hook, ground and construction building and can assure safety operation when with sight blockage.
Packing & Delivery
INSTALLATION:
after-sale service
1.One year warranty will be offered,
2. a full set of accessories are provided
3. a full set of quick-wear parts are provided
4. Besides, Professional service team is available to give technical support for the installation and maintenance of Tower Crane and construction hoist.
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. tower crane oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
