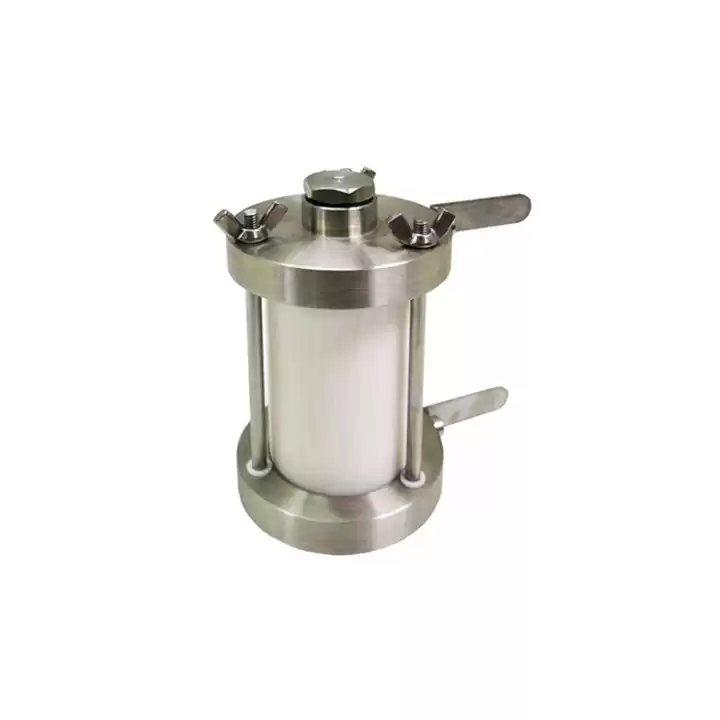

Quartz Split Test Cell For Cylindrical Cell
EQ-SC-26650 26650 Test Cell is designed for testing 26650 batteries. Its detachable design allows you to test the cycling
behavior as well as structural changes of electrode easily and quickly.
|
Specifications
|
|

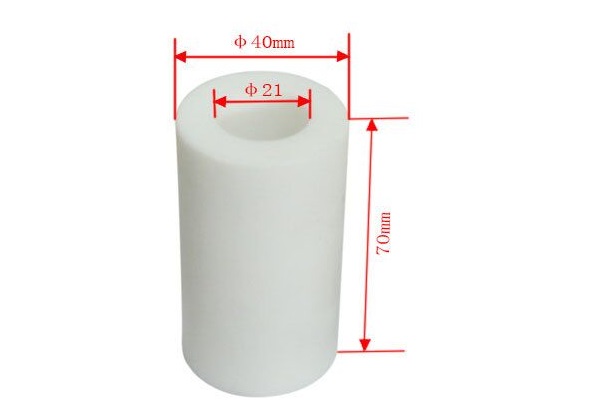

Dimensions (Dia. x Height)
|
1 ID of PTFE Body: 26mm
2 Height of PTFE Body: 65mm
|
|
Material
|
1 Caps: Full Stainless steel end caps
2 Body: Eletrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC
3 O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
|
|

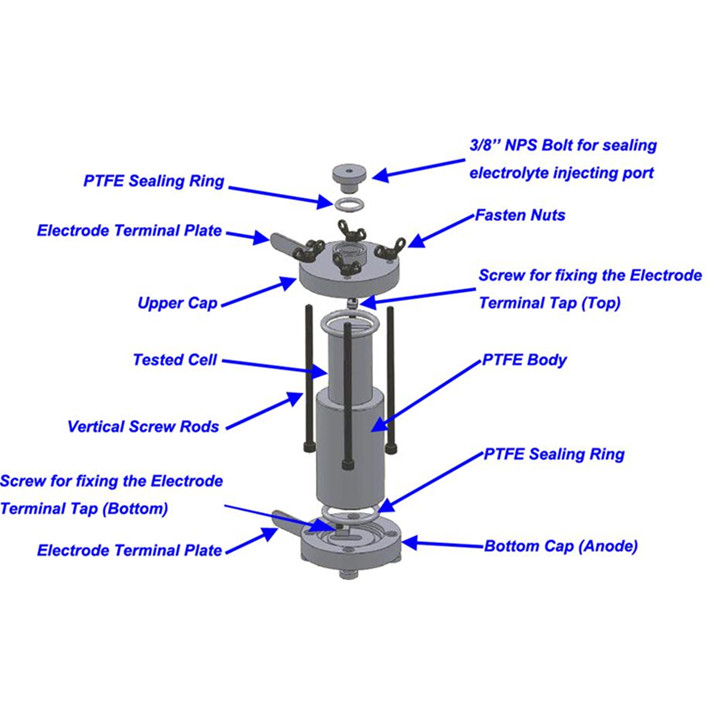

Design
|
1 Easy assembling by only four cap mounting screws
2 Easy to separate after test for cleaning
3 Space saving, compact design allows you put it into the glove box
|
|
Option
|
Anti-corrosive Au coating on the top & bottom stainless steel caps is an option. Surcharge will apply.
|
