Product Features:
1.Automatic sleep and wake up mode which save power and extend life time
2.Multiple interface and easy to switch by change a cable
3.Powerfull decoding performance and reliability
4.Fast scan speed reach 150times per second in 1d barcodes and 60 images per second in 2d barcodes
5.Excellent motion tolerance
6.Read all 1d & 2d barcodes from paper printed as well as mobile devices displays.

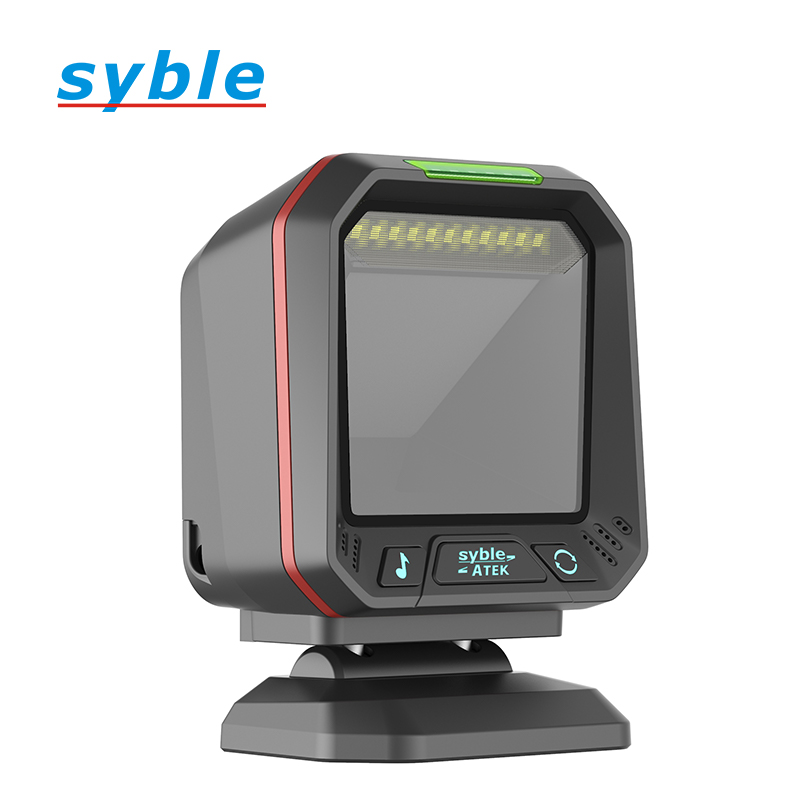

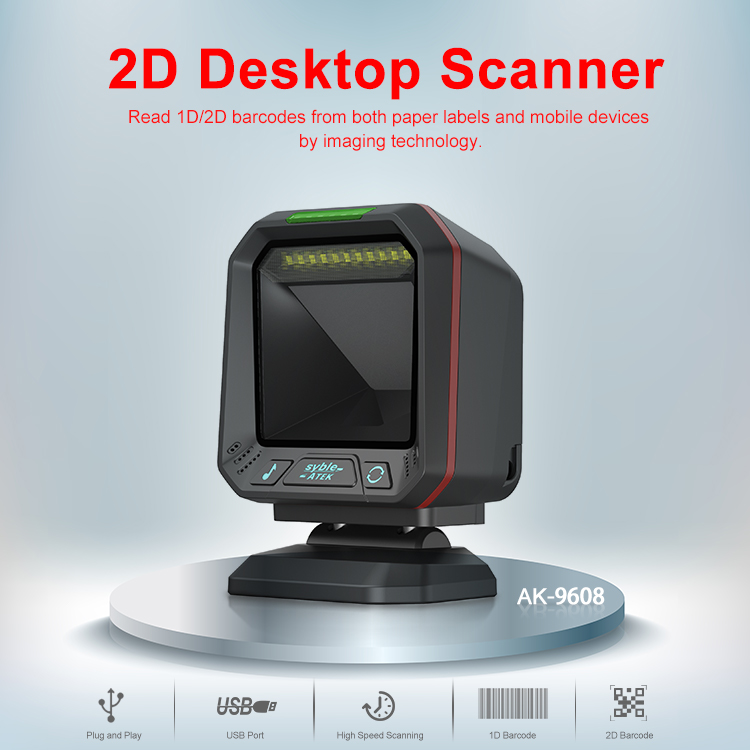

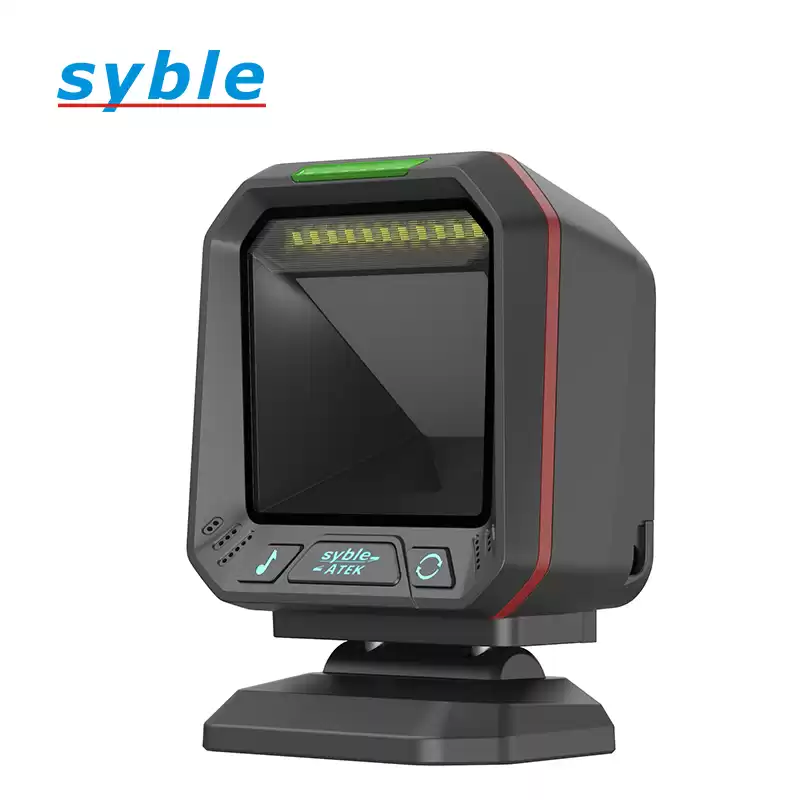

Model number: AK-9608
2D Imager Barcode Scanner ,which we adopt latest and advanced digital imaging technology to provide intuitive and blazing decode of 1d and 2d barcodes without sacrificing scanning quality and performance ,it can read damaged ,poor printed ,dirty and distorted barcodes as well as barcodes from mobile devices display.
Specification
|
Performance Parameters
|
|
Light Sources
|
SXGA-W(Width1280*high1024) Ratio（5：4）
|
|
Supported Symbologies
|
1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded.
2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、QR、Aztec.
|
|
Scan Range
|
5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm
|
|
System compatibility
|
Linux、Android、Windows XP、7、8、10、MAC
|
|
Minimum recognition accuracy
|
Code 39 4mil
|
|
Barcode Type
|
1d or 2d barcodes for Paper or Film；1d and 2d for screen ,like Phone tablets
|
|
Motion tolerance
|
3.8meters/second
|
|
Scan Mode
|
Automatic continuous reading mode
|
|
Support Keyboard
|
Support Multi-Language
|
|
Barcode output editing
|
Support for adding suffixes
|
|
Print contrast
|
20%
|
|
Recognition angle range
|
Turn angle ±360°, elevation angle ±60°, declination angle ±70°
|
|
Mutual Move
|
Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.
Beeper: Startup prompts, reading tips.
Keys (touch keys): Key Switch and 2d barcodes.
|
|
Interfaces
|
USB(Drive - Free)、RS232
|
|
Physical Parameters
|
|
Dimensions
|
115mm*75mm*140mm
|
|
Weight
|
390g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
180CM(±3CM)
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~55℃
|
|
Storage Temperature
|
-20℃~60℃
|
|
Relative Humidity
|
5%~95% RH(non-condensing/non-freezing)
|
|
Shock Resistance:
|
Withstands three times1 . 5 meters drops to concrete
|
|
Waterproof and Dustproof
|
IP54 standard
|
|
Ambient Ligh
|
0-70000LUX
|
