Quick change CZ interchangeable purlin roll forming machine

No need changing spacer or cutter for different size.

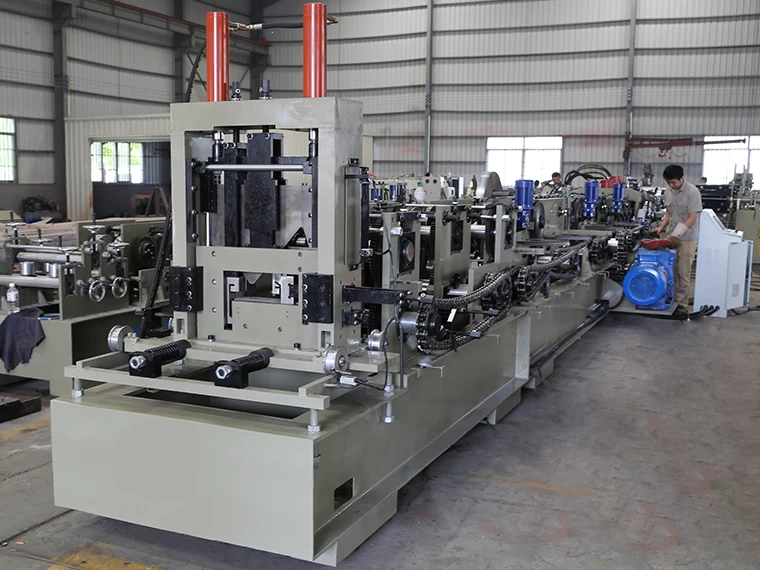

          Quick Change CZ Purlin Roll Forming Machine




Please click here to check the video: CZ Interchange Purlin Machine


1.Main features of CZ Interchangeable Purlin Machine With Patented Universal Cutter


    The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side


2.Detailed Images of CZ purlin roll forming machine


    Machine Parts

        1) CZ purlin machine punching system

       Brand:  BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.


      c and z purlin machines

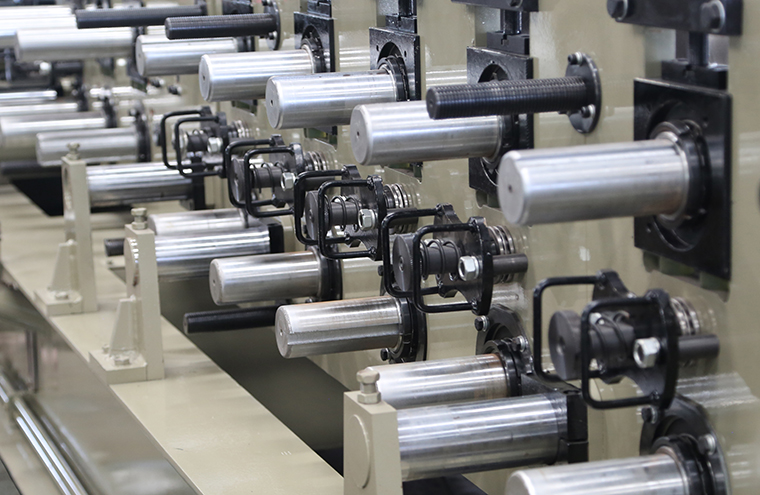

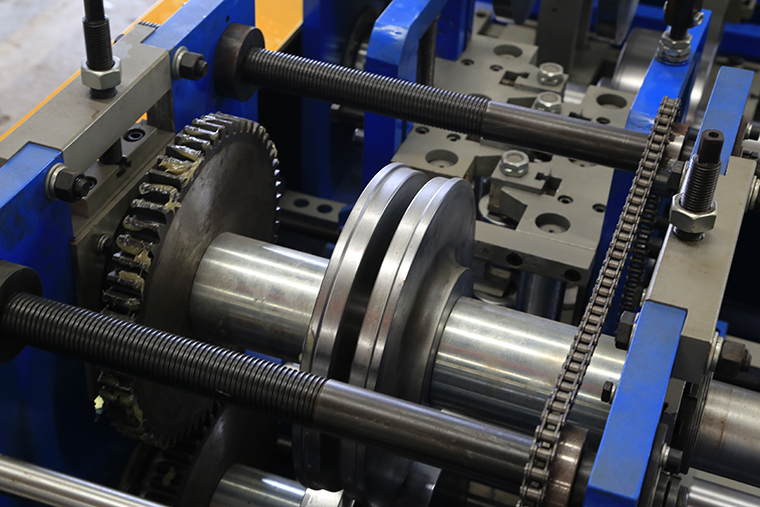

        2)   CZ purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(D3 steel), CNC lathes,

        Heat Treatment. with black treatment(for Cr12 rollers) or

        Hard-Chrome Coating(for GCr15 rollers)  for machine long working life.

        With feeding material guide, body framemade from 450# H type steel by welding


cz purlin roll former

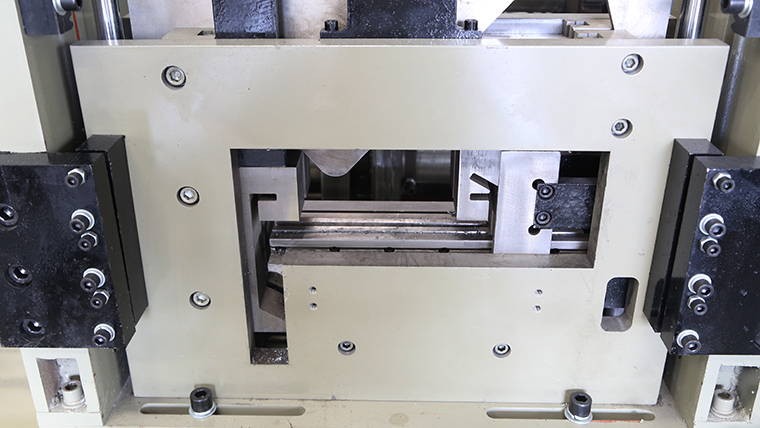

       3) CZ purlin machine post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12(D3 steel) with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa


cz purlin machine china



        4) CZ purlin machine locating pin

        C-to-Z purlin changing can finish within 5-10 minutes


cz interchangeable purlin roll forming machine



        5) CZ purlin machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton

CZ purlin machine decoiler


        With 5 tons hydraulic decoiler for option

CZ purlin machine decoiler



        6) CZ purlin machine exit rack

        Un-powered,two units


CZ purlin machine decoiler exit rack




Other details of CZ purlin roll forming machine


Suitable for material with thickness 1.0-3.0mm or 1.5-3.5mm

Shafts manufactured from 45# steel,shaft diameter=φ100mm,precision machined,

Motor Driving,Gear chain transmission, 16 rollers to form and 4 rollers for straightening and levelling

Main motor=22KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System ( Inverter brand:German Schneider Electric,Encoder brand:Japan Koyo/OMRON )



Interchange between C purlin and Z purlin: by manual changed, with following simple 3 steps

(It takes only 5-10 minutes to finish all):


a)Loosen dowel pin;

b)Rotate the adjust tooling 180 degree;

c)fix dowel pin.


But from C80-300 or Z140-300, change size by PLC system automatically:

Just adjust required WEB,HEIGHT and MATERIAL WIDTH on touch screen,

and then input the required production data(batch,length,punchinh hole numbers) on the touch screen.

the machine will finish size-changing automatically.No need to change rollers or spacers or cutters

like traditional old style CZ purlin machine  (which takes over 45 minutes for each production size changing).


Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±1.5 mm

Control Voltage 24 V

User's manual in English



After-sale service of CZ purlin roll forming machine


1. The warranty of CZ80-300 purlin roll forming machine

    is 18months after the client receives the machine.

    Within the 1.5 years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Trade Terms of CZ purlin roll forming machine


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export countries and regions:Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile,

    Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia,

    Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique,

    Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
