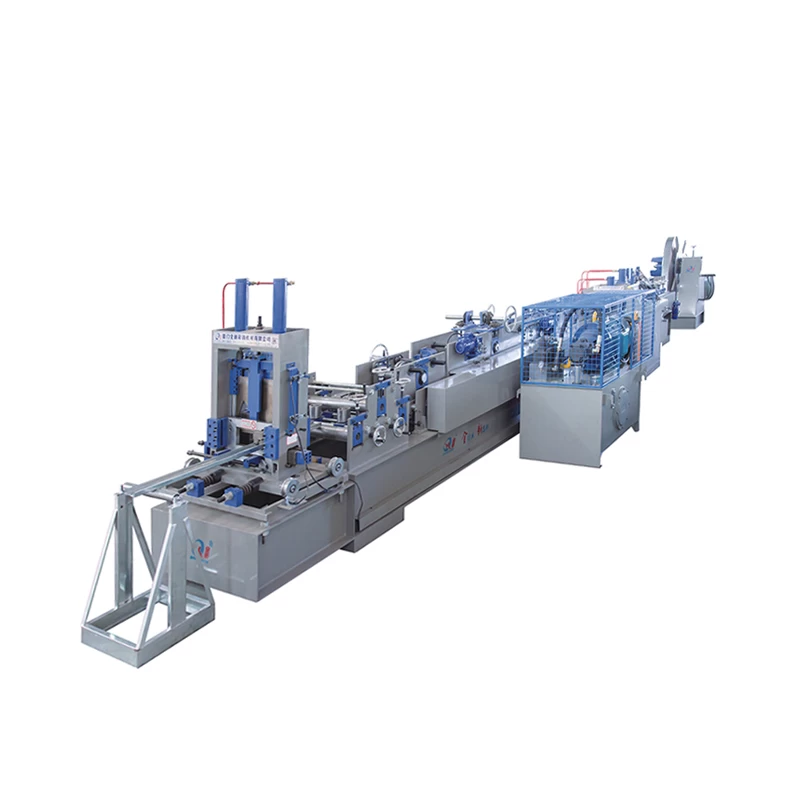

Quickly Change C Purlin Roll Forming Machine

Taiwan Quality and China price automatic C purlin forming machine is easy to change size in two minuters which will save your time and money.



 Advantages of Automatic Quick-change C purlin machine :

1. Automatically change different purlin size in one minute, without changing rollers or spacers.

2. Post-cutting design, no worry about twist and flare caused by Pre-cutting design.

3. With computer controlled system which easy to operate and save time and cost .

4. Post-cutting system or fly-cutting for option.


We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts.


Product specification:

Bottom width (W) 100-300mm
Heigh(H) 40-100mm
Small side(E) 10-20mm
Material width(λ) 185-525mm
Material thickness(&) Q235(1.5-3.0mm)
Embossing way Embossing with "一"
Chain size 1.5 inch + 1.75 inch + 2.0 inch
Main shafts diameter φ80/65mm Round steel with quenching and tempering treatment
Levelling shaft diameter solid rollers φ105mm(upper2,down3)
Wall panel thickness 25mm
Machine base size  H396*199
Driving power  motoer 30KW
Punching and cutting power
Forming speed 30m/min without punching
No. of punching 3 sets(double+double+single)14*25
Changing way Unlimited change 0.37/0.75KW
Punching and cutting mode Pre punching and cutting + Post cutting
roller material Cr12
Forming station 4+5+5=14 Stations (without embossing
Blade material Cr12Mov, Heat treatment after wire cutting
Control mode PLC(Taiwan FATEK)



Main features:

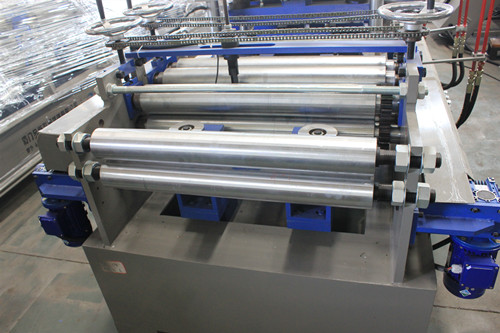

1. Feeding material guide and leveling device

With feeding material guide and leveling device.

Two rollers (one up and one down roller) for material guide and 5 rollers ( 2 up and 3 down rollers ) for straightening.

Solid and shafts diameter=φ94mm

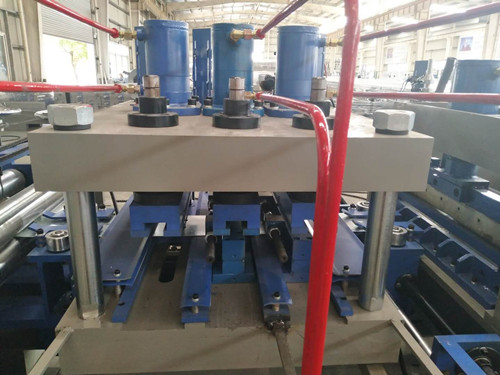

2. Pre-punching system
Three set of pre-punching devices (one  for single hole and 2  for dual-holes.)
Also, can make as customer’s requires.


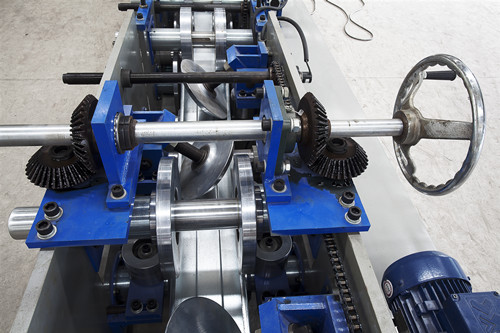

3. C purlin machine rollers and shafts
Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated;
Shafts manufactured from #45 steel or Gcr15 for optional, Main Shaft Diameter=φ80/65mm, quenching and tempering treated

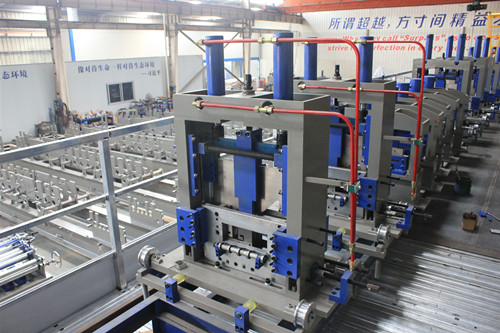

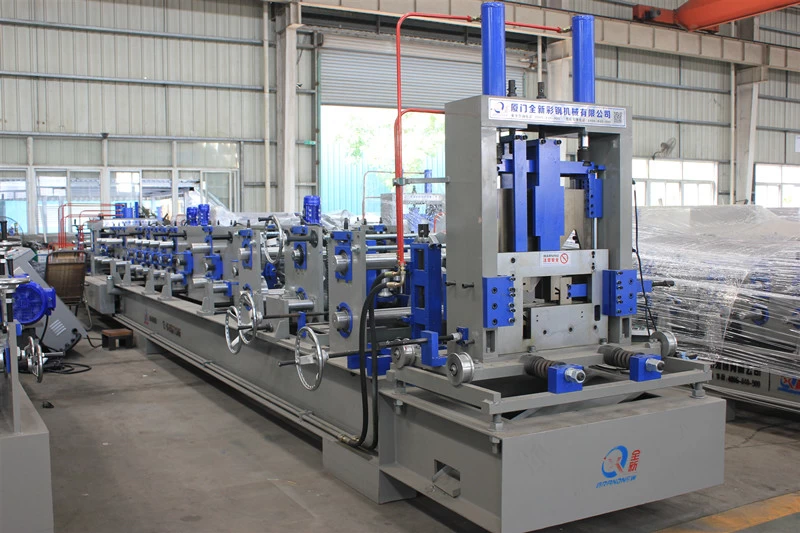

4. C purlin machine post-cutting system:
No need to change cutter for different size; Unlimited specification changing for height and bottom width;
Cutting blades made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding


5.Control System
C purlin machine control box
(Touch screen brand: WEINVIEW, Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA,  Encoder brand: Japan Koyo/OMRON)


6.Uncoiler
C purlin machine uncoiler
One set manual uncoiler, Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton

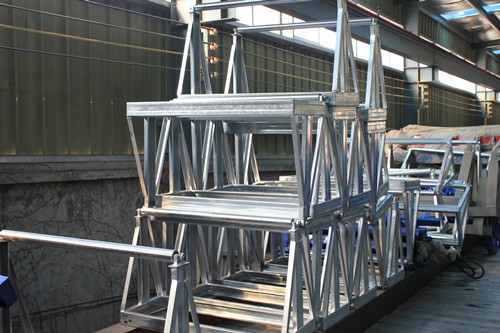

7. C purlin exit rack
 Un-powered, three  units
