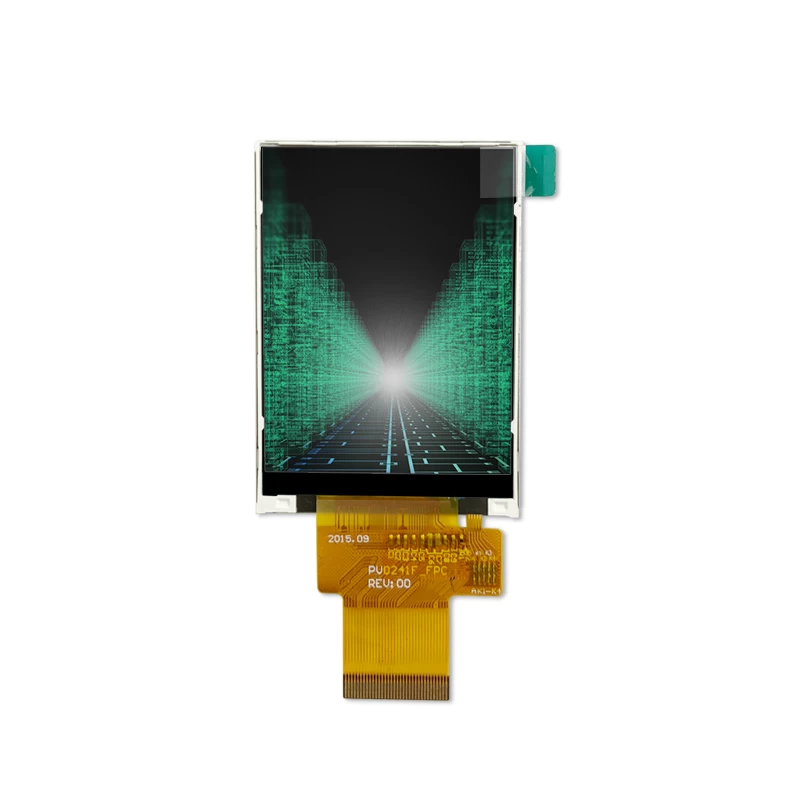

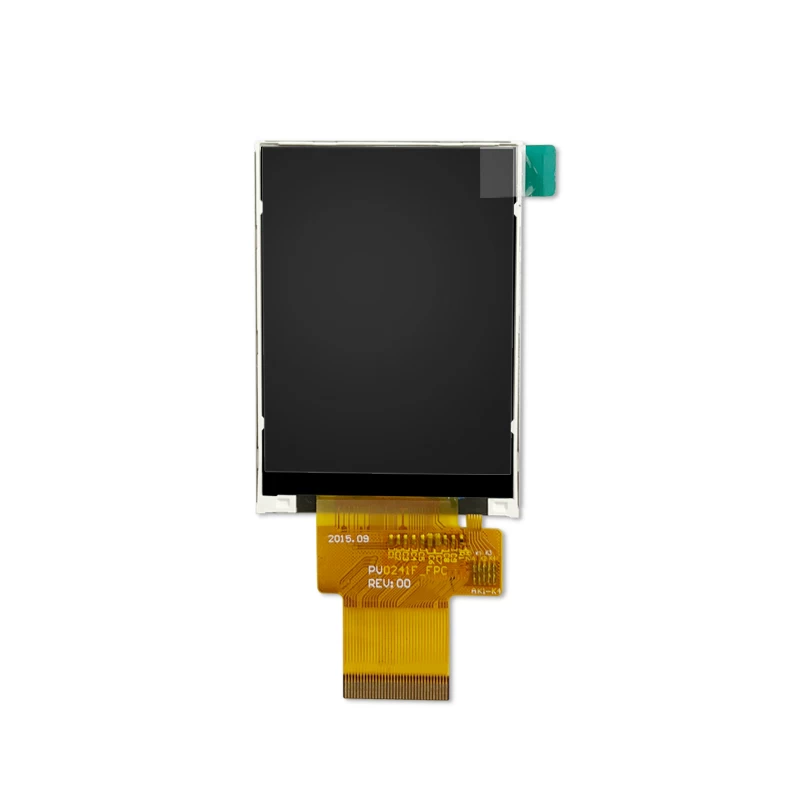

QVGA 240x320 resolution 2 inch ips lcd monitor with MCU interface


Specification

LCD type 2.0 inch IPS tft display module
Display type 2.0" TFT, 262k color
Driver element a-si TFT Active matrix
Outline Dimension(mm) 42.72x60.26x3.45mm
Resolution(dots) 240*RGB*320
Viewing Direction ALL o'clock
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Backlight White LEDs
Weight(g) TBD
Interface MCU
Module lifetime(Hours) 50,000-100,000
