LCD type
|
3.5" tft lcd , Transmissive
|
|
Display type
|
3.5" TFT 262k color, normal white
|
|
Item description
|
3.5 inch IPS MONO TFT
|
|
Driver element
|
a-si TFT Active matrix
|
|

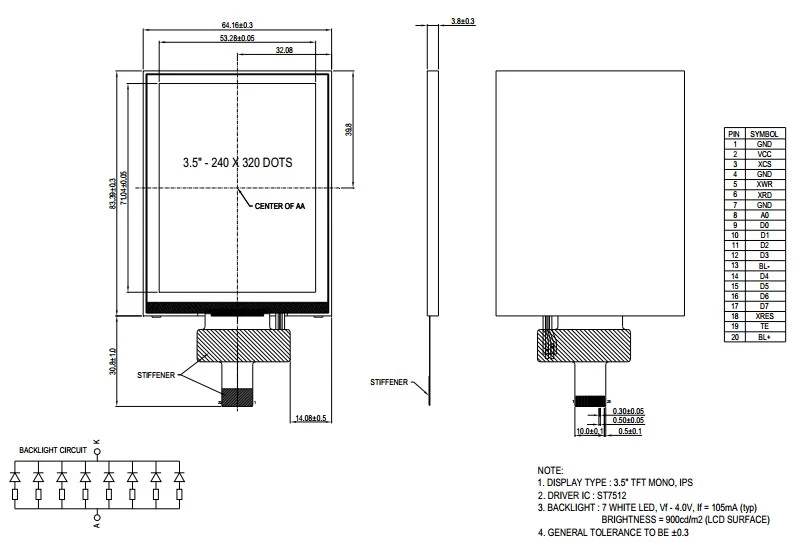

Outline Dimension(mm)
|
64.16 (w) x 83.39 (h) x 3.8 (t) mm
|
|
A.A.(mm)
|
53.28 (w) x 71.04 (h) mm
|
|
Driver IC
|
ST7512
|
|
Resolution(dots)
|
240x320 resolution
|
|
Viewing Direction
|
80/80/80/80
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
240(H)x 3RGB x 320(V)
|
|
Pixel Pitch
|
0.222x0.222
|
Number of pins
|
20
|
|
Pixel arrangement
|
W-stripe
|
|
Display mode
|
Normally white
|
|
Interface
|
MCU 8 bit Parallel
|
|
Backlight
|
White
|
|
Weight(g)
|
TBD
|
|
Interface
|
RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
QVGA 240x320 resolution 3.5 inch IPS mono tft lcd with high performance
