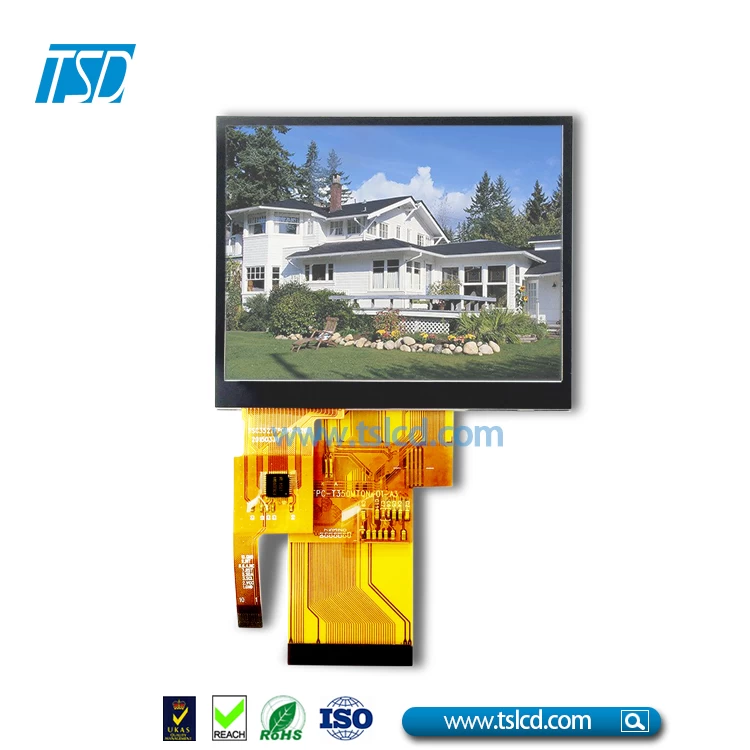

QVGA 3.5 inch touch lcd ips display with PCAP

QVGA 3.5 inch touch lcd ips display with PCAP

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch IPS touch lcd
Model name TST035QVHS-46C
Display Mode Normally Black,Transmissive
Resolution 320*240
Technology Type a-Si TFT active matrix
Driver IC ST7272A
Touch screen
 with Capacitive touch panel
Outline Dimension
76.9x63.9x4.68mm

Active Area(mm) 70.08x52.56mm
Interface RGB
Viewing Direction ALL  O'clock
Surface Luminance 400 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
