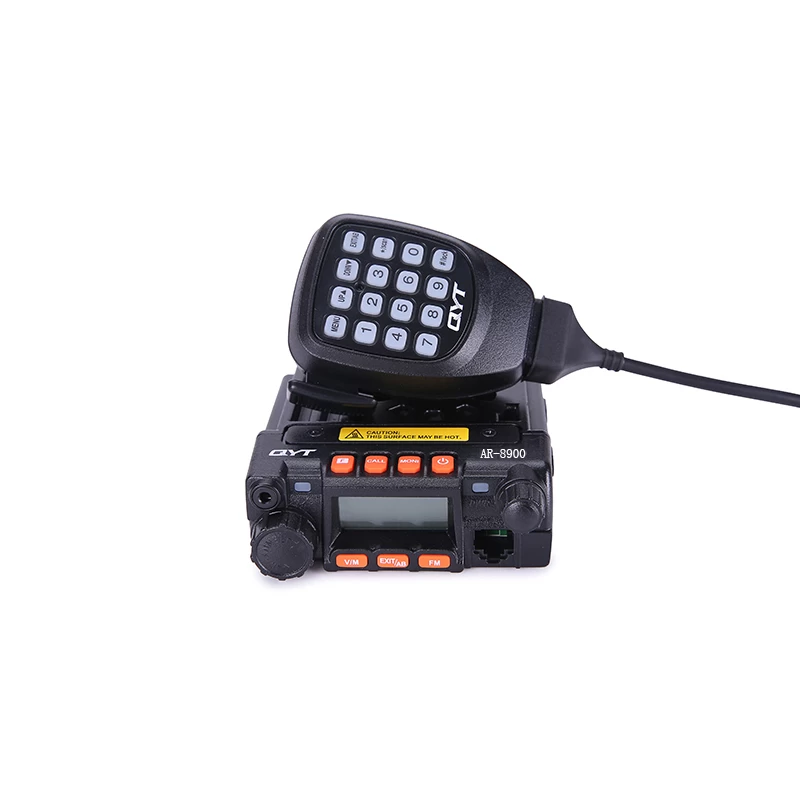

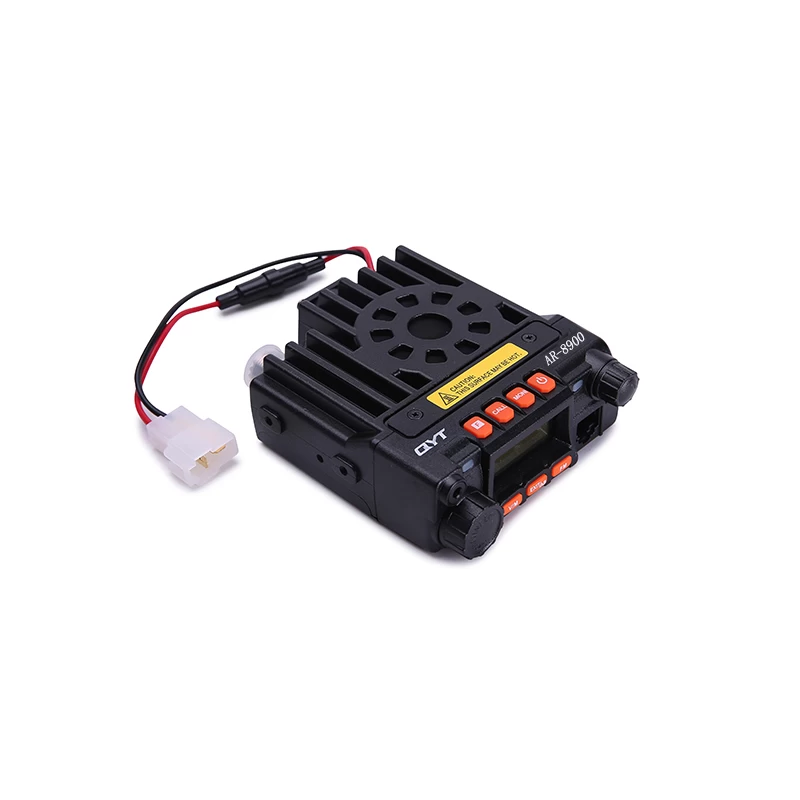

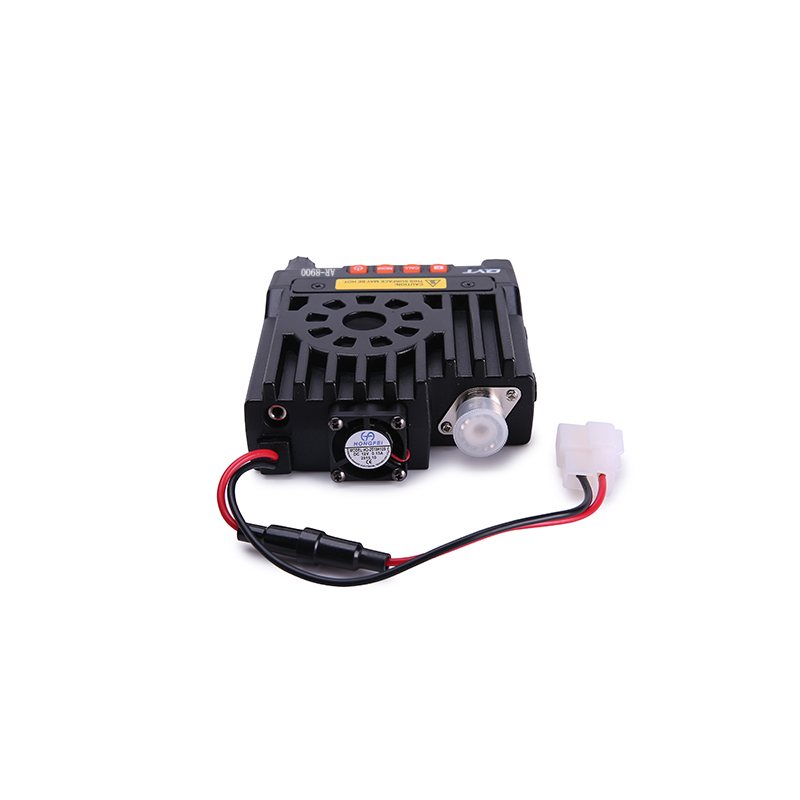

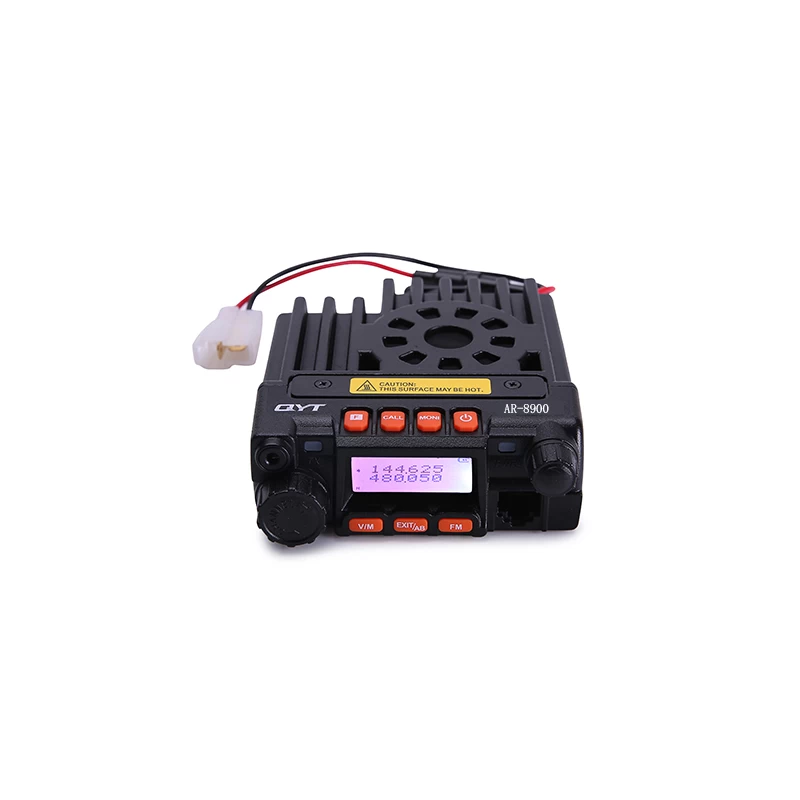

QYT AIR BAND AR-8900 mobile radio

QYT AR-8900 mobile radio is an aviation band analog radio, which has 108-135MHz with receive function ONLY, moreover, since it's on the basis of KT-8900 ham radio, hence it has VHF as well as UHF, therefore, you own this AR-8900, you own a two way radio with three different frequency range.



This AR-8900 mobile radio has AIR BAND frequency(108-135MHz) with ONLY RECEIVE function on the basis of the KT-8900, which means you can have not only both VHF and UHF with RECEIVE and TRANSMIT functions, but also AIR BAND frequency with ONLY RECEIVE function.


The AR-8900 Kit includes:

  • Radiostation
  • Microphone
  • DC power cable
  • Mobile mounting bracket
  • Mounting hardware
  • User's manual

General Specifications

Frequency Range

VHF: 136-174MHz, 108-135MHz(receive ONLY)

UHF:400-480MHz

Channel Capacity

200 channels

Channel Spacing

25KHz, 20KHz, 12.5KHz

Channel Step

 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz

Working Voltage

13.8V DC ±15%

Squelch way

CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20℃~+60℃

Dimension(W*H*D)

140(W)*43(H)*172(D)mm

Weight

1030g

Receiver (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Sensitivity

≤0.25μV

≤0.35μV

Channel chioce

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Signal to noise ratio

≥45dB

≥40dB

Audio distortion

≤5%

Audio output power

≥2W±10%

Transmitter (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Output power

25W/20W (VHF / UHF)

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60dB

Signal noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.25KHz)

Audio distortion

≤5%
