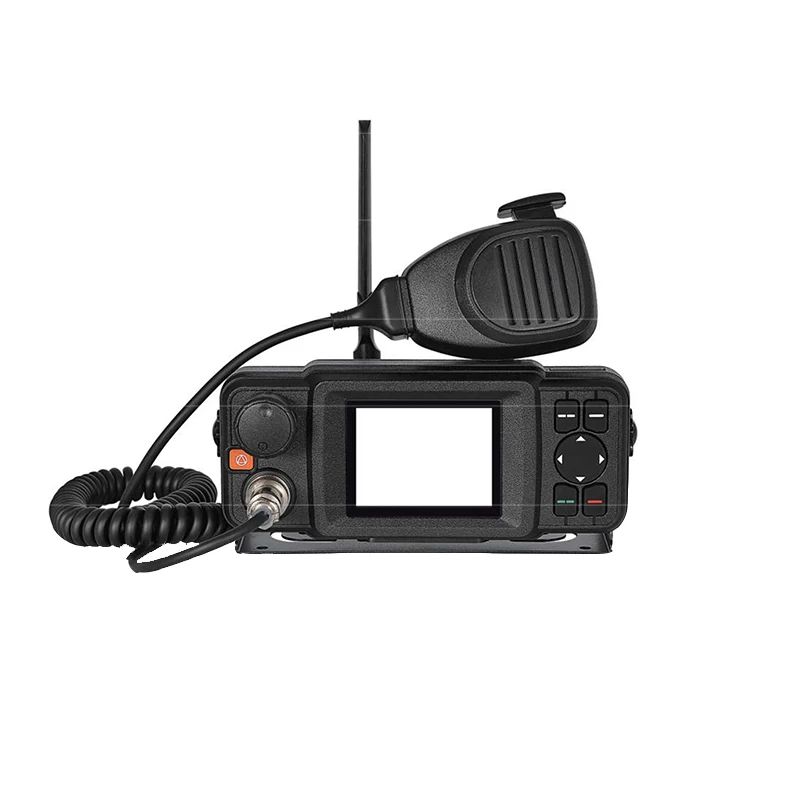

QYT NM-1000 4G network mobile car radio
QYT NM-1000, unlimited talk range. Freely talk with mobile phone signal.
It can build an integrated digital communication network and set up a unique group of users, enable multiple people to talk at the same time, which is more convenient for enterprise management and use.
Feature
• Support LTE(4G)/WCDMA(3G) /GSM(2G) Network
• Support REAL PTT Platform
• 2.8lnch Color LCD Display
• Support Dual SIM Card & Switchable
• Support Power Supply DC12-24V
• Emergency Alarm Function
• Audio Output Power 3W
• GPS Function
• Group Call, Individual Call
The QYT NM-1000 Kit includes:
• Radiostation
• Speaker Mic
• Metal Bracket
• Power Supply Cable
• 4G Antenna
• User's Manual
• GPS Antenna(Optional)
|
Specifications |
|
|
Version E |
B1/B3/B5/B7/B8/B20@FDD LTE; |
|
B38/B40/B41@TDD LTE; |
|
|
B1/B5/B8@WCDMA; |
|
|
B3/B8@GSM |
|
|
Version AU |
B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE; |
|
B40@TDD LTE; |
|
|
B1/B2/B5/B8@WCDMA; |
|
|
B2/B3/B5/B8@GSM； |
|
|
Version F |
B2/B4/B5/B12/B13/B14/B66/B71 @FDD LTE; |
|
B2/B4/B5@WCDMA; |
|
|
Operation System |
LINUX |
|
Positioning System |
GPS |
|
CPU |
QUALCOM 9X07 |
|
Working Mode |
Semi-duplexer |
|
RX Sensitivity |
2/3G≤-108dBm 4G ≤-93dBm |
|
RF Power |
23dBm≤P≤30dBm |
|
Audio Output Power |
5W |
|
Power Supply |
DC12-24V |
|
Dimension |
175X76X70mm |
|
Weinht |
320g Approx |
|
Working Temperature |
-20°C to +60°C |
|
Storage Temperature |
-30°C to +80°C |
