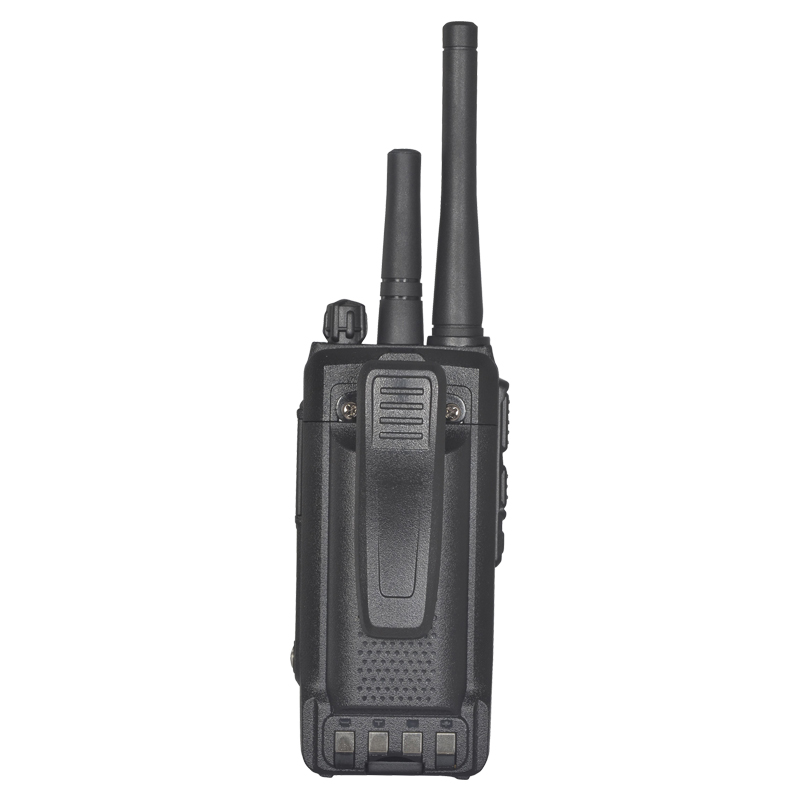

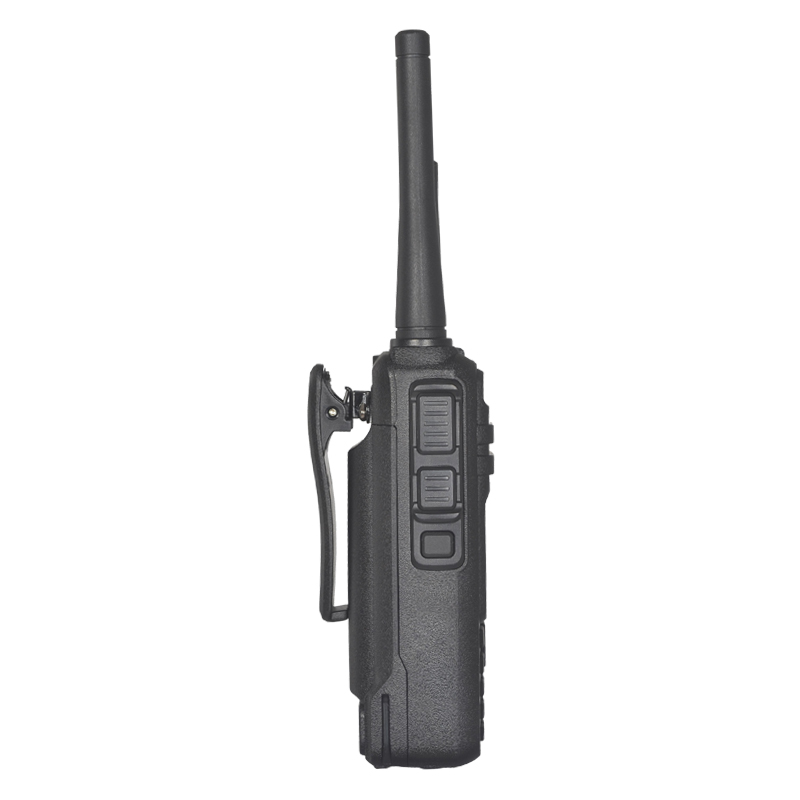

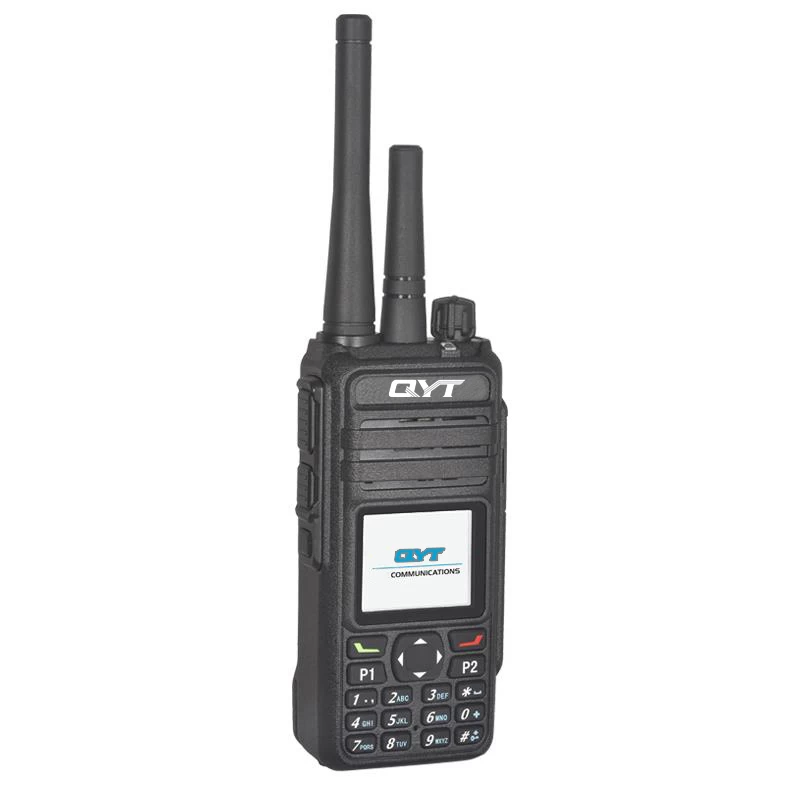

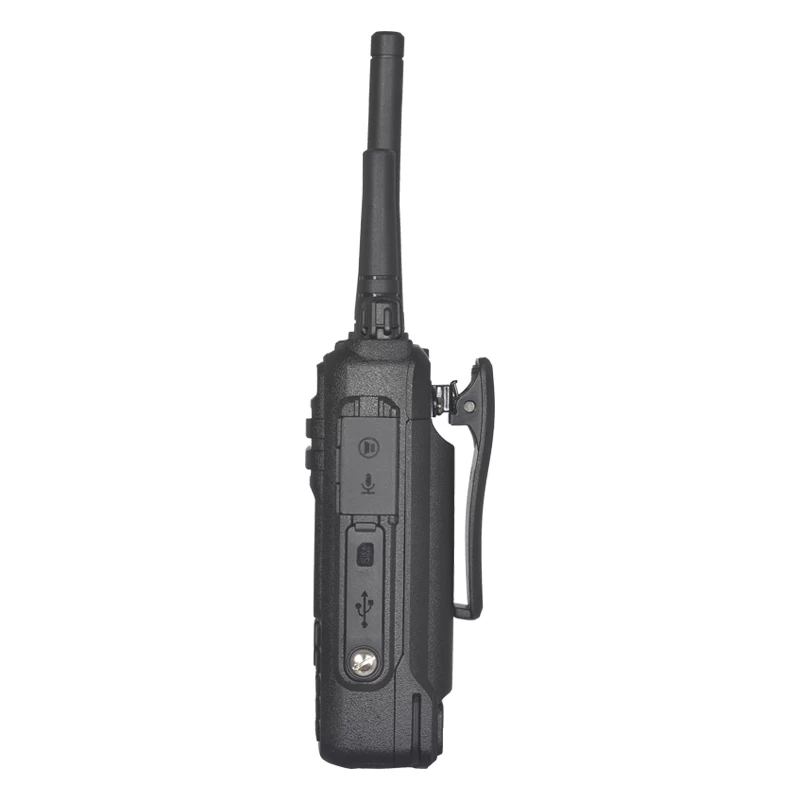

Features of QNH-800D:
·
Support LTE(4G) and DMR Digital Network
·
Dual Antenna, Dual Mode and Dual Standby
·
4G Mode for Worldwide Communication
·
DMR Mode with Powerful Output 5W
·
Dual Work, 4G Mode and DMR/Analog Mode Selective
·
Repeater Mode for 4G and DMR/Analog Communication
·
Group Call and individual Call
·
REAL PTT Platform for LTE(4G) Version
|
General
Specifications
|
|
Frequency Range
|
VHF: 136-174MHz / UHF:400-470MHz
|
|
Channel Capacity
|
1024 channels
|
|
Working Voltage
|
7.4V DC ±10%
|
|
Dimension(W*H*D)
|
53*33*116mm
|
|
Transmitter
(ETSI EN 300 086 Testing Standard)
|
|
Bandwidth
|
12.5KHz
|
|
RF Power Output
|
VHF:5W/1W UHF:4W/1W
|
|
Audio Response
|
(+)1~-3dB(0.3~3KHz)
|
|
Modulation
|
7K60FXD(Data Only);7K60FXW(Data $ Voice)
|
|
Adjacent Channel Power
|
≥65dB
|
|
Hum & Noise
|
≥45dB
|
|
Modulation Distortion
|
Less than 3%
|
|
Digital Protocol
|
ETSI-TS102 361-1,-2,-3
|
|
Receiver (ETSI
EN 300 086 Testing Standard)
|
|
Sensitivity(12dB SINAD)
|
Analog:5% BER:0.20 V Digital:5% BER:0.25V
|
|
Intermodulation
|
≥55dB
|
|
Audio Response
|
(+)1~-3dB(0.3~3KHz)
|
|
Hum & Noise
|
≥40dB
|
|
Audio Distortion
|
≤3%
|
|
Audio Output
|
750mW with less than 5% distortion
|
