R004 Solar Ground Mount Rail

Solar ground mount rail adopt anodized aluminum alloy.


  • Delivery7 Days after Payment Received
  • Snow Load1.4kn/m2
  • Wind Load60m/s
  • CertificationISO9001/CE/UL
  • Service Life25 Years
  • Warranty10 Years
  • MaterialAluminum 6005-T5

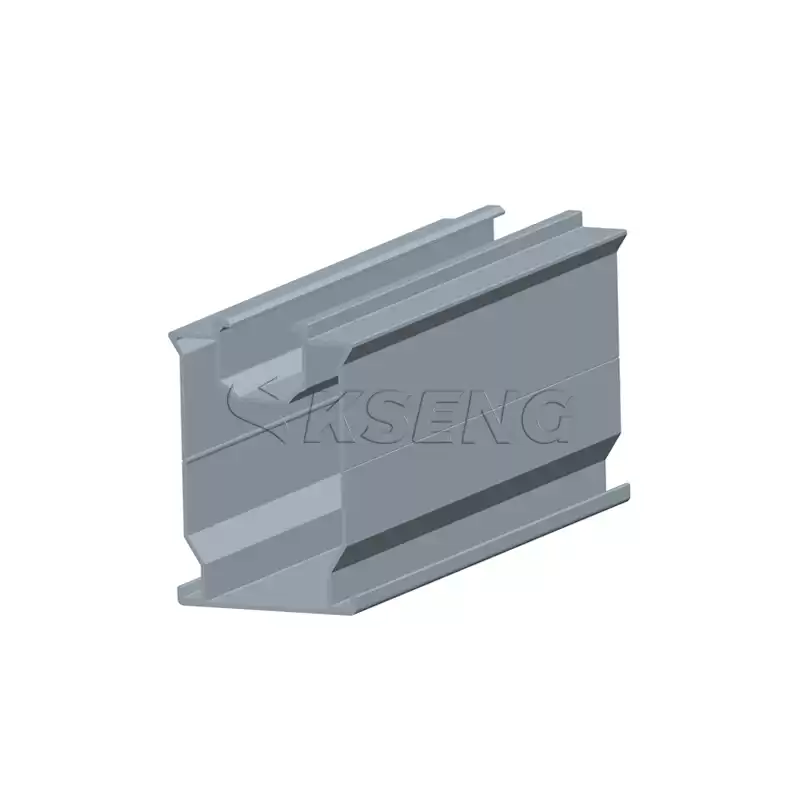

R004 Solar Ground Mount Rail


The solar rail is made of high strength anodized extrusion aluminum alloy,Aluminium boasts one of the highest recycling rates of any metal.

The solar mount rails belong to common type, The upper slot of the solar rail is to the use of a common solar panel clamp to secure solar panel.

The bottom of the rail is firmly fixed to solar beam through solar rail clamp.

 It is for solar aluminum profile rail, length=2100mm, 4200mm is our standard length, what's more, customized of solar mounting rail is welcome, we make make it as per your request.

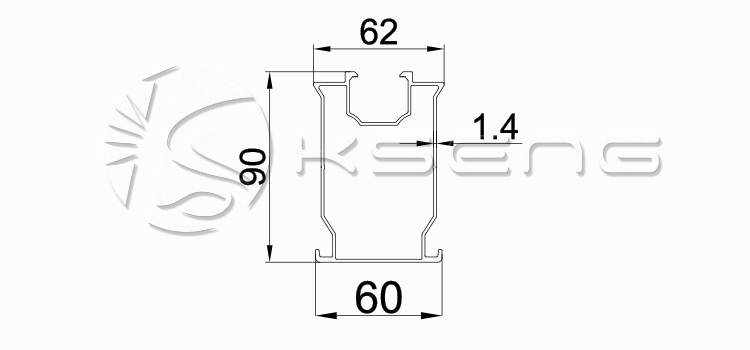

 PV Mounting Rail Structure.jpg

Features:

1.The solar rails are Large, high strength, span can be enlarged.

2.High corrosion resistance, salt tolerance.

3.Lightweight, easy transportation and installation, safe construction.

4.It is durable and recyclable.

5.Our factory directly delivery with fast delivery.

6.Can be cut in cut to size as mounting projects .

Product Name: Solar Aluminum Profile Rails
Material: Aluminum 6005-T5
Surface Treatment: Anodized
Warranty: 10 Years
Service Life: 25 Years
Color:
Silver
Application:
Optional
Certification: ISO9001/CE/UL/SGS
Delivery: 7 Days after Payment Received
