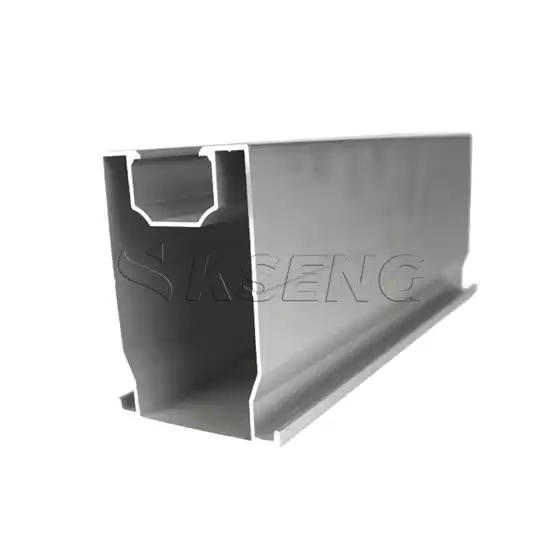

R012 Aluminium Solar Panel Mounting Rails
Solar racking rail is made of Alu6005-T5 alloy, it’s light in weight, easy for transportation, fast installation.
This solar mount rails belong to the common type, The upper slot of the solar rail is to the use of a common solar panel clamp to secure the panel.
The bottom of the aluminum rail is firmly fixed to the beam through solar rail clamp.
It is for solar aluminum profile rail, length=2100mm, 4200mm is our standard length, what's more, customized of solar mounting rail is welcome, we make make it as per your request.
Features:
1.The solar rails are Large, high strength, span can be enlarged.
2.High corrosion resistance, salt tolerance.
3.Lightweight, easy transportation and installation, safe construction.
4.It is durable and recyclable.
5.Our factory directly delivery with fast delivery.
6.Can be cut in cut to size as mounting projects .
|
Product Name:
|
Solar Aluminum Profile Rails
|
|
Material:
|
Aluminum 6005-T5
|
|
Surface Treatment:
|
Anodized
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
Color:
|
Silver
|
Application:
|
Optional
|
|
Certification:
|
ISO9001/CE/UL/SGS
|
|
Delivery:
|
7 Days after Payment Received
|
