R027 solar mounting rails brackets for solar panels easy installation fixed on roof house

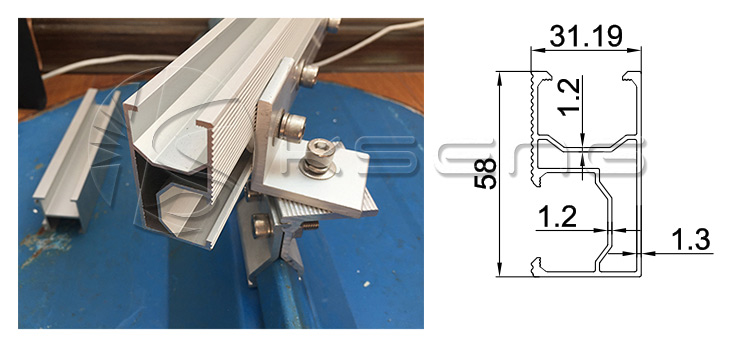

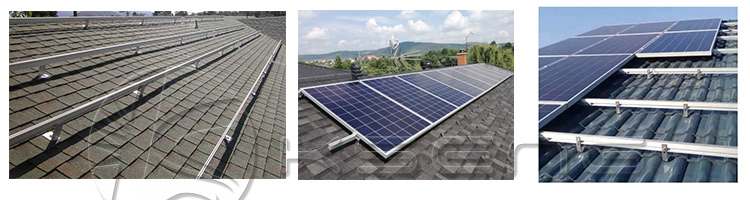

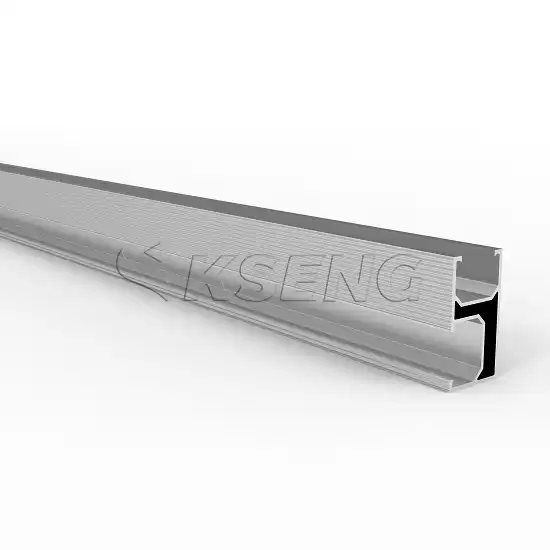

R027 aluminum rail is 6005-T5 aluminum alloy track. The solar rail is for mounting all types of photovoltaic (PV) modules on to tiled or slate roofs.(as shown in the figure)
Solar On-Roof system is guaranteed for 12 years, providing installation has been carried out correctly.

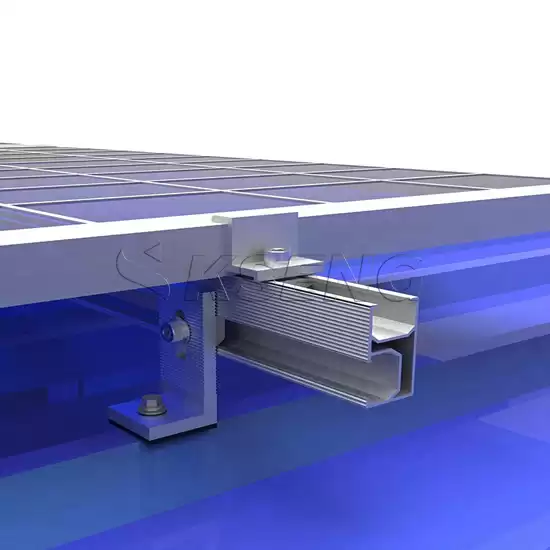

Panel mounting system for pitched roofs.
Features:
1.The solar rails are Large, high strength, span can be enlarged.
2.High corrosion resistance, salt tolerance.
3.Lightweight, easy transportation and installation, safe construction.
4.It is durable and recyclable.
5.Our factory directly delivery with fast delivery.
6.Can be cut in cut to size as mounting projects .
|
Product Name:
|
Solar Aluminum Profile Rails
|
|
Material:
|
Aluminum 6005-T5
|
|
Surface Treatment:
|
Anodized
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
Color:
|
Silver
|
Application:
|
Optional
|
|
Certification:
|
ISO9001/CE/UL/SGS
|
|
Delivery:
|
7 Days after Payment Received
|
