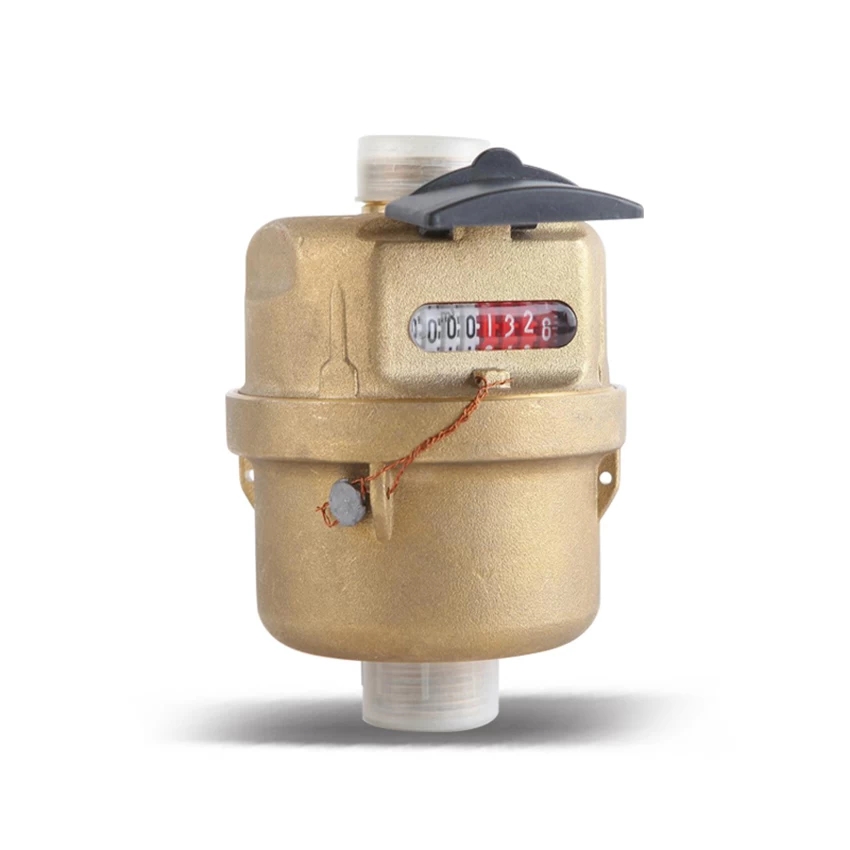

R160 Class C volumetric water meter

These piston volumetric water meter are a instruments which directly measure the volume of the fluid and divide it into separate volumetric spaces with known volumes. By multiplying the number of gradually filled volume spaces by the volume of each space, we get the value of flow. It is always measured over a period of time, and the result is the value of a unit of volume in a unit of time. Volume flowmeters usually show the total flow through the counter, but also allow the generation of output pulses, each pulse represents a certain volume of fluid. Pulse numbers can be read or transmitted from the local display to the control system.



Quick Details
Place of Origin:HeFei, China (Mainland)
Brand Name:EMI
Model Number:LXHY15-40
Size:DN15mm~DN25mm (1 /2''~1-1/2'')
Material:Brass body,Plastic body
Color:Blue, Red,Blue,Golden, others
Certificate:ISO4064 Class C
Packing:Carton/ wooden case
Water temperature:0.1℃~40℃(0.1℃~90℃ for hot water meter)
Water pressure:1.0Mpa (1.6MPa on request)
PRODUCT NAME:R160 Class C volumetric water meter

Outstanding features:
Low start-up flow rate.

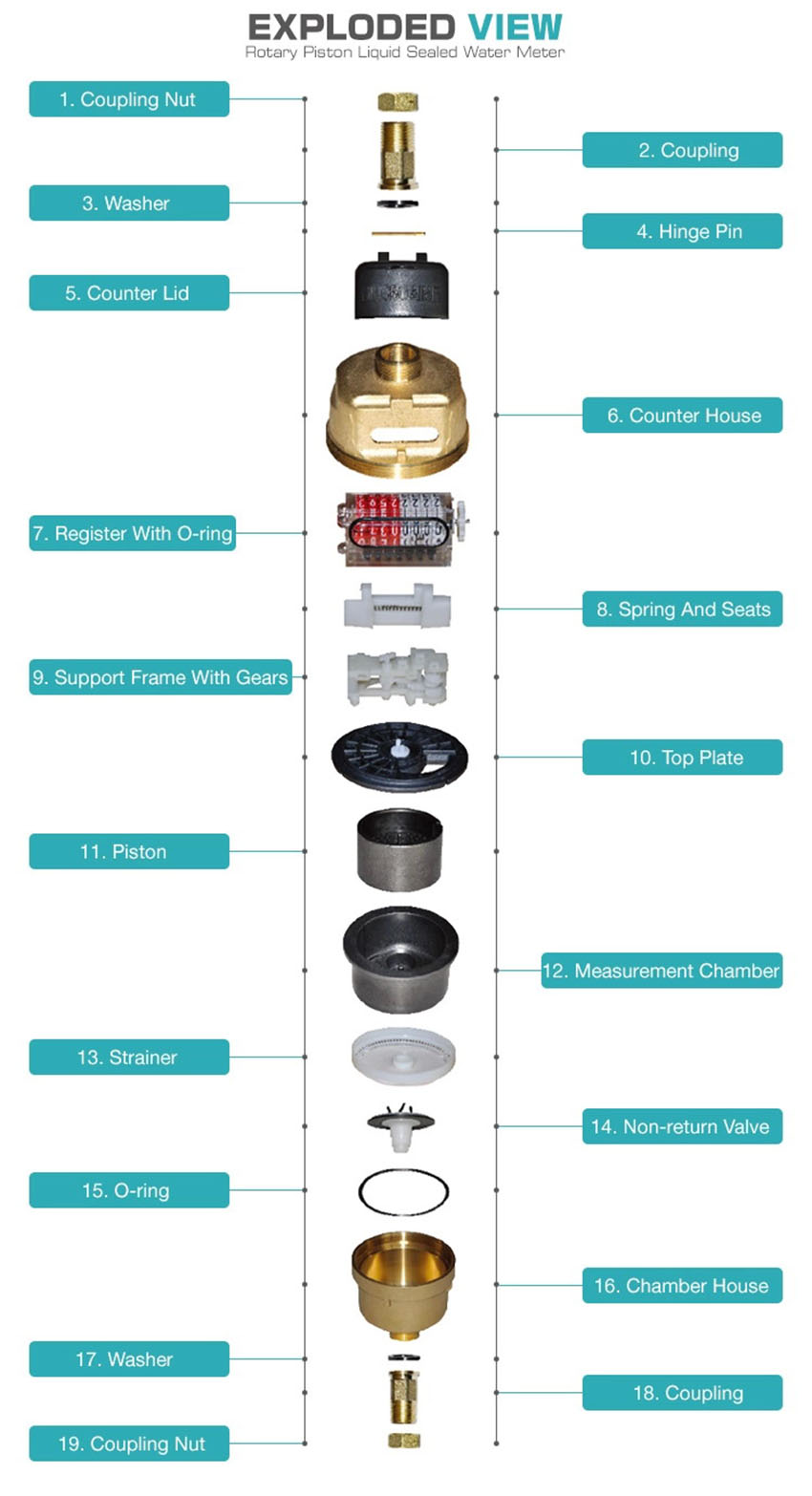

Volumetric rotary piston principle of measurement.
LXHY-15~40 is no location limitation for installation.
Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.
Register is sealed with a special liquid to keep a clear reading in long term service.
Mechanism use of high-quality material to ensure a stable characteristic.
Accurate measurement with conformity to ISO 4064 class C.
On request, the series can be equipped with a kind of remote transmission device.
Top Class raw material supply
two years guarantee
each meter with traceabity ID numbers
Perfect construction and high accuracy
long working life
good package
meansure unit by cube meter
8 roller wheels with 4 in red and others in white
the minimum reading is 10 Liters

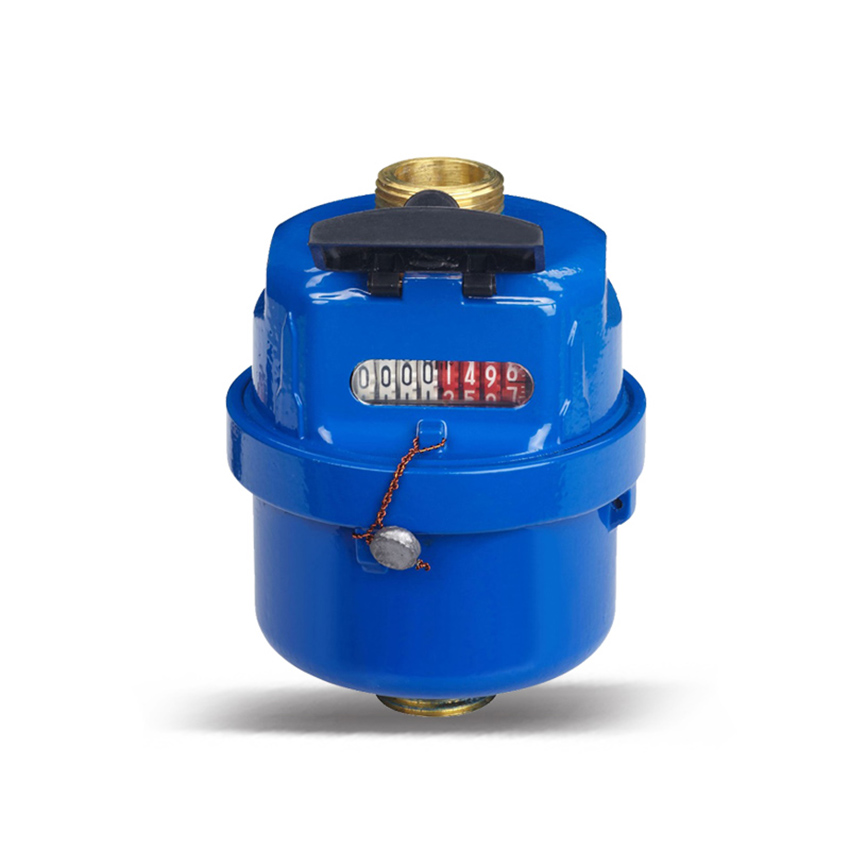

body material:brass or plastic sizes:DN15-20 for plastic and DN15-40 for brass
different register for optionresidential water metervolumetric water metercold water meter
