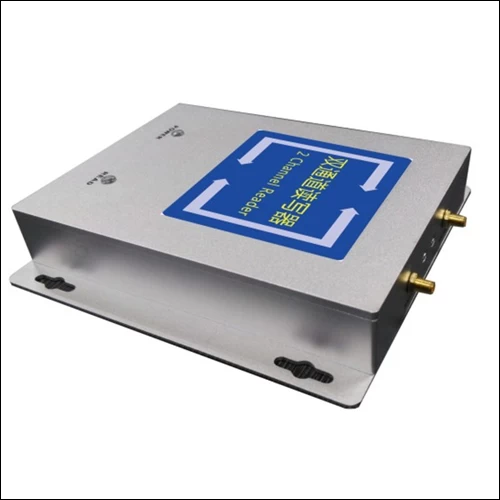

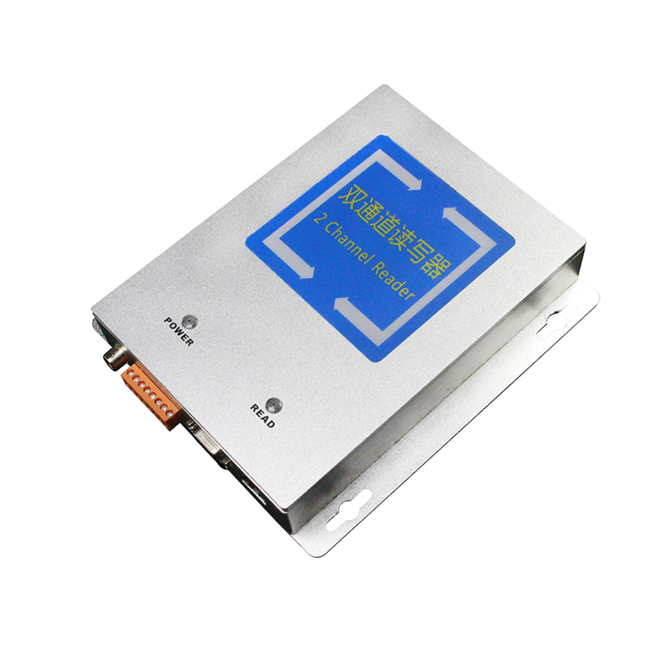

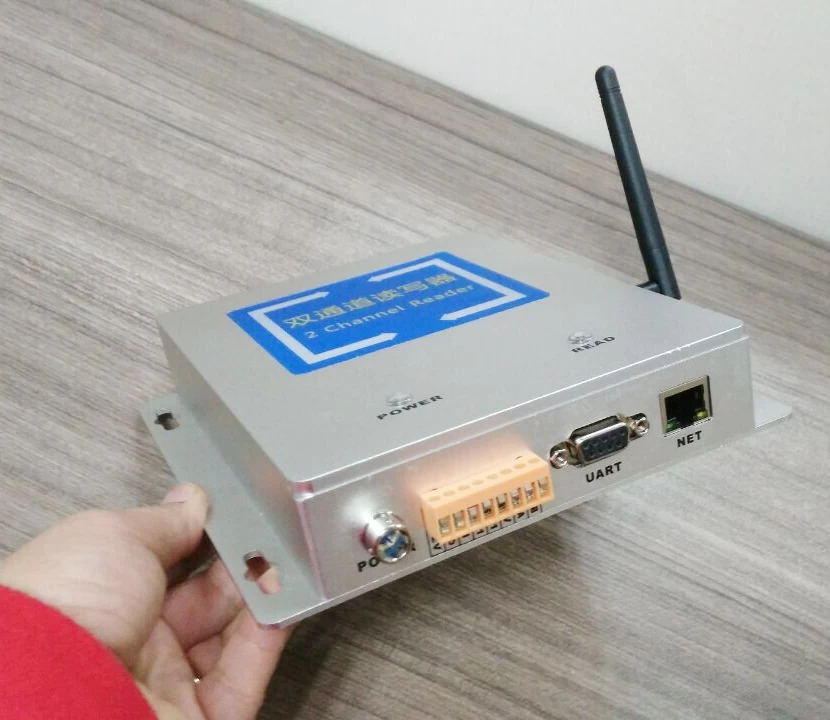

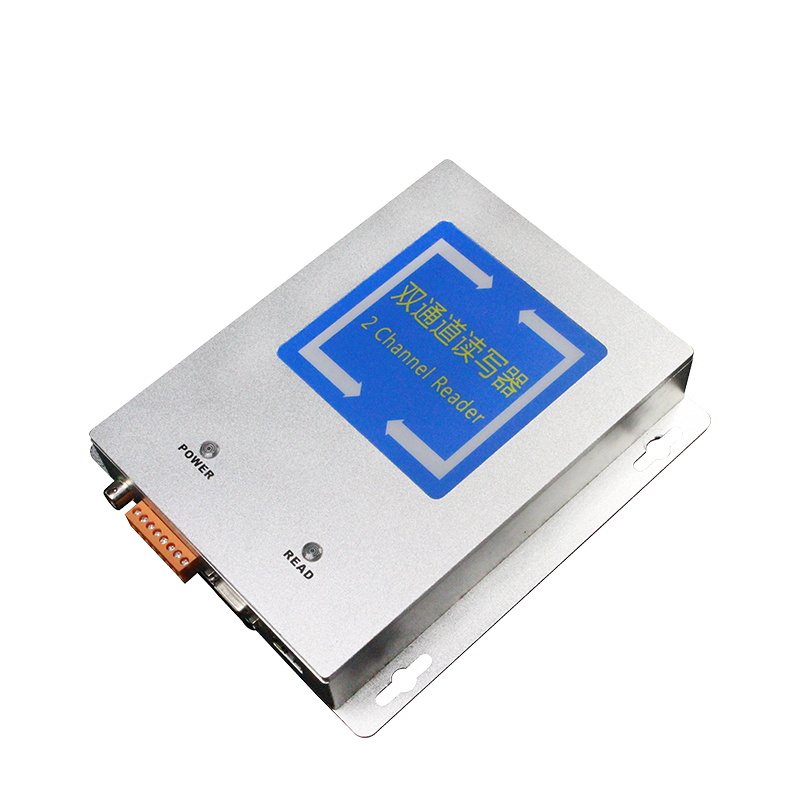

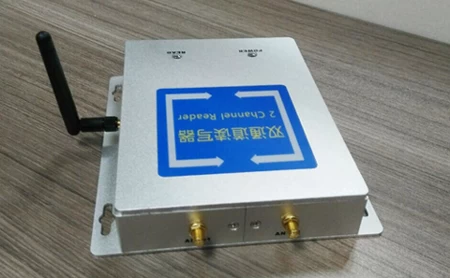

R2000 UHF 2 Channel Reader

JT-9230 is a two port EPC Class 1 Gen2 UHF RFID fixed reader. Design with aluminum housing, supports RS485,RS232 and Wiegand 26/34 communication interface. It has small size and easily installation.



R2000 UHF 2 Channel Reader

Feature

◆ Built in RFID module of INDY R2000

◆ Multiple tags reading ability

◆ The material of case is aluminum alloy

◆ Provide various communication interface, such as RS232, TCP/IP.

◆ Provide DEMO for register and kill tag


Specification

Performance Parameters - R2000 UHF 2 Channel Reader

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C (EPC C1 GEN2)

RF connector

2 SMA outer female connector

Chip

Impinj  R2000

Radio frequency power

0~30dBm(Adjustable)

Communication port

RS232,TCP/IP or RS232,WIFI

Software & SDK

DEMO and C#, VC, Java

Tag handling volume

0-200 tags

Storage space

1M or 8M Flash save without power supply(customized)

Real-time clock

without power supply, real-time clock save and working(customized)

Frequency modulation

hopping or fixed frequency

Input/output port

One-way relay output, One-way I/O input

RSSI

RSSI numerical test

Physical Parameters

Power

7.5~12V/3A

Working temperature

-20℃~+75℃

Storage temperature

-40℃~+85℃

Item size

180x131x27mm

Package size

240x210x140mm

Net weight

500g

Shell material

Aluminum Alloy



Product Tags 4 channel uhf reader rfid          uhf rfid readers          rfid reader uhf          uhf rfid reader          rfid uhf readers          rfid uhf reader          reader rfid uhf          uhf rfid long range channel reader          4 channel uhf reader rfid manufacturers
