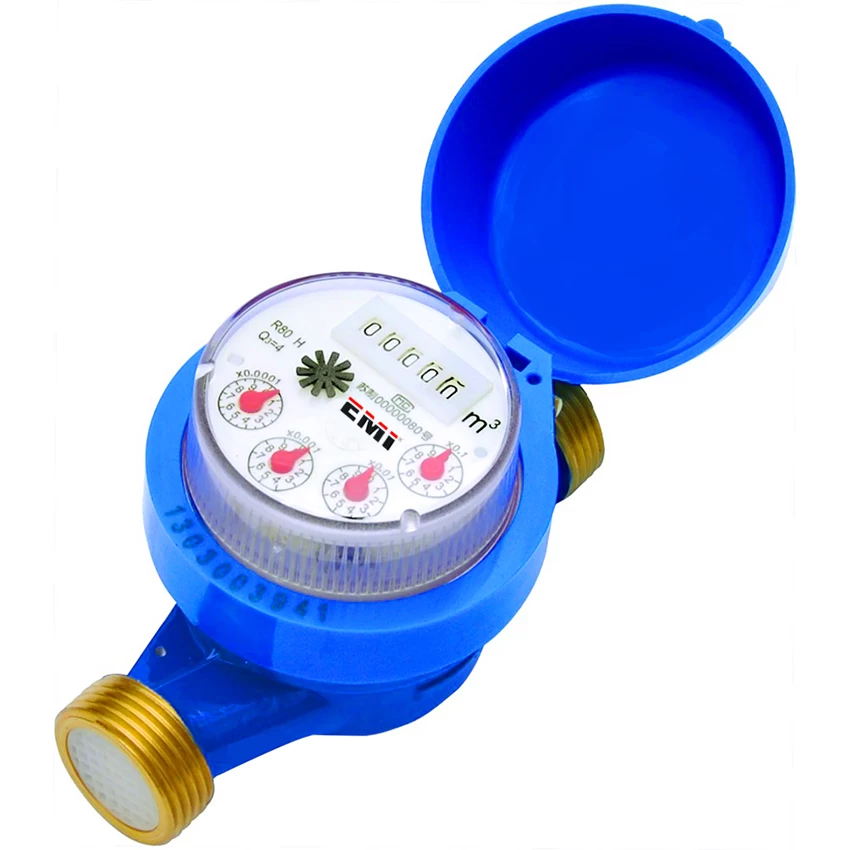

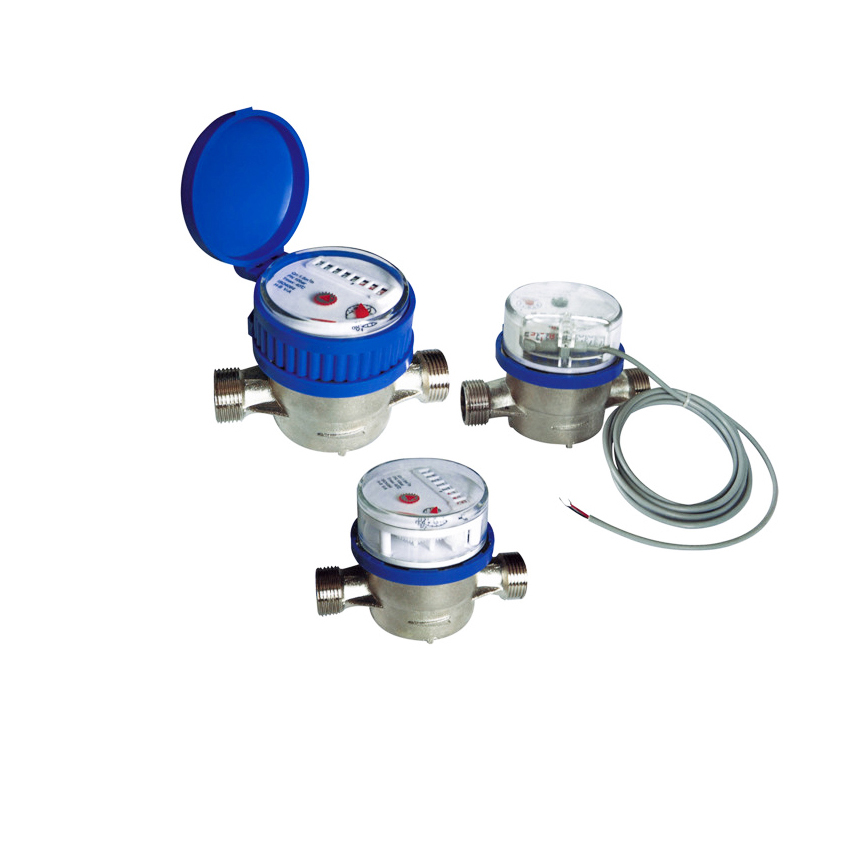

R80 Single Jet Dry Type Brass Body Water Meters

The single jet water meter is mainly used for secondary instruments in residential and small industrial applications, or for beverage machinery and similar purposes. Its simple design makes it a competitive price and highly reliable design product. The working principle is characterized by a single directional flow to the turbine installed in the radial position of the main body of the metering device. Turbine rotation transmits motion to the magnetically coupled display mechanism, so that the measurement of water flow through the meter can be recorded and  totalised,, and then output as a scaled pulse when needed.



Description:


The water enters the meter from the inlet of the meter body and impacts the vane wheel at the tip of the vane blades to make it rotate. The water flows out from the outlet of the body. The rotation of the vane wheel (proportional to the velocity of water flow) is transmitted directly to the central gear in the vacuum-sealed register by the magnetic coupling. The sealed register totalizes and indicates the water volume passing through the meter.

Application: Household|Resident|Small flow
Feature: Horizontal|Magnetic|Anti Magnetic
Material: Brass
Product Name: Single Jet Water Meter
Standard: ISO4064|ClassB
Type: Single Jet
Water Type: Hot|Cold
Type name:  Single-jet brass water meter
Model No: LXSC-15D ~LXSC-25D
Standard : ISO 4064 Class B
Material: Brass
Feature :  Dry type, anti-magnetic

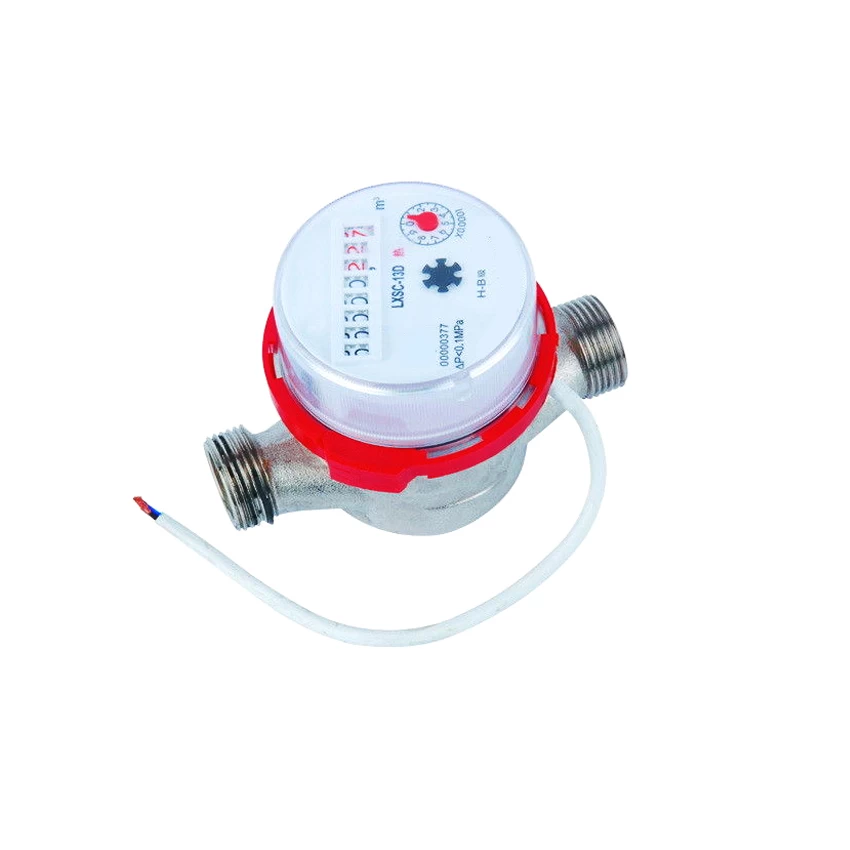

Remote reading Opional



Features:

Dry register

Small, light

For hot or cold water

High accuracy

ISO4064:2005 R80



Working condition:

--Water temperature:   0.1℃~50℃ ( 0.1℃~90℃ for hot water meter)

--Water pressure   : ≤1.0Mpa (PN:1.6Mpa/16bar)





Maximum Permissible Error:

(1) From minimum flow-rate(qmin/q1) inclusive to transitional flow-rate(qt/q2),exclusive is ±5%

(2) From transitional flow-rate(qt/q2)inclusive to overload flow1rate(qs/q4)exclusive is ±2% (Hot water meter:±3%)
