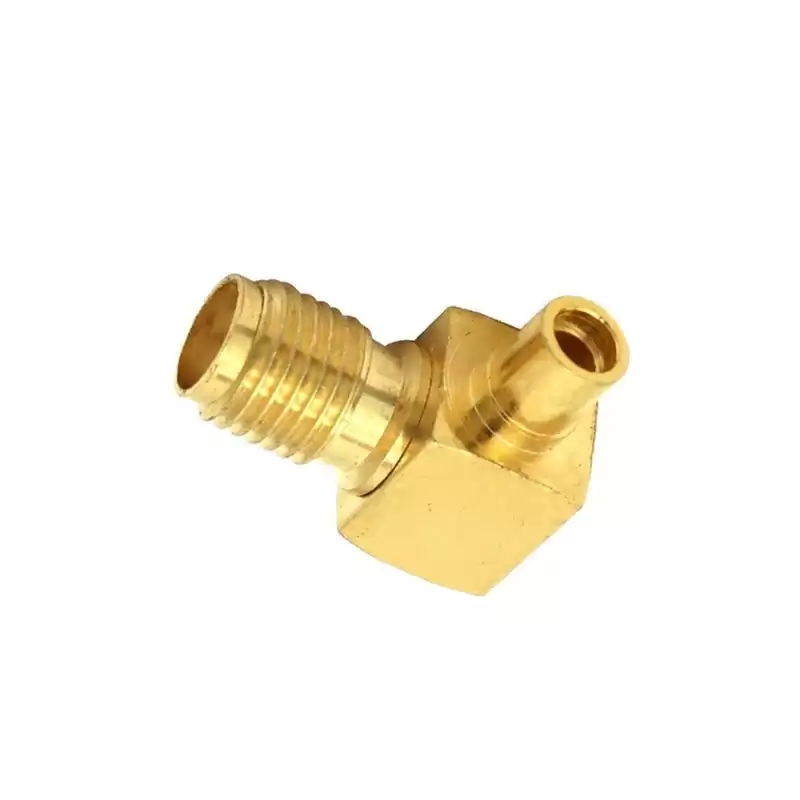

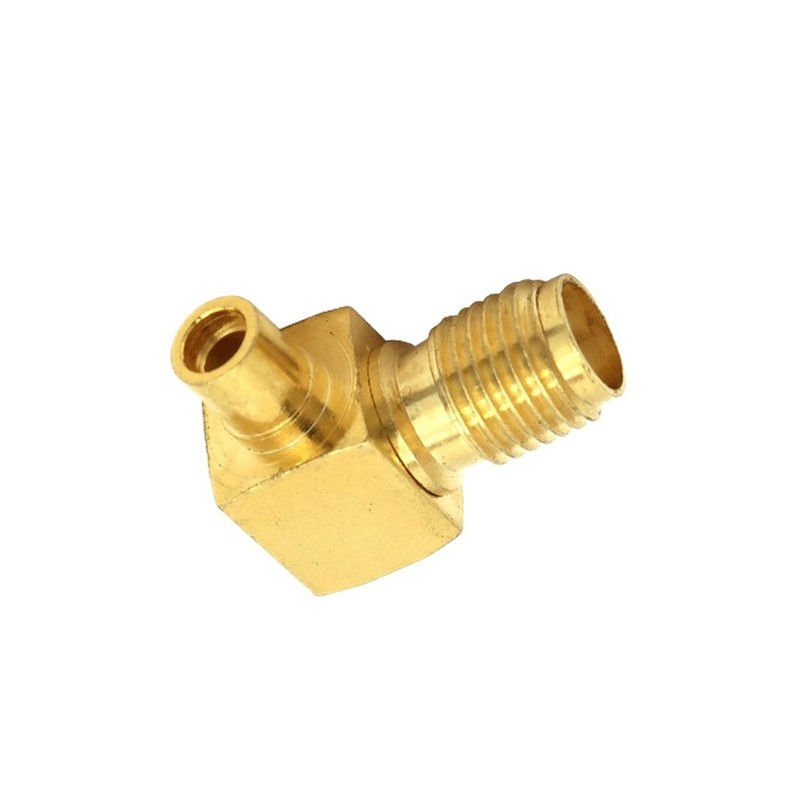

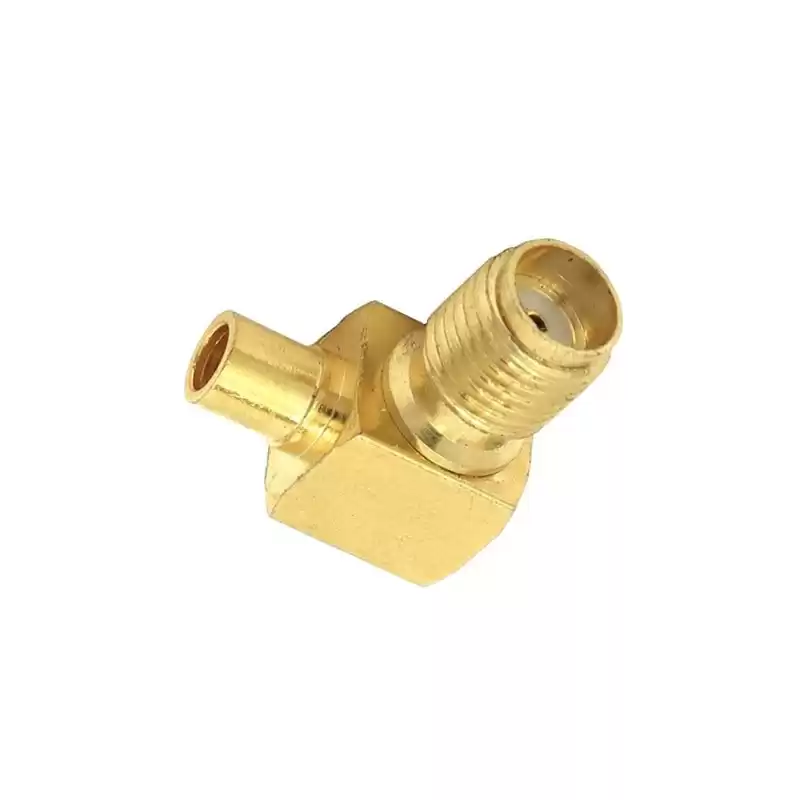

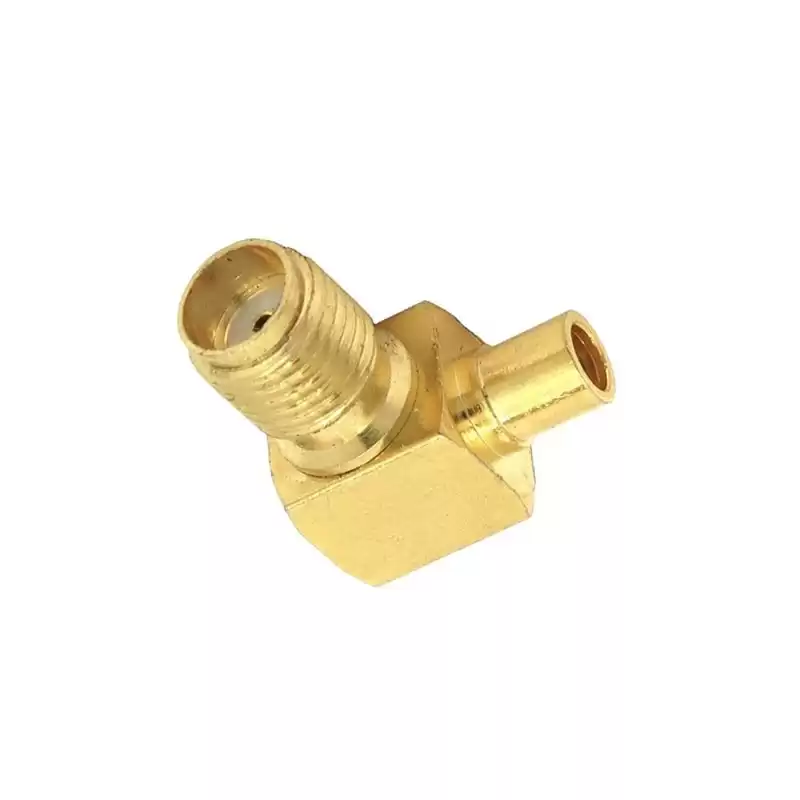

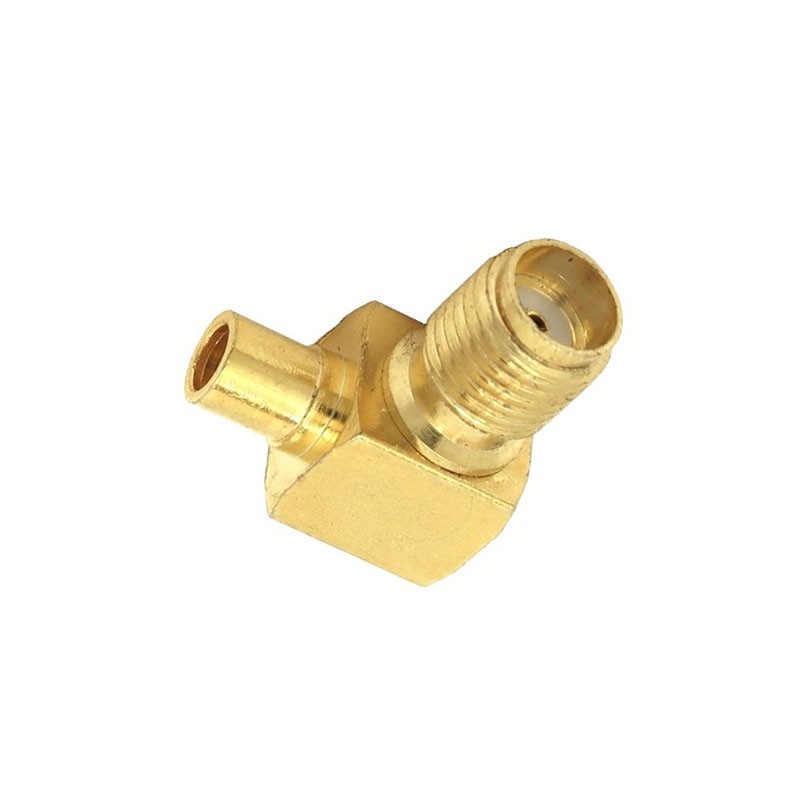

RA MMCX Female Jack to SMA Female RF Coaxial Adapter
The MMCX Adapter has different MMCX to SMA adapter gender, that is a between series coaxial adapter, The MMCX to SMA adapters has jack to female, jack to male, plug to female or plug to male gender varieties. ROHO's MMCX to SMA adapters has straight or right angle body, This MMCX male to SMA plug adapter has a maximum frequency of 6GHz, and is a right angle body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
MMCX |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
NO |
| Orientation |
Right Angle |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antenna Installations
- Laboratory Use
- Land Mobile Radio & Other Communication Systems
- General Purpose
- Cellular & Wi-Fi Systems
