RA TNC Male to RA N Male Connector with LMR195 Cable Assembly

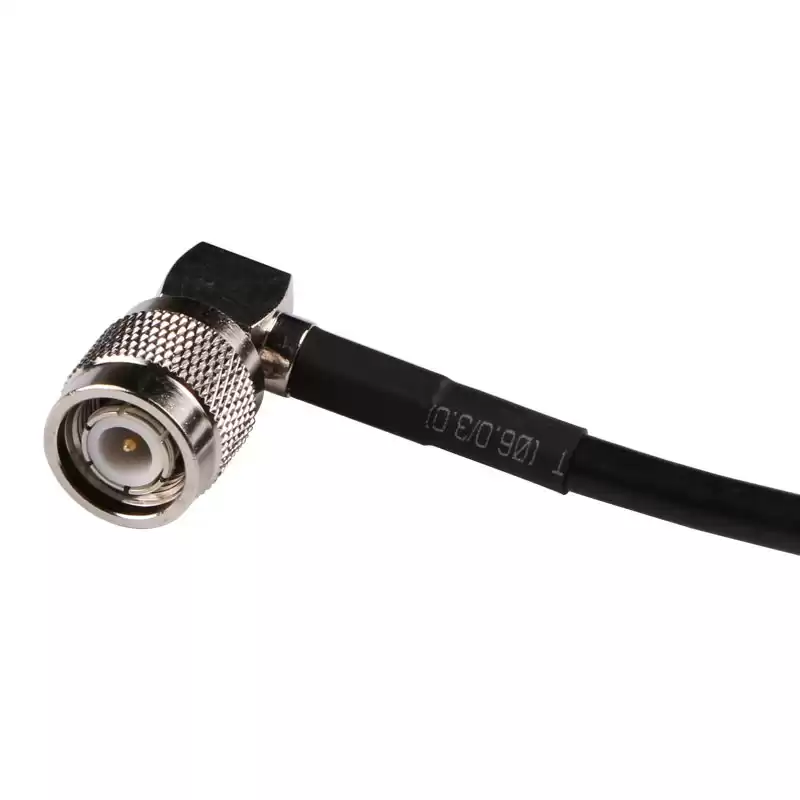

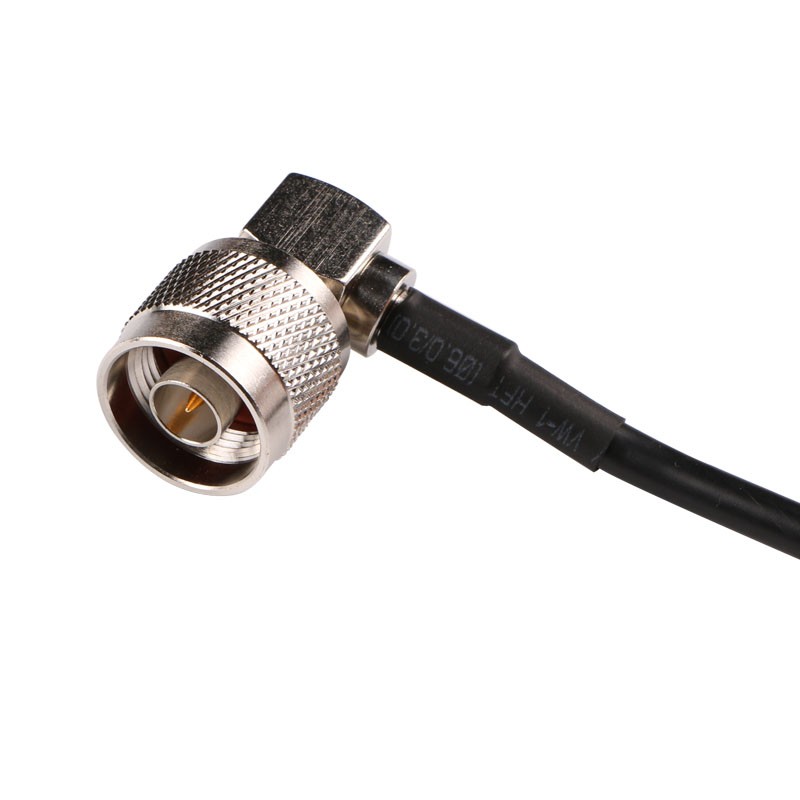

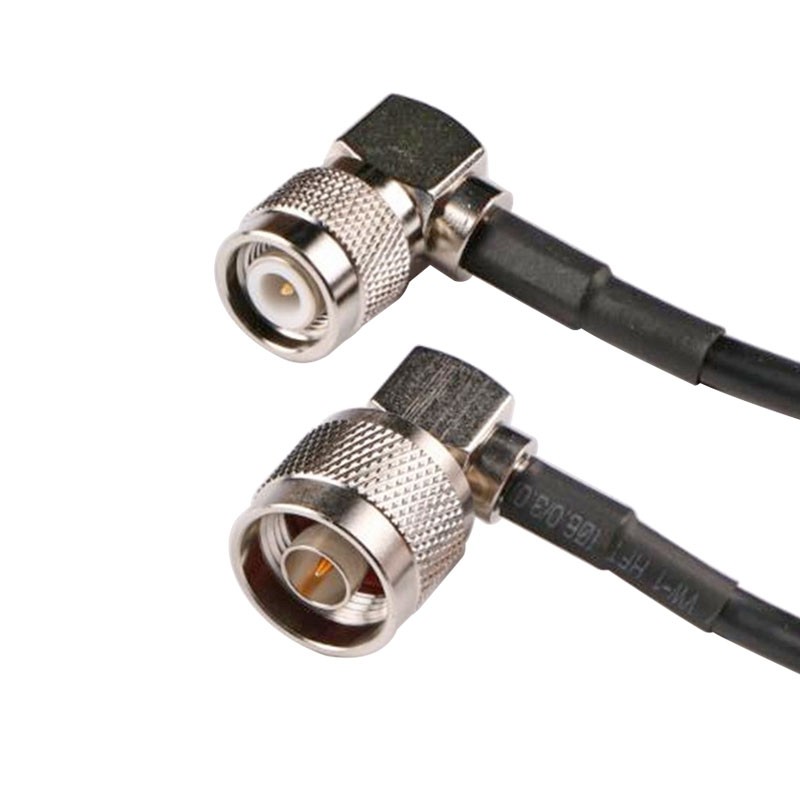

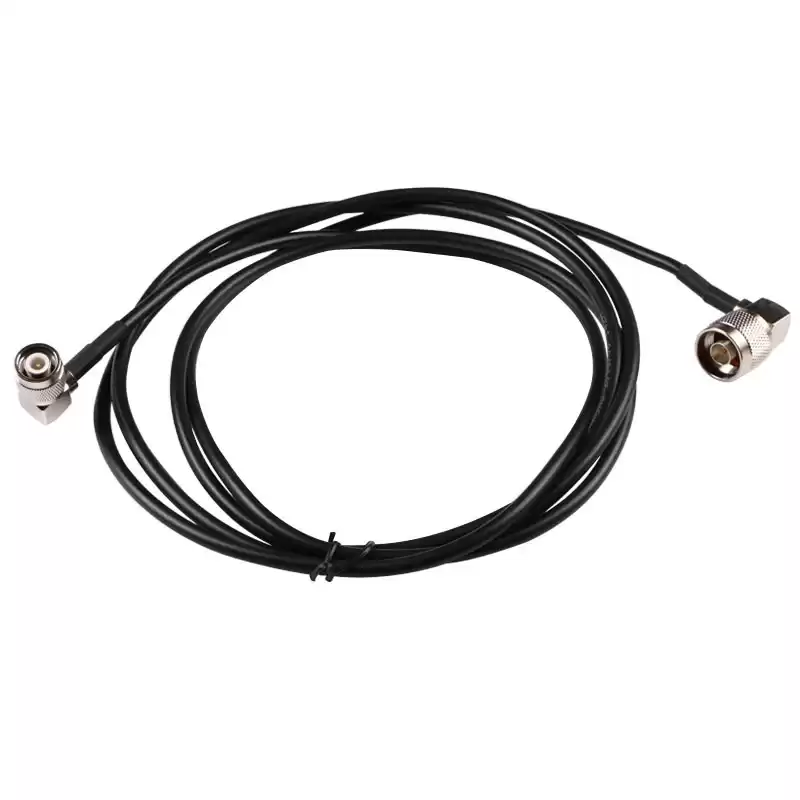

The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to N cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This TNC male to N male cable assembly uses a 50ohm right angle TNC for connector 1 and a 50ohm right angle N for connector 2, Cable is a 50ohm flexible LMR195.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
TNC |
| Connector 1 Style |
RA Male |
| Cable Type |
LMR195 |
| Connector 2 Series |
N |
| Connector 2 Style |
RA Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Automated Test Systems
- Airborne Systems
- Phased Arrays
- EW and Countermeasures
