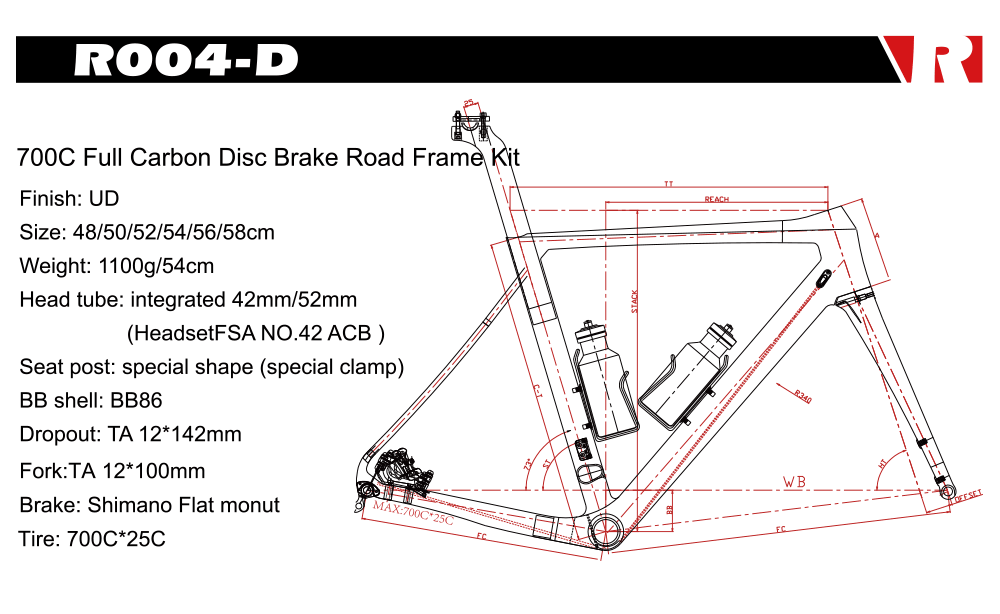

R004-D
700C Full Carbon Disc Brake Road Frame
|
R004-D
|
SIZE
|
S
|
A
|
Offset
|
TT
|
HT
|
ST
|
BB
|
RC
|
WB
|
FC
|
RD
|
FD
|
POST
|
STACK
|
PEACH
|
H/T INSERT
|
BB INSERT
|
|
48
|
480
|
125
|
45°
|
515
|
71.3
|
74.8
|
69
|
408
|
976.4
|
584.4
|
Inner
|
Inner
|
Special
|
521.5
|
373.6
|
FSA
NO:42
ACB
|
BB86
|
|
50
|
500
|
135
|
45°
|
525
|
72
|
74.3
|
69
|
408
|
975.7
|
577.7
|
533.5
|
375.4
|
|
52
|
520
|
145
|
45°
|
535
|
72
|
73.5
|
70
|
408
|
977.3
|
579.4
|
544
|
377.9
|
54
|
540
|
160
|
45°
|
550
|
72
|
73
|
70
|
408
|
984.5
|
586.6
|
559.3
|
379
|
|
56
|
560
|
170
|
45°
|
560
|
72
|
72.5
|
70
|
408
|
989.2
|
591.2
|
568.9
|
380.6
|
|
58
|
580
|
190
|
45°
|
570
|
73
|
72.5
|
70
|
408
|
992.1
|
594.1
|
590.5
|
383.8
|

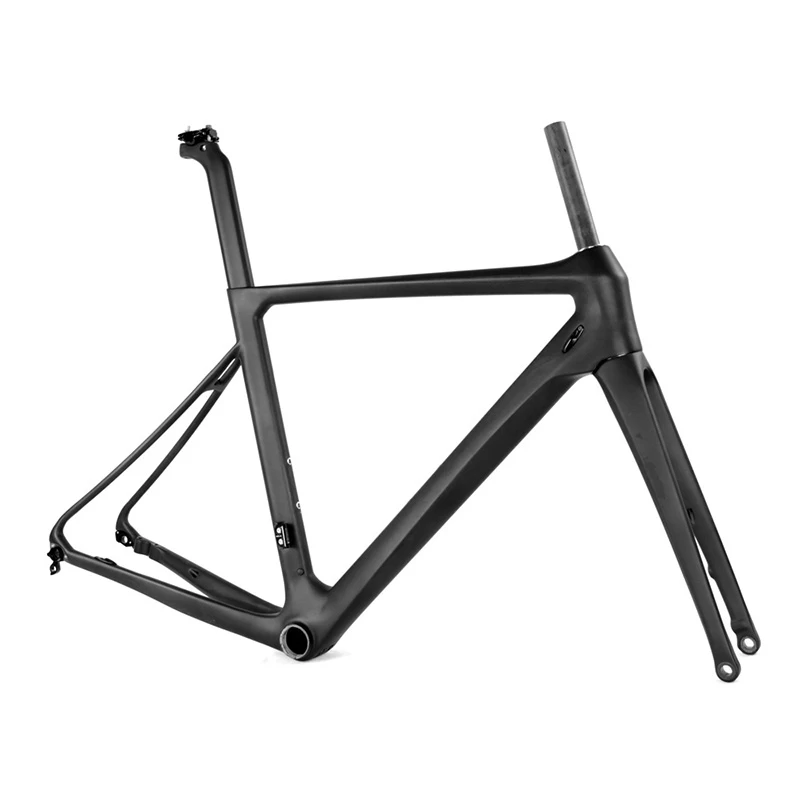

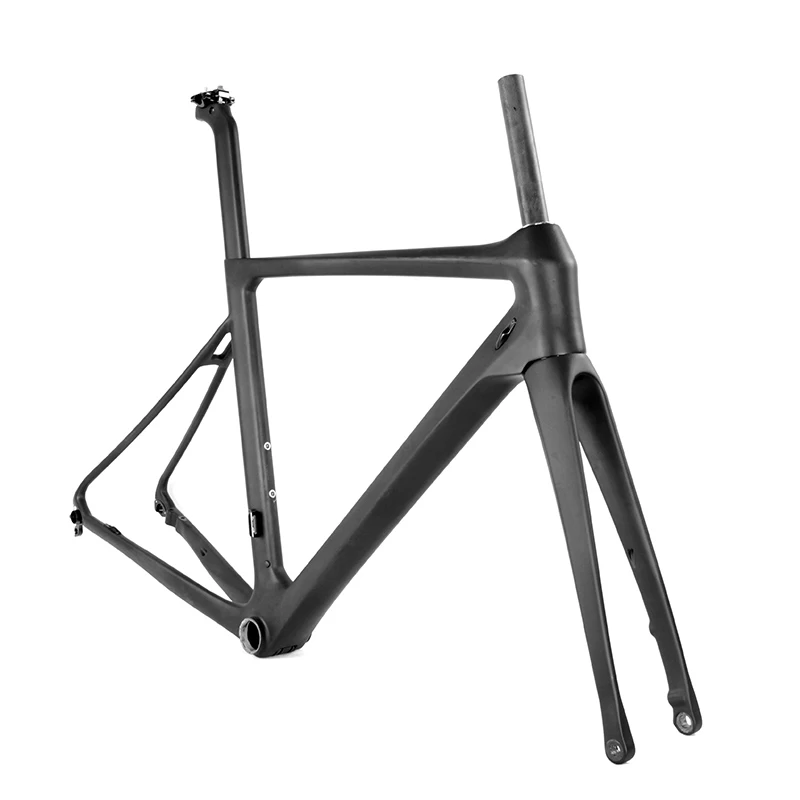

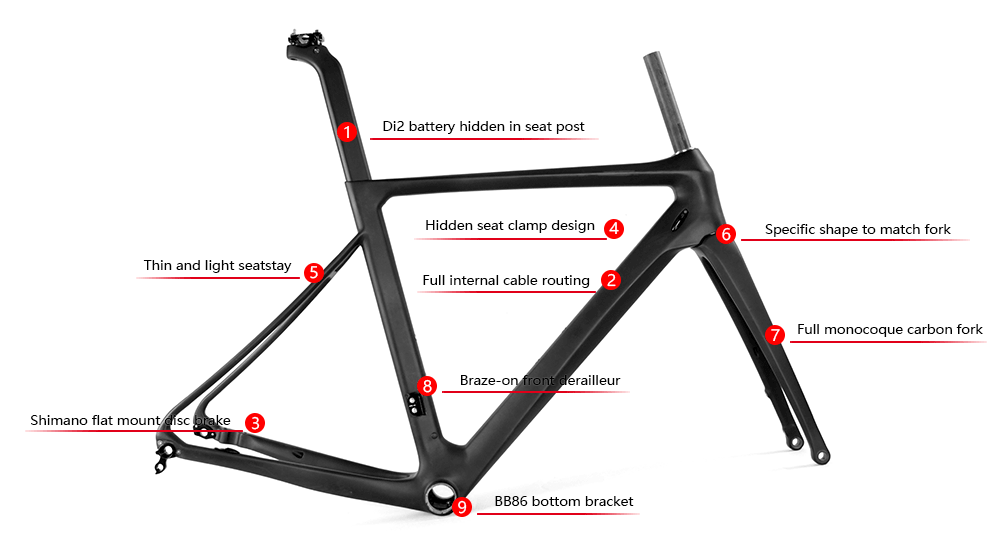

NEW Disc Brake Carbon Road Frame
|
Frame
|
Best flat mount disc brake road frameset
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
48, 50, 52, 54, 56, 58
|
|
Fork
|
Specify carbon fork
|
|
Headtube
|
Straight 1 1/2"head tube
|
|
Weight
|
1100g/54cm
|
|
Seatpost
|
specify offset seatpost
|
|
Bottom bracket
|
Press fit BB86
|
|
Max tire clearance
|
700*25c
|
|
Brake mount type
|
Flat mount Disc brake 140mm
|
Dropout
|
Front 12*100mm thru axle Rear 12*142mm thru axle
|
|
Groupset
|
Machanical and Di2 compatible
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
