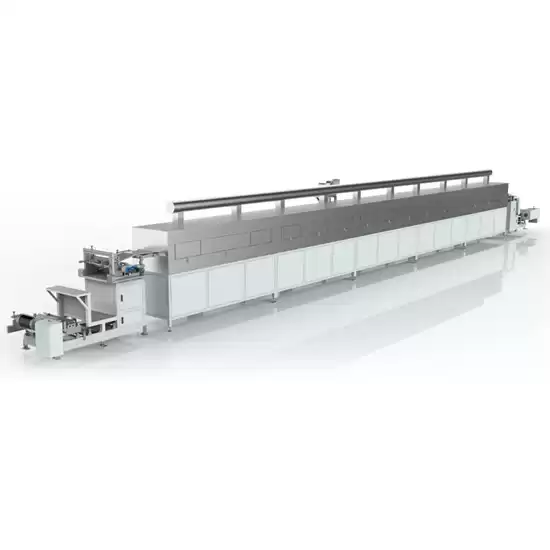

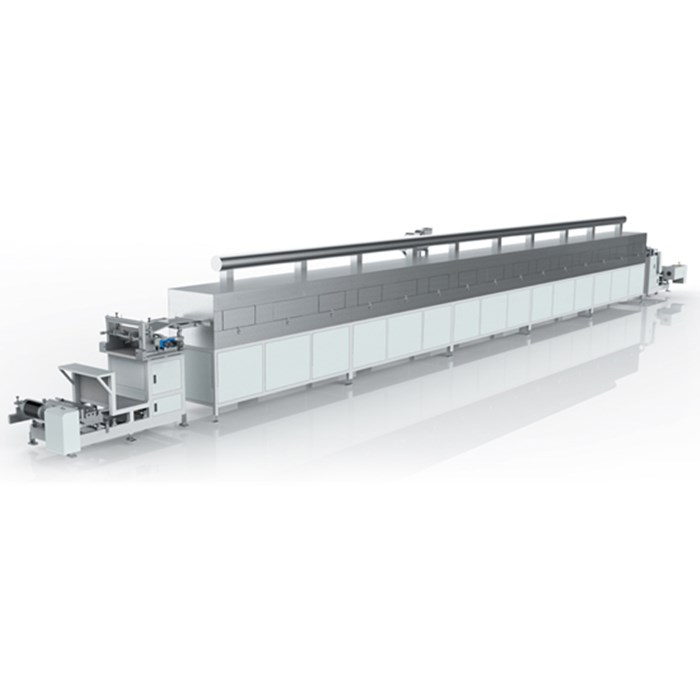

Rack Gap Coater Machine for Battery Production Line

Advantage



1.       Steel roller, rubber roller, scraper installation structure is simple, easy to maintain and maintain.

2.       Control system is easy to operate, the touch screen interface is simple and easy to understand.

3.       Stable performance and high economy.

No.	Project	Technical Parameters
1	Process adaptability	Lithium battery pole piece coating
2	Coating method	Continuous coating / gap coating
3	Rewinding volume configuration	Single-axis manual change
4	Heating method	Electric heating / steam heating / oil heating
5	Oven configuration	Passive over roller horizontal distribution, length optional
6	Mechanical speed	Coating speed +10%
7	Coating speed	3~10m/min (depending on the model)
8	Coating width	300mm、400mm、500mm、650mm
9	Coating thickness	60~150um
10	Thickness accuracy	±0.5μm (when the coating thickness is greater than 1um)
