RACOR Fuel Water Separator Assembly 751000FHX

The RACOR 751000FHX replace filter element include 2020SM- OR,2020TM- OR,2020PM- OR.


Part Number:751000FHX


Part Name:Fuel Water Separator Assembly


Brand:RACOR



RACOR Fuel Water Separator Assembly 751000FHX

Fuel Water Separator Assembly 751000FHX Parameter:

Part Number

751000FHX

Parts Name

Fuel Water Separator Assembly

Brand

RACOR


Fuel Water Separator Assembly 751000FHX Specifications:

Basic Models

751000FHX

Maximum Flow Rate:
(one unit online)
(two units online)
(three units online)

180 GPH (681 LPH)
360 GPH (1363 LPH)
N/A

Port Size

7/8”- 14 UNF (SAE J514 male threads)

Min. Service Clearance

(above assembly)

(below assembly)

10.0 in. (25.4 cm)
2.0 in. (5.1 cm)

Replacement Element:
(2 micron)
(10 micron)
(30 micron)

(2 Per Assembly)
2020SM- OR
2020TM- OR
2020PM- OR

Height

22.0 in. (55.9 cm)

Depth

11.0 in. (27.9 cm)

Width

18.8 in. (47.8 cm)

Weight (dry)

30.0 lb (13.6 kg)

Clean Pressure Drop

3.7 PSI (25.5 kPa)

Maximum Pressure1

15 PSI (1 bar)

Water In Bowl Capacity
(per bowl)

10.3 oz (305 ml)

Available Options:2

(water detection kit)

(12 or 24 vdc heater)

(vacuum gauge)

Yes

Yes

Yes

Operating Temperature

--40oto +255oF /-40oto +121oC



Fuel Water Separator Assembly 751000FHX Picture:

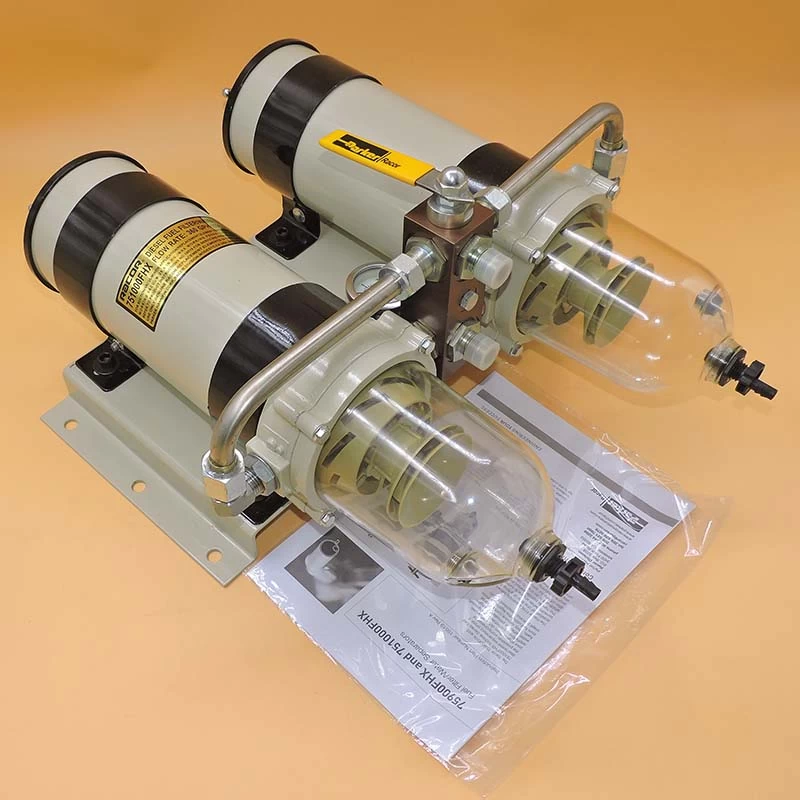

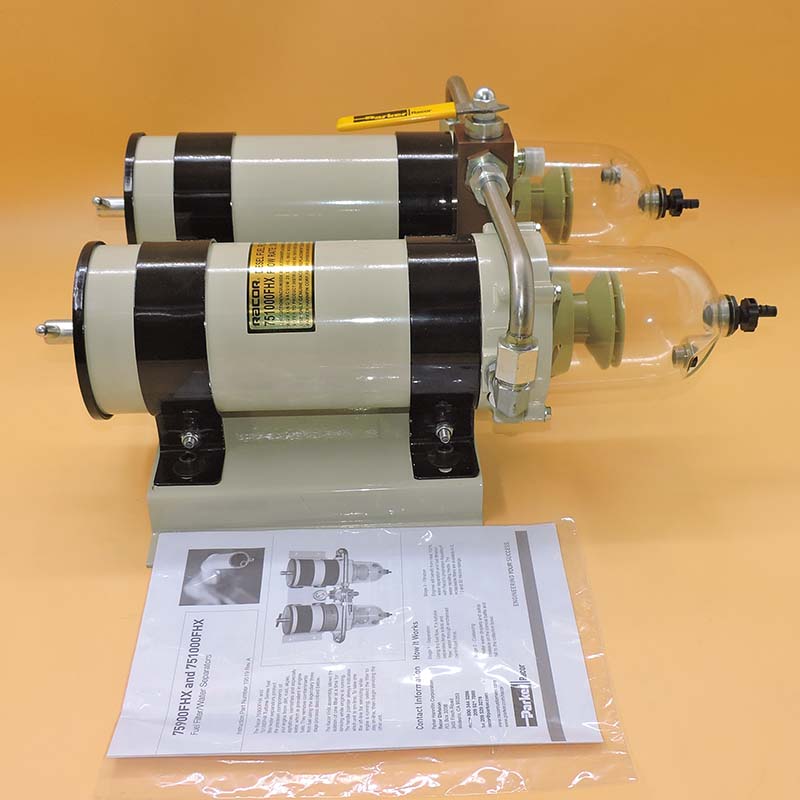

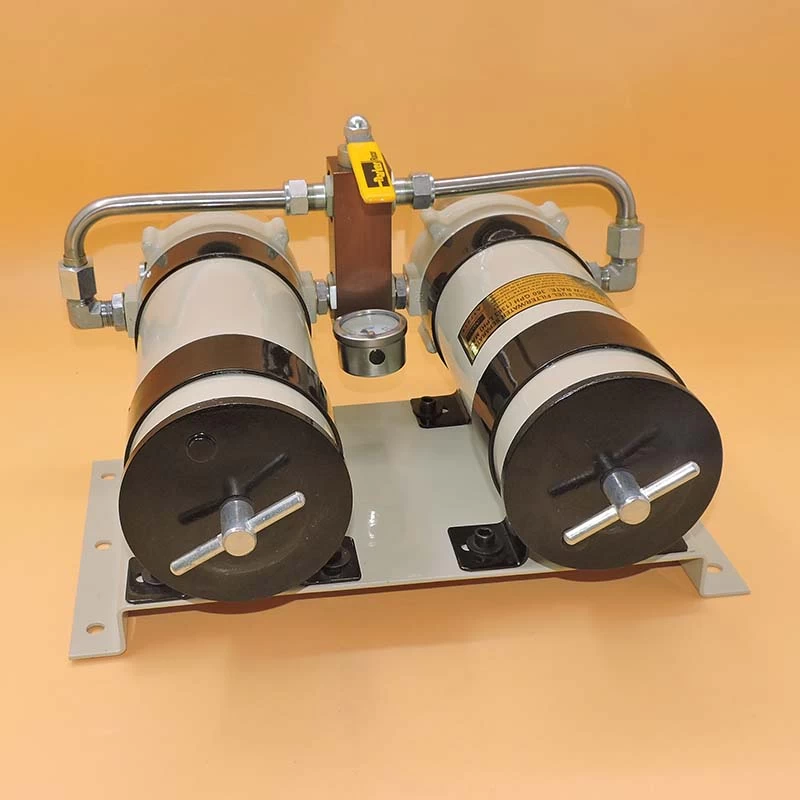

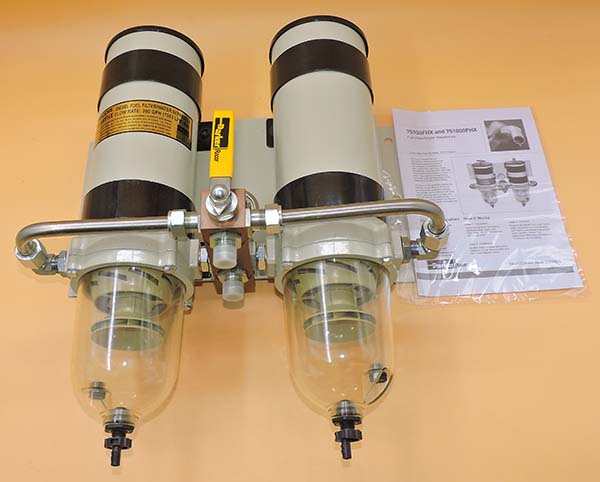

RACOR 751000FHX


RACOR 751000FHX packing
