Description

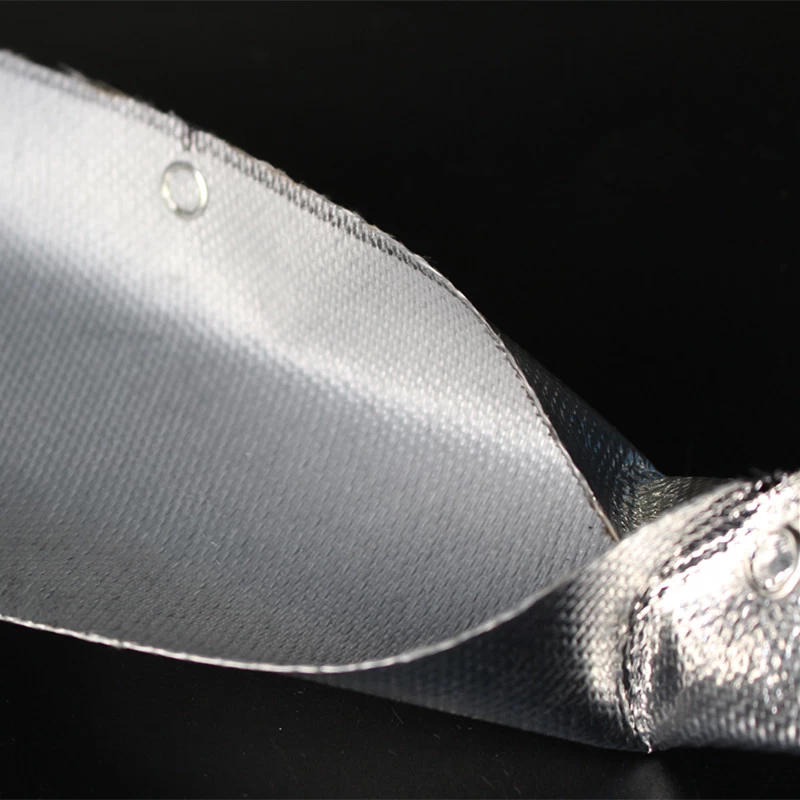

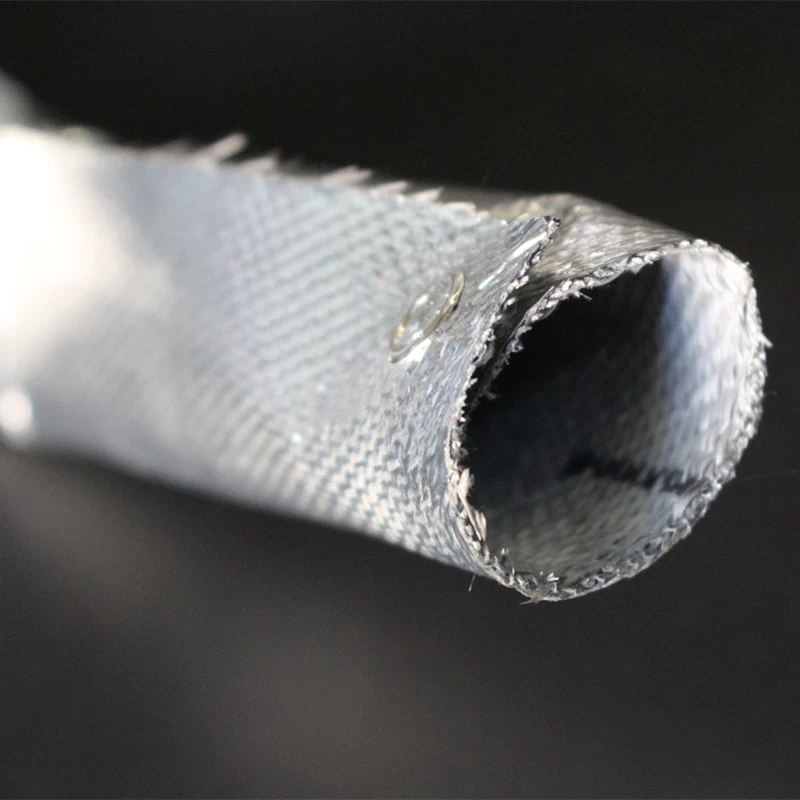

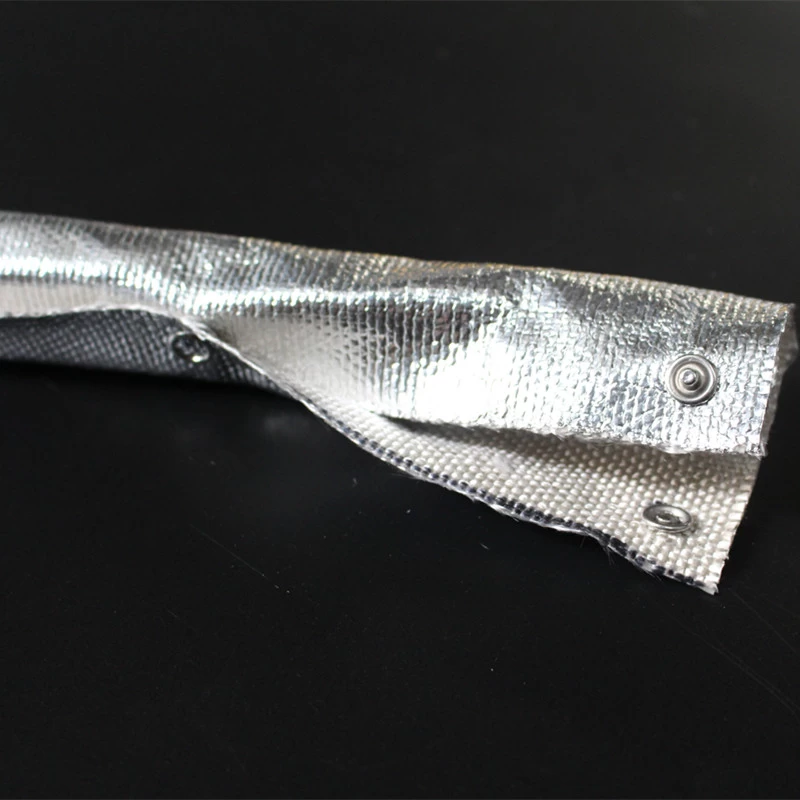

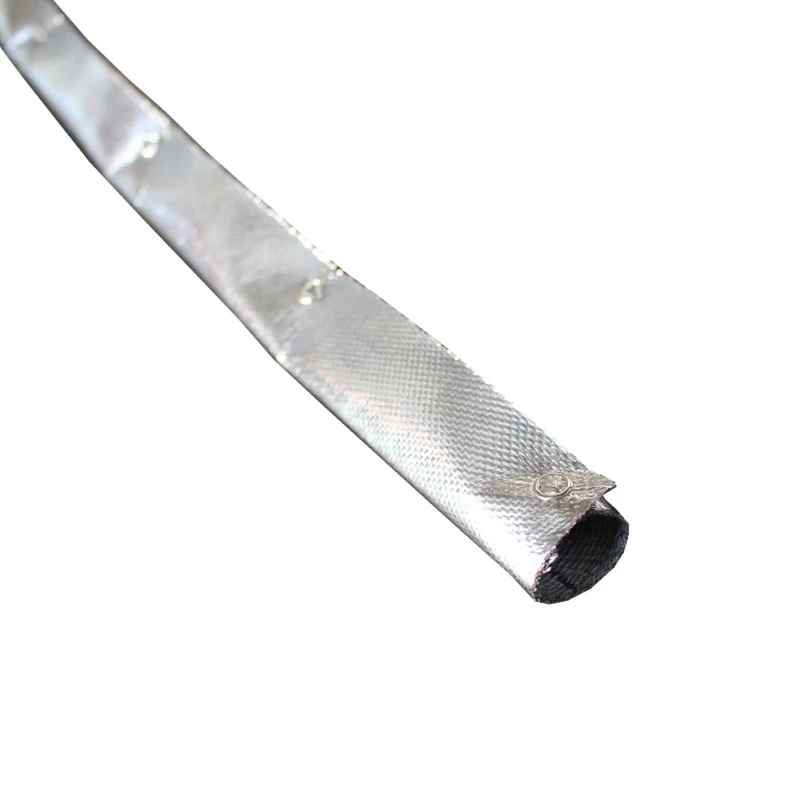

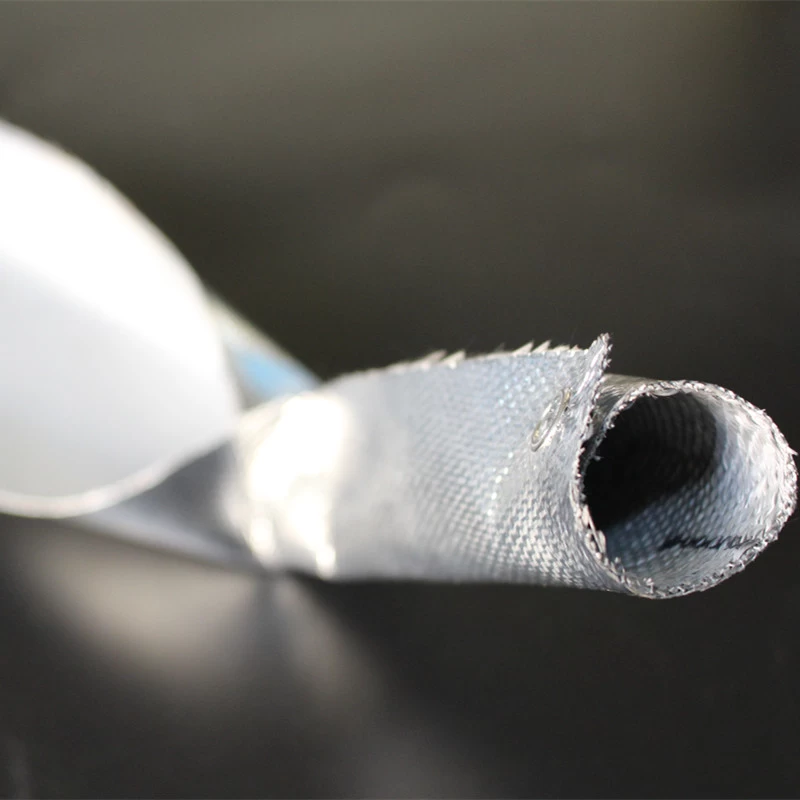

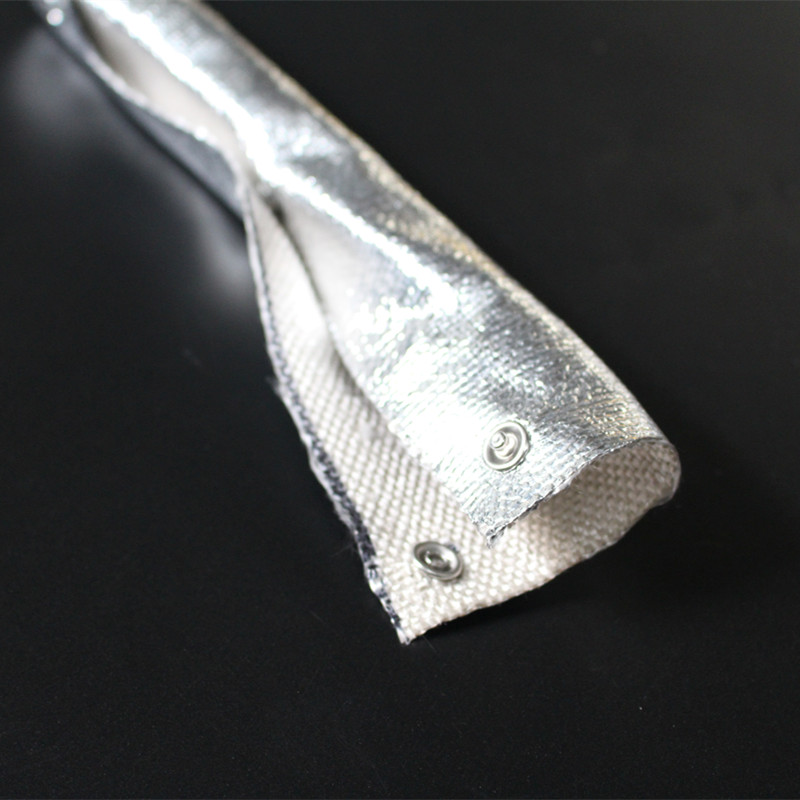

SALFS Radiant Heat Protection Aluminum Fiberglass Sleeve with Snap is a aluminum coated fiberglass heat reflective sleeve with metal snap, it is easy to install and reflects more then 95% radiant heat. This sleeve is easily wrapped over the wires, cables and hoses, then closed with the snap.
Features
This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
Application

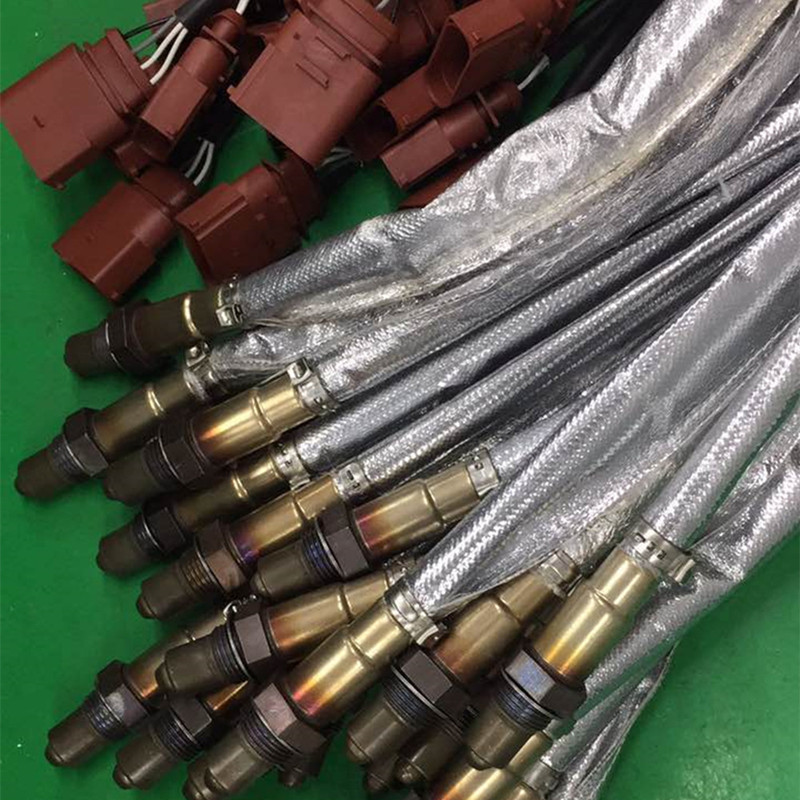

It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Specifications
|
DATASHEET
|
|
Part Number
|
Normal Inside diameter
|
Meter for spool
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
SALFS-13
|
1/2
|
13
|
-8
|
20
|
|
SALFS-16
|
5/8
|
16
|
-10
|
20
|
|
SALFS-19
|
3/4
|
19
|
-12
|
20
|
|
SALFS-22
|
7/8
|
22
|
-14
|
20
|
|
SALFS-25
|
1
|
25
|
-16
|
20
|
|
SALFS-29
|
1 1/8
|
29
|
-18
|
20
|
|
SALFS-32
|
1 1/4
|
32
|
-20
|
20
|
|
SALFS-35
|
1 3/8
|
35
|
-22
|
20
|
|
SALFS-38
|
1 1/2
|
38
|
-24
|
20
|
|
SALFS-41
|
1 5/8
|
41
|
-26
|
20
|
|
SALFS-44
|
1 3/4
|
44
|
-28
|
20
|
|
SALFS-48
|
1 7/8
|
48
|
-30
|
20
|
|
SALFS-51
|
2
|
51
|
-32
|
20
|
|
SALFS-57
|
2 1/4
|
57
|
36
|
20
|
|
SALFS-60
|
2 2/5
|
60
|
-38
|
20
|
|
SALFS-64
|
2 1/2
|
64
|
-40
|
20
|
|
SALFS-67
|
2 5/8
|
67
|
-42
|
20
|
|
SALFS-70
|
2 3/4
|
70
|
-44
|
20
|
|
SALFS-73
|
2 7/8
|
73
|
-46
|
20
|
|
SALFS-76
|
3
|
76
|
-48
|
20
|
|
SALFS-83
|
3 1/4
|
83
|
-52
|
20
|
|
SALFS-89
|
3 1/2
|
89
|
-56
|
20
|
|
SALFS-95
|
3 3/4
|
95
|
-60
|
20
|
|
SALFS-102
|
4
|
102
|
-64
|
20
|
|
Technical Datasheet
|
|
Material
|
Aluminum, fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Silver
|
|
Standard Thickness
|
0.8 mm
|
|
MOQ
|
50 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
Special size upon request.
