Railless metal sheet mounting system

The Railless metal sheet mounting system is light, small , cost-effective and easy to mount on trapezoidal metal sheet, allows for easy logistics.



Railless metal sheet mounting system

trapezoidal metal roof solar racking system suppliers

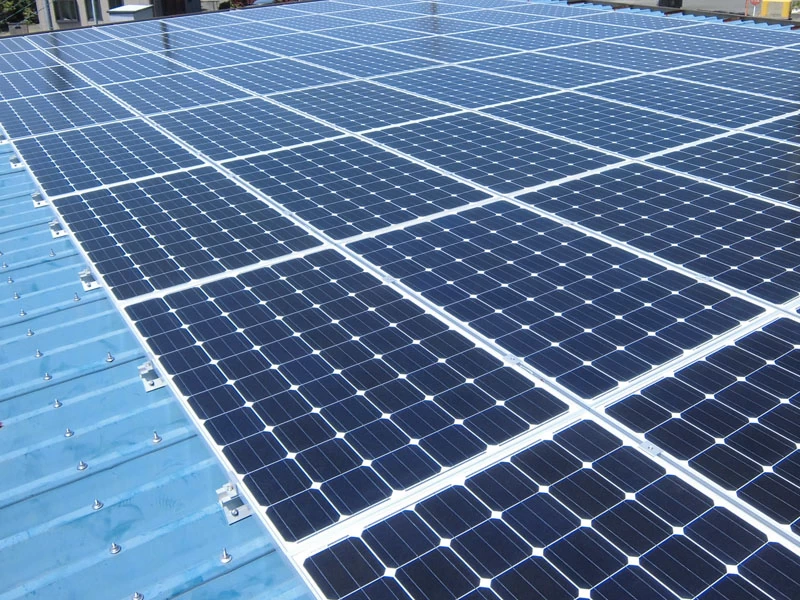

The Rail-free Solar Roof Mounting System facilitates the rapid mounting of framed PV modules on trapezoidal metal sheet roofs with minimum thickness 0.8mm, only four components are required to install the modules directly to the roof. A base mounting clip is 100mm or 140mm long, therefore easy to carry and attach to almost all trapezoidal and sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet.



1. The system contains only four components.
2. Rail-free facilitates the installations and saves time.
3. EPDM gaskets under attachments double protection from leaks.
4. Attachments mount directly to sheet metal thus eliminating the need for long rails.
5. Base mountings clip is 100mm or 140mm long, easy to attach on trapezoidal roofs.



Roof attachments for metal sheet roof mounting system, trapezoidal metal roof solar racking system suppliers

End clamp for metal sheet roof mounting system

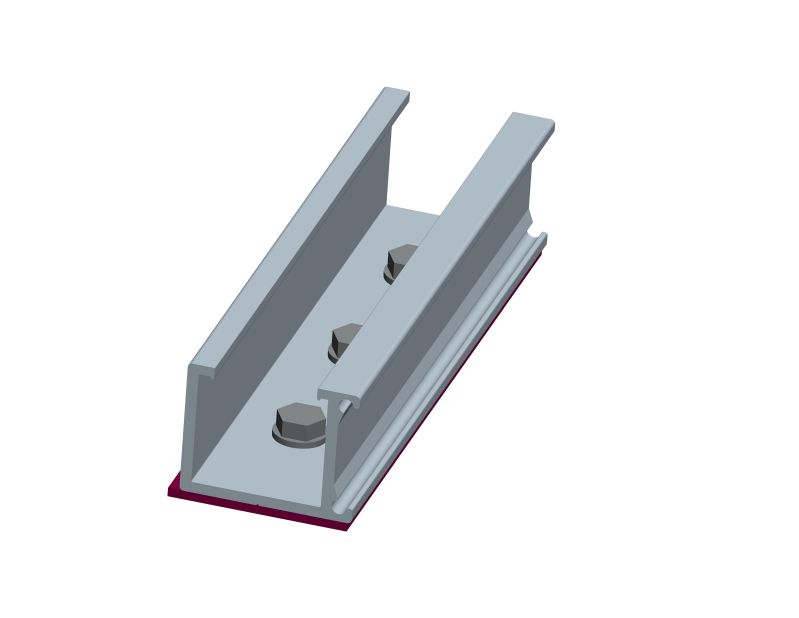

Roof attachment
End clamp

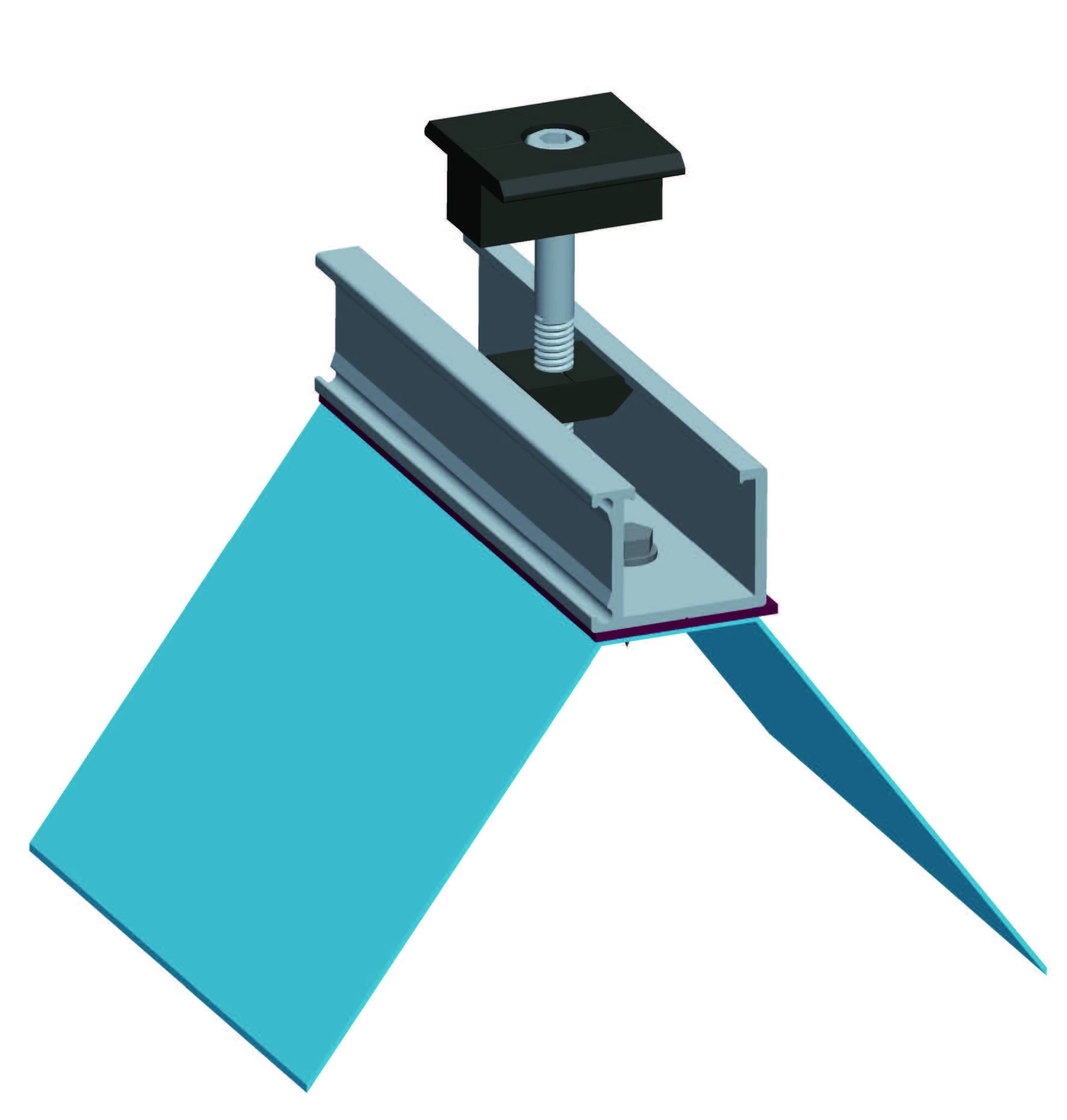

Inter clamp for metal sheet roof mounting system

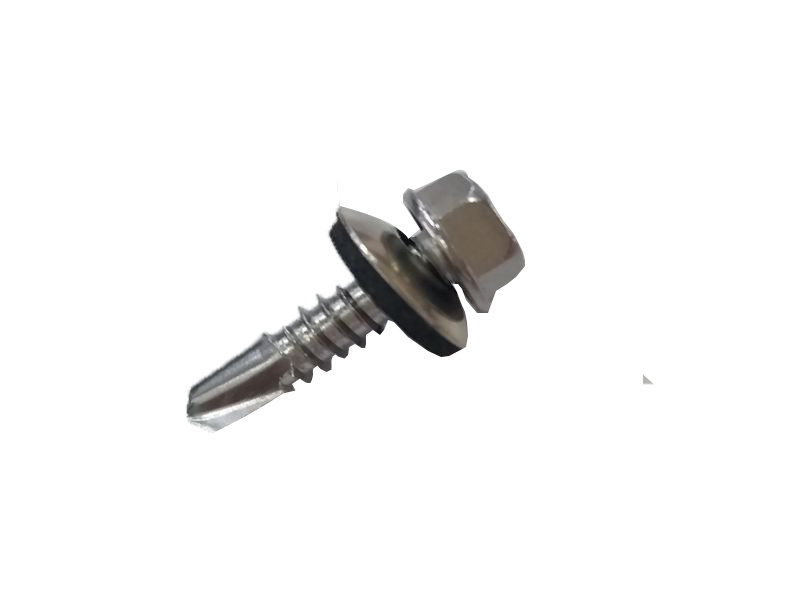

Self-piercing screws for metal sheet roof mounting system
Inter clamp
Self-piercing screws


    Brochure




Fast response


  Production cycle of extrusion die

       7 days

  Production cycle of sample

    7 days


  Lead time

          2 weeks after sample confirmation


 After-sale

                                    24h fast response
