Product Name: Railless roof mounting system
Product Description:
Yanglin Railless Roof Mounting is designed for trapezoid steel roofing sheet. It can be fixed on roof directly without Alu rail, the installation is easy and convenient.
Brief Introduce:
Install Site: Trapezoid tin roof

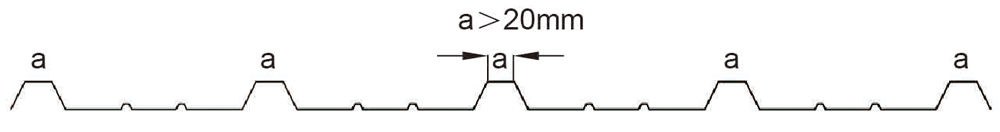

Require: “a“ should ≥20mm
Max Building Height: Up to 20m(≈65ft).
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.
Installation Guide:

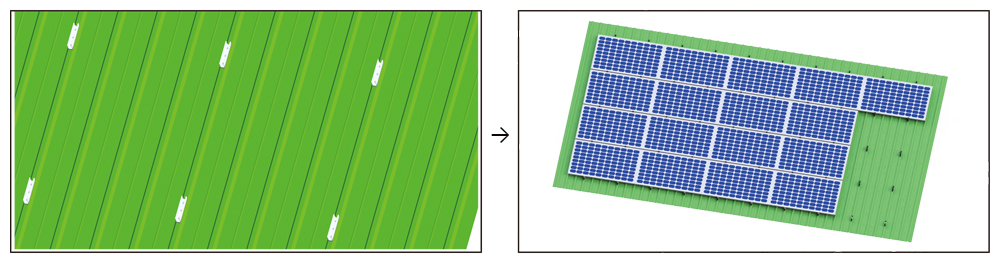

Step 1: Install railless clamp hook on roofing as per technical drawing.

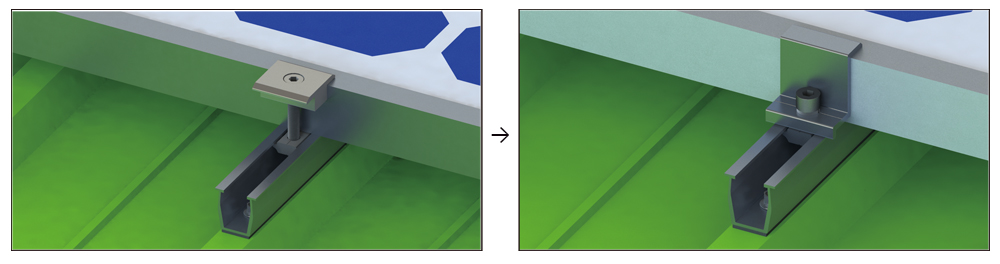

Step 2: Fix solar panel on railless clamp hook until finished.
Detail:

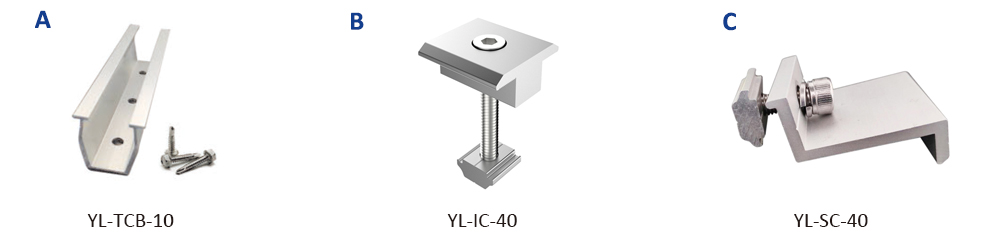

Components List:
A: Railless clamp hook
B: Mid clamp
C: End clamp

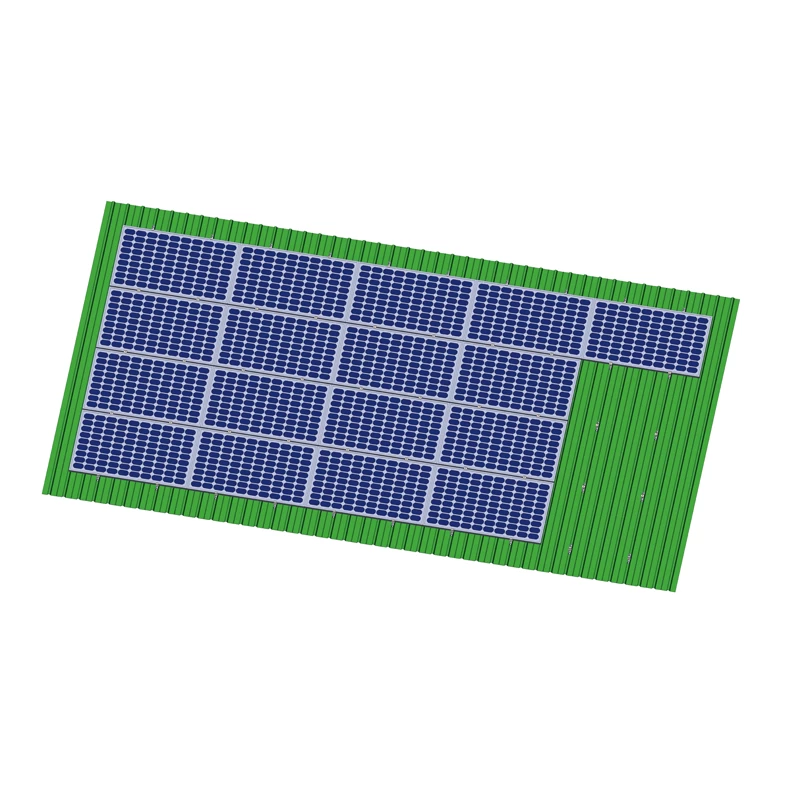

Project:
